JUKI IP-420 - Installing the Motor Cover; Managing the Cord

– 13 –

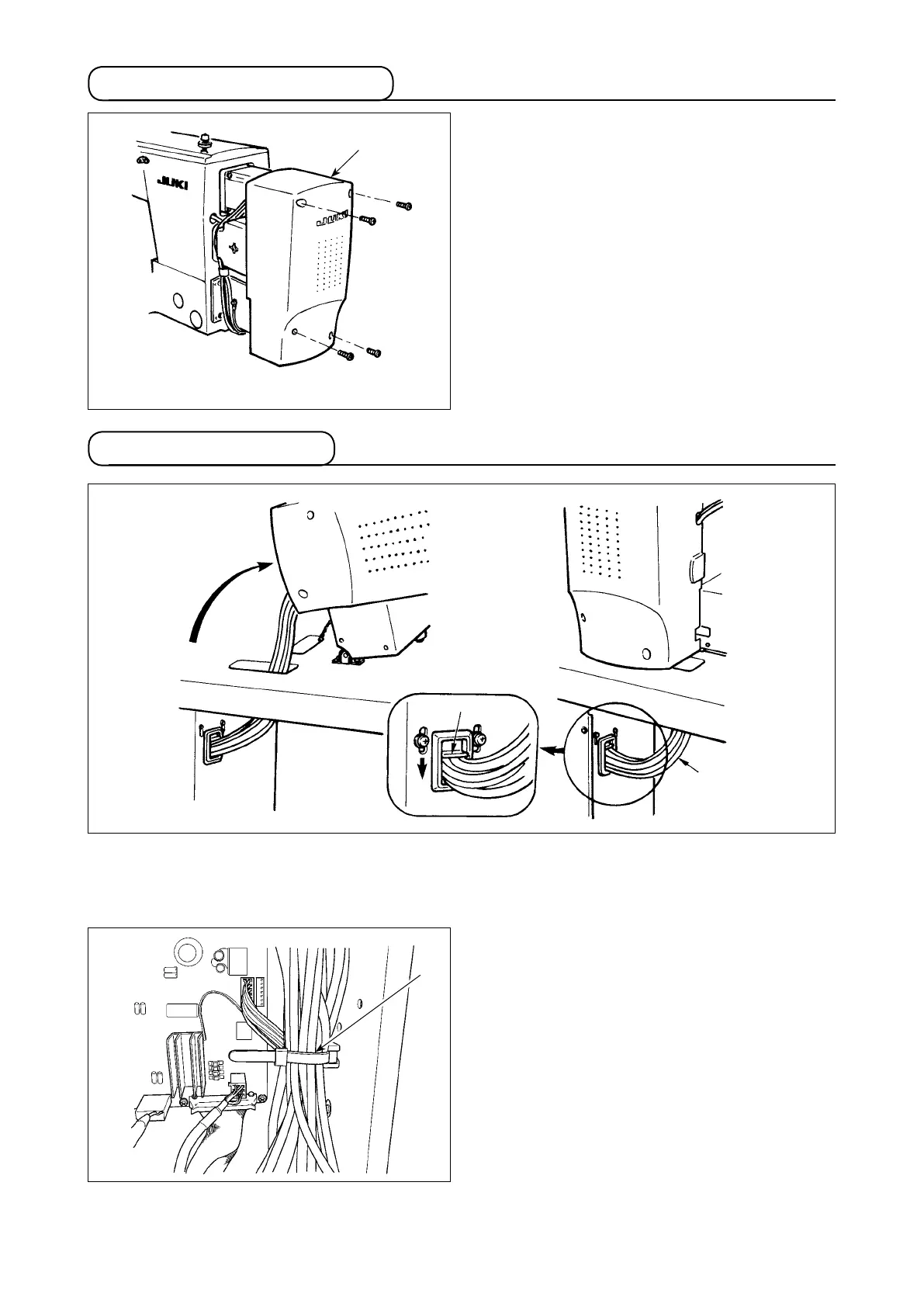

3-12. Installing the motor cover
1
Install motor cover
1
on the machine main unit
with screws supplied with the machine as acces-
sories.
3-13. Managing the cord
1
1) Fix the cords with cords setting plate
1
in the state that the cords are slack to such an extent that
stress is not applied to the cords even when the machine head is tilted as shown in the gure.
Slack
2) Secure the cable to be put into the POWER
BOX with an internal cable clip
2
.
2
