JUKI IP-420 - 5. Operation of the Sewing Machine; 5-1. Sewing

– 23 –

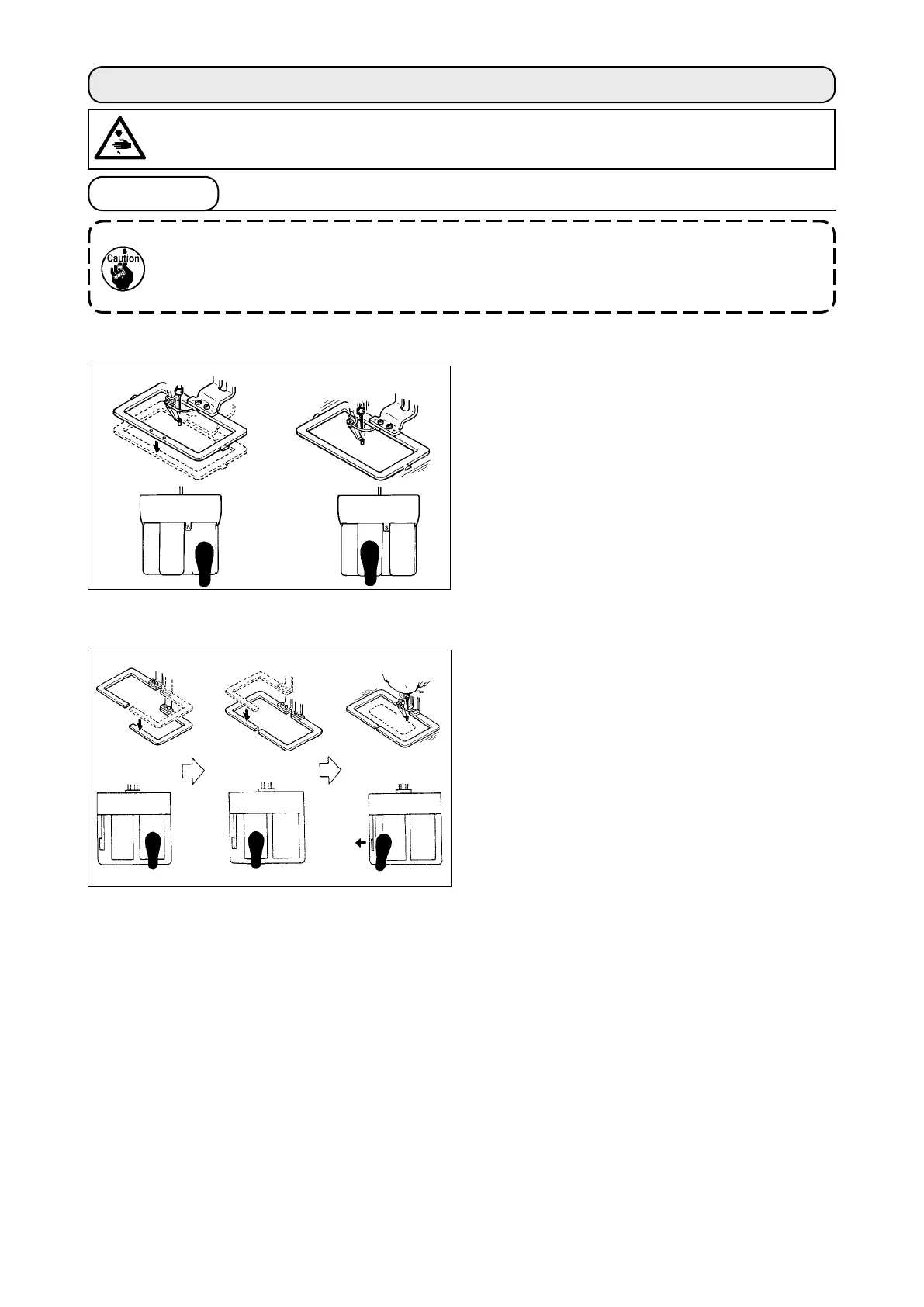

5. OPERATION OF THE SEWING MACHINE
5-1. Sewing
1) Set a workpiece on the sewing machine.
2) When pedal switch
A
is depressed, the right-
hand presser comes down, and when it is
depressed again, the presser goes up. When
pedal switch
B
is depressed, the left-hand
presser comes down, and when it is depressed
again, the presser goes up.
3) Depress the pedal switch
C
after the feeding
frame has come down and the sewing machine
will start sewing.
4) After the sewing machine completes sewing,
the needle point will return to the start point
and the feeding frame will go up.
1) Set a workpiece on the sewing machine.
2) Depress the pedal switch
A
, and the feeding
frame will come down. Depress it again, and
the feeding frame will go up.
3) Depress the pedal switch
B
after the feeding
frame has come down and the sewing machine
will start sewing.
4) After the sewing machine completes sewing,
the needle point will return to the start point
and the feeding frame will go up.
A
B
C
A
B
e
■
For the 2-pedal unit: S type (all areas)
■
For the 3-pedal unit: L type (1306)
WARNING :
Be extremely careful not to depress the PEDAL switch erroneously so as to prevent accidents due
to unintentional starting of the sewing machine.
Take care not to get your hands and ngers caught in the feeding frame or intermediate
presser when they are in operation.
In addition, be careful not to allow your hands and ngers to hit against the work clamp
since it moves at a high speed.
