– 129 –

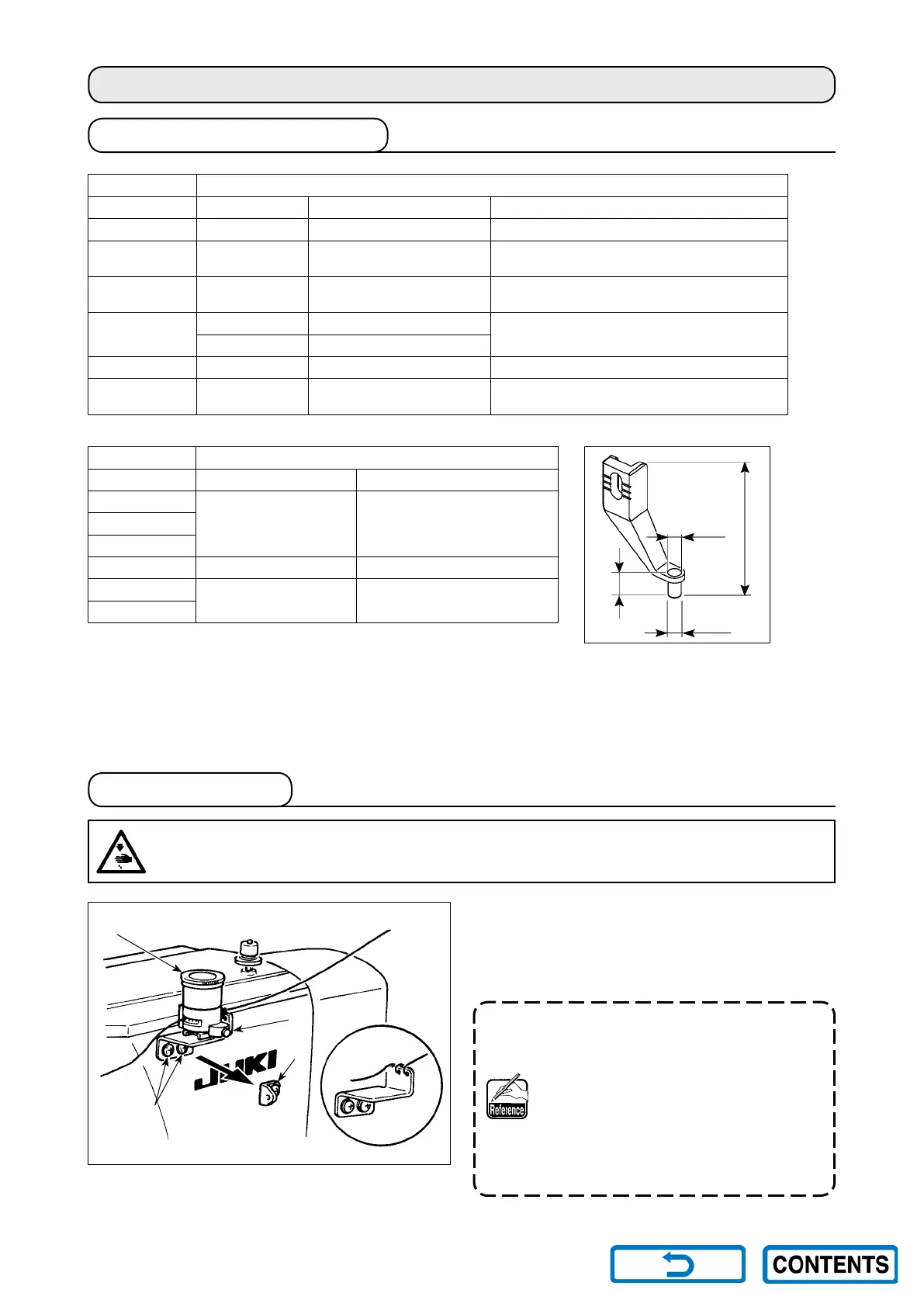

2-1. Table of Needle hole guide
2. OPTIONAL
2-2. Silicon oil tank
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start or the
sewing machine.
Remove take up thread guide No. 1
3
and secure
silicon oil tank base
2
.
Fix silicon oil tank
1
(B3532223C00) with the
magnet.
1. If the thread twists hard on silicon
oil tank base
2
(B2535210000),
reverse the direction of winding the
thread.
2.Forxingthesiliconoiltankbase,
use two M4 screws
4
.
(Part No. of commendable screw :
SM4040855SP)
Needle used Needle hole guide
Size Part No. Needle hole diameter Application
#09 to #11 B242621000C ø 1.6 For knits (OP)
#11 to #14 *
1
B242621000A ø 1.6
For light-weight to medium-weight materials
(S type)
#14 to #18 *
2
B242621000B ø 2.0
For medium-weight to heavy-weight materials
(H type)
#18 to #21
B242621000D ø 2.4
For heavy-weight materials (OP)
B242621000F ø 3.0
#22 to #25 B242621000G ø 3.0 (with a counterbore) For extra heavy-weight materials (OP)
#18 to #25 B242621000H ø 3.0 (eccentric hole)
For heavy-weight materials to prevent skip-
stitching (OP)
Needle used Intermediate presser
Size Part No. Size (øA × øB × H × L)
#09 to #11
B1601210D0E (OP)
40023632 (Standard)
B1601210D0FA (OP)
ø 1.6 × ø 2.6 × 5.7 × 37.0
ø 2.2 × ø 3.6 × 5.7 × 38.5
ø 2.2 × ø 3.6 × 8.7 × 41.5
#11 to #14 *
1
#14 to #18 *
2
#18 to #21 B1601210D0BA (OP) ø 2.7 × ø 4.1 × 5.7 × 38.5
#22 to #25
B1601210D0CA (OP) ø 3.5 × ø 5.5 × 5.7 × 38.5
#18 to #25
*
1
: Standard installed needle (DP X 5 #14)
*
2
: Standard installed needle (DP X 17 #18)
・
S type :
Applicable count of thread : #80 to #20
・
H type : Applicable count of thread : #50 to #02
・
(OP) means the optional.
H
L
ø A
ø B
3
1
2
4
