– 4 –

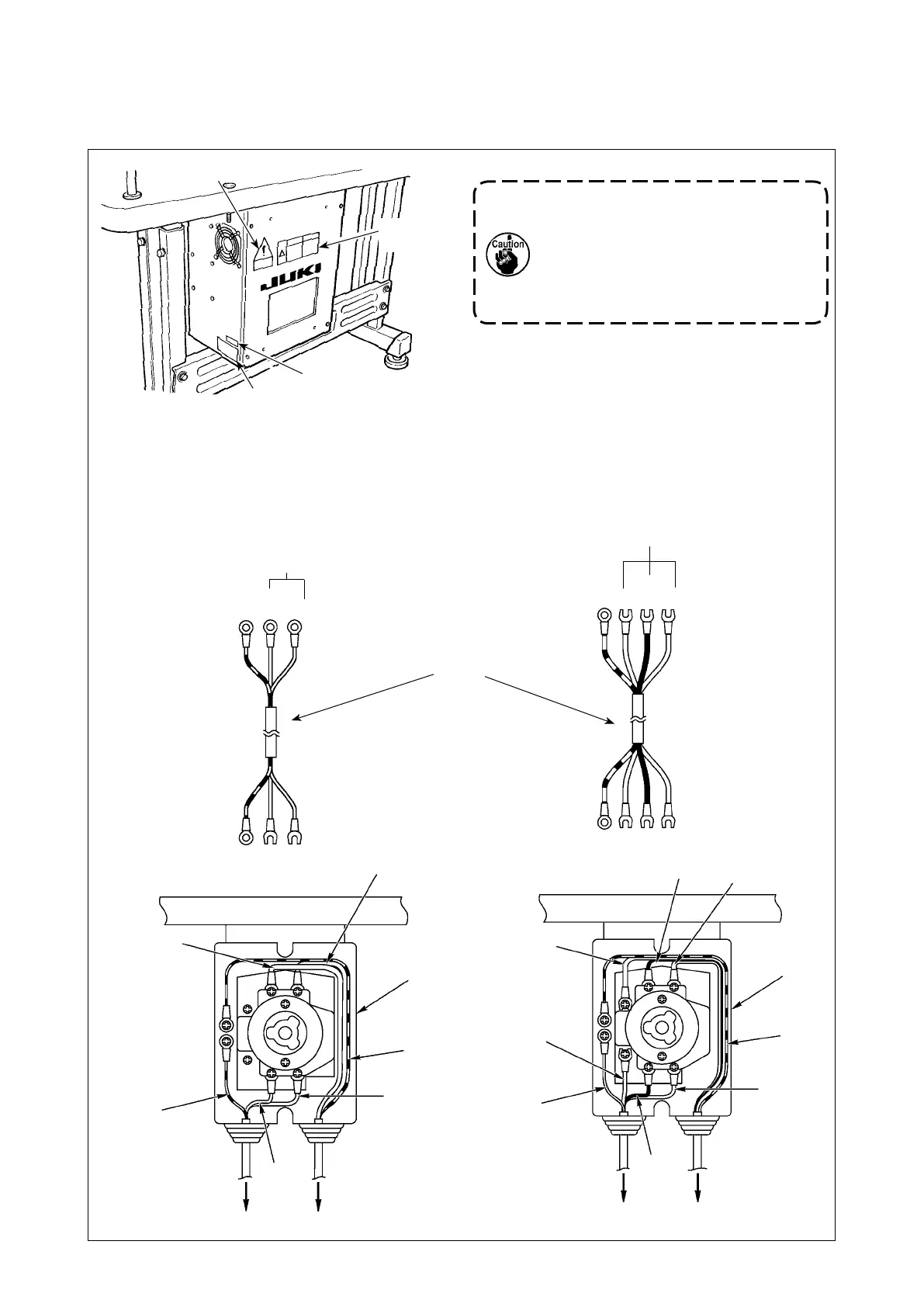

(2) Connecting the power source cord
The factory default voltage type is indicated on the voltage indication plate. Connect the cord in ac-
cordance with the specications.
Voltage indication seal (3-phase type only)
Voltage caution seal
Rating label
Brown
Brown
Light blue
Light blue
Light blue
Green/Yellow
– GND
Green/
Yellow
Plug
Power source cord
Power switch
AC200 V, AC220 V
AC230 V, AC240 V
• Connecting single phase
200V, 220V, 230V and 240V
White
AC200 V, AC220 V, AC240 V
• Connecting three phase
200V, 220V and 240V
Red White
Black
1. Never use under the wrong volt-
age and phase.
2. When changing the voltage, refer
to the item of
"
#
-1-11. Changing the voltage of
100
,/
200V" p.121.
Table
Control box
Black
Red
Green/
Yellow
Brown
Green/Yellow
– GND
Red
Green
PlugControl box
Green/
Yellow
Black
White
Power switch
Table
Electric shock
warning label
