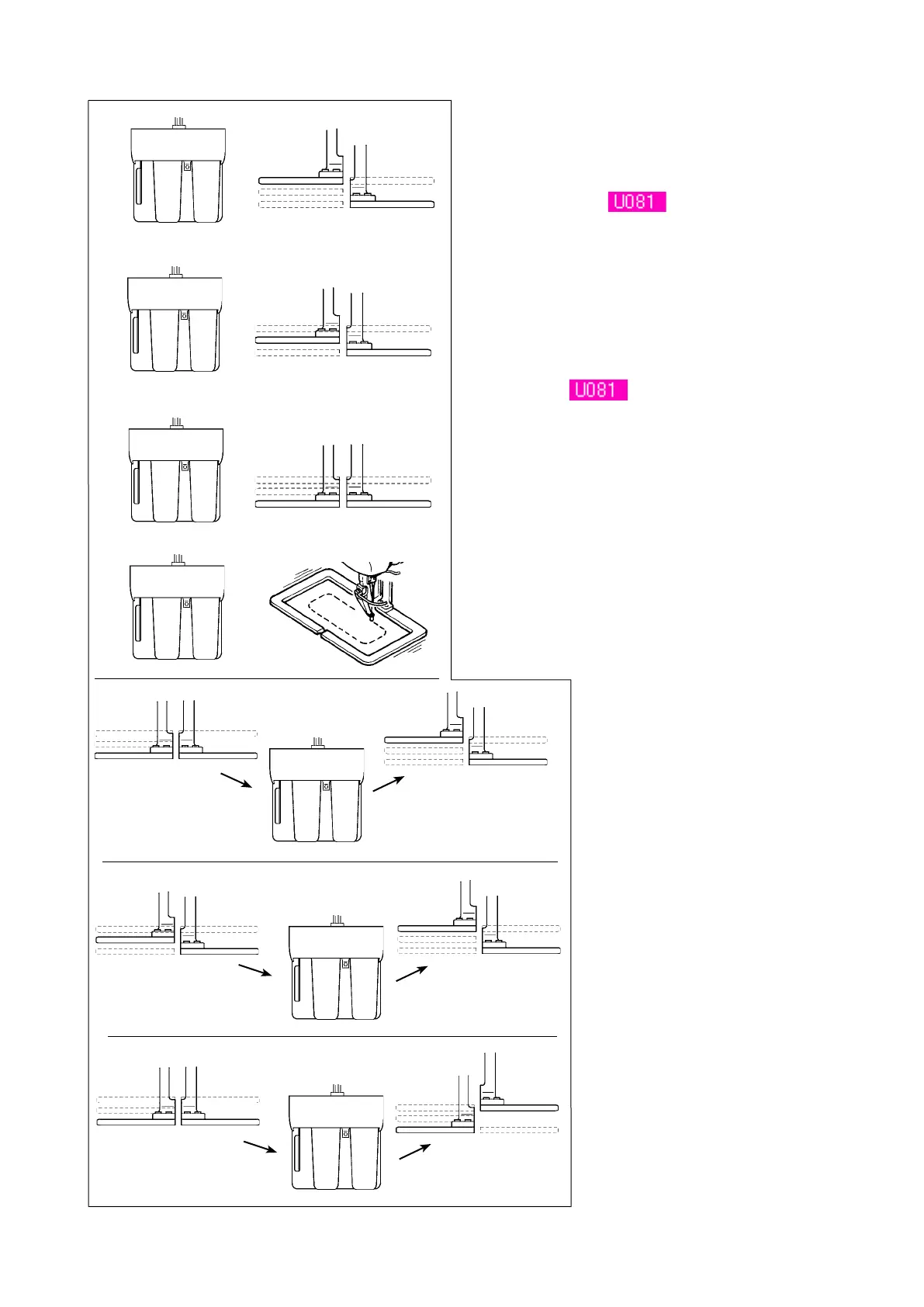

[ When right/left separated pressers 2-step stroke is selected (PK-47 is used. ]
1
When depressing the right pedal, the right
presser comes down to the bottom position.
When "12" (right/left separated pressers 2-step
stroke (in the order of left to right)) is set to
memory switch , the operation of the
right pedal can be performed only in the state
that the left presser is in the bottom position.
2
When depressing 1st step of the intermediate
pedal, the left presser stops at the intermediate
position.
When "11" (right/left separated pressers 2-step
stroke (in the order of right to left)) is set to mem-
ory switch , the operation of the interme-
diate pedal can be performed only in the state
that the right presser is in the bottom position.
3
When depressing 2nd step in the state that 1st
step of the intermediate pedal is depressed, the
left presser comes down to the bottom position.
4
When the left lever is pressed with the state
that both the right presser and the left presser
are in the state of the bottom position, sewing
starts.
5
When depressing 2nd step of
the intermediate pedal in the
state that the left presser is in
the bottom position, the left
presser goes up to the top.
6
When depressing 1st step of
the intermediate pedal in the
state that the left presser is in
the intermediate position, the
left presser goes up to the
top.
7
When depressing the right
pedal again in the state that
the right presser is in the bot-
tom position, the right presser
goes up to the top.
