E-34

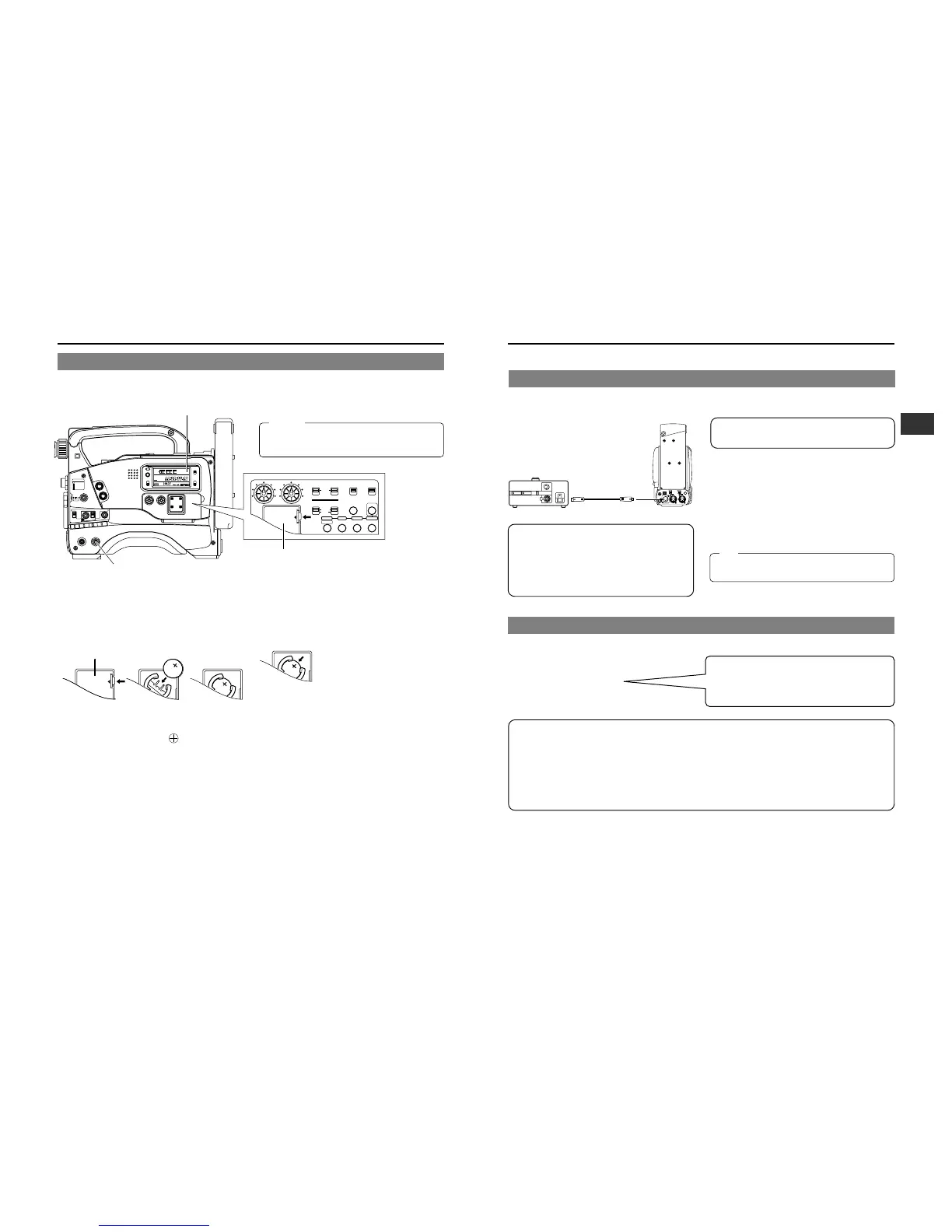

3. BASIC SYSTEM CONNECTIONS AND ADJUSTMENTS
E-35
4. POWER SUPPLY
CAUTION:
An Anton-Bauer battery pack cannot be connected
directly to the GY-DV700W. It is necessary to mount
the optional battery holder.
Battery holder: Anton-Bauer QRQ27
For details on how to mount the battery holder, see
page 37.
*
TALLY DV
AUDIO IN
CH-1
DC INPUT
EARPHONE
DC OUTPUT
LINE MIC
+48V
ON
CH-2
LINE MIC
+48V
ON
DC cable
AC power adapter
The GY-DV700W is operable with AC power supply or battery pack.
Use the JVC AA-P250 AC power adapter (max. rated output 12.5 V DC, 3.5 A) as the AC power supply.
1. After making sure that the power switches of the GY-DV700W
and of the AA-P250 are set to OFF, connect the DC cable
from the AA-P250 to the DC INPUT connector of the GY-
DV700W as shown in the illustration.
2. When the AA-P250 is used, set the CHARGE/CAMERA
switch to CAMERA.
3. Press the POWER switch of the GY-DV700W to ON. Power
is supplied to the VCR section and the camera.
* For details, read the instruction manual of the AA-P250.
The GY-DV700W can be operated with the following battery packs.
 Flat shape type battery pack
 Anton-Bauer battery pack
● Propack 13/14 Series
● Trimpack 13/14 Series
● Magnum 13/14 Series
● Compack 13/14 Series
● When the DC cable is connected to the DC INPUT connector, the power supply from the battery pack is interrupted and the
power starts to be supplied through the DC INPUT connector.
● Do not connect or disconnect the DC cable while operating with a battery pack.
The following symptoms may occur if the DC cable is connected or disconnected while operating with a battery pack.
• The power is cut off for a moment when the DC cable is disconnected.
• Noise to the video and audio signals occurs. Audio signal are muted.
● When operation is continued with DC input after the battery pack capacity has been used up, set the POWER switch to OFF
after the DC power is applied. Then switch ON again.
● If the GY-DV700W is left with the battery pack attached, a small amount of power is consumed even if the POWER switch on
the GY-DV700W is set to OFF. Remove the battery pack when the GY-DV700W is not going to be used.
Do not use any power source with large fluctuations in the
power source voltage, or power sources generating noise,
such as ripples.





4-1 AC Operation
4-2 Battery Pack Operation
CR2032
The GY-DV700W uses a lithium battery for backup of the time code data and time date data. Install the provided lithium battery
before actually using the unit.
● Lithium battery: CR2032
1. Push the lithium battery cover in the direction of the arrow
as illustrated and remove the cover.
2. Slide the battery into place with its marked surface facing
upward.
3. Return the lithium battery cover to its original position in the
unit.
 The lithium battery is easily
removed if you press at the edge
of the lithium battery at the place
indicated in the illustration on the
left and then pull the battery out.
 How to Install the Lithium Battery  How to Remove Lithium Batteries
3-7 Inserting and Replacing Backup Lithium Batteries
When the lithium battery is not in place or the battery is exhausted and requires a replacement, the "Li" indicator in the LCD display
will light up.
Replace lithium batteries with the POWER switch set to ON. Doing it with the POWER switch set to OFF will cause the loss of
backup data.
"Li" indicator
Lithium battery case
Power switch
SLAVE
WIDE
FILTER
1 3200k
2 5600k+1/8ND
3 5600k
4 5600k+1/64ND
LIGHT
ON
OFF
COUNTER
CTL
TC
UB
RESET
OPERATE/WARNING
MONITOR
SELECT
STATUSSHUTTER
MENU
POWER
NG
G
A
IN
O
U
T
P
U
T
W
H
T
.B
A
L
V
TR
ON OFF
ALARM
MONITOR
CH-1
CH-2
AUDIO
LEVEL
AUTO IRIS LOLUX
BACK L
NORMAL
SPOT L
STRETCH
NORMAL
COMPRESS
FULL AUTO BLACK
E
REV FWD
FBATT
H
HM
MSF
REMAIN
AUD LOCK
32k
CH 1
CH 2
48k PB NDF
AUTO OFF DEW
L iRFSERVO
HOLD
SP
MENU
OVER
OVER
40 30 20 10 0 dB
HML
S
A
V
E
S
T
B
Y
B
A
R
S
C
A
M
O
N
O
F
F
A
U
T
O
K
N
E
E
P
R
S
T
A
B
TC GENERATOR
FREE
REC
PRESET
REGEN
CH-1
CH-2CH-1
CH-2
CH-1 CH-2
CONTINUE MENU
PRESETADVANCESHIFTHOLD
AUTO
MANUAL
FRONT
REAR
DATA SET SELECTITEMGROUP
AUDIO SELECT
AUDIO INPUT
AUDIO
LEVEL
LITHIUM BATT.
C
R
2032
CR2032
LITHIUM BATT.
Lithium battery cover
If the unit is not used for a lengthy period of time (one
month or more), remove the lithium battery. If the voltage
of the lithium battery becomes low, the set may malfunction.
Do not remove or connect the DC cable while recording is
being performed.
Note:
Precautions for Connection with the AC POWER
ADAPTER(AA-P250)
Always use the DC cable equipped with a ferrite core and
supplied with the AA-P250.
The DC cable VC-710(5m) can not be used.
If the cable is not equipped with a ferrite core, please contact
your JVC dealer.
