14. OTHERS
E-94
14. OTHERS
The illustration is GY-DV700WEK.
* Design and specifications are subject to change without notice.
OPTIONAL ACCESSORIES
Viewfinder : VF-P116W
Power zoom lens : A19 x 8.7BW, A19 x 8.7B12 (FUJINON)
YJ18 x 9BK12 (CANON)
AC power adapter : AA-P250
Microphone : MV-P615
Microphone holder : KA-A50

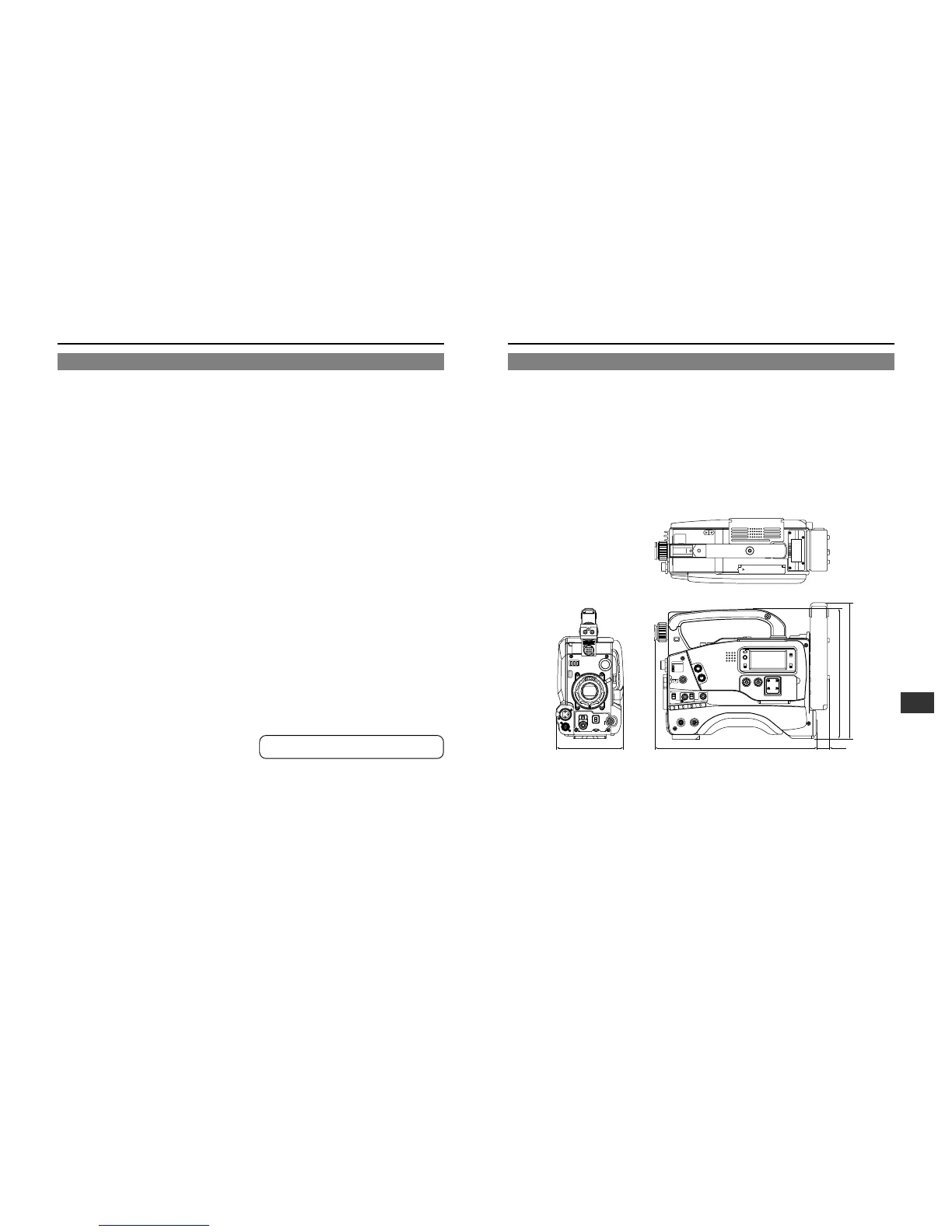

EXTERNAL DIMENSIONS (unit: mm)
14-4 Specifications
INPUT/OUTPUT SIGNALS
Video signal output : 1 V (p-p), 75 Ω (BNC) unbalanced
composite output.
YC output : Y 1 V (p-p) 75 Ω unbalance
C 0.3 V (p-p) 75 Ω unbalance (4-
pin)
Lens : 12-pin connector
Audio input : Microphone -60dBs, 3 kΩ
balanced
Line +4dBs, 10 kΩ
balanced
Audio output : -6 dBs, low impedance, unbalanced
Earphone output : -60 dBs to -17 dBs, at 8-Ω load
(Monaural mini jack)
DC input : 12V DC (11V to 15 V DC) (XLR-4)
Auxiliary power output
: 12 V DC, max. 0.1A (11V to 15 V
DC)
DV connector : 4-pin
RS-232C : Mini DIN 6-pin
GENERAL
Power consumption : 2A with VF-P116W (when record-
ing)
Mass : Approx. 3.1 kg
Operating temperatures
:0 °C to 40 °C
Operating humidity : 30 % to 80 % RH
Storage temperatures: -20 °C to 60 °C
ACCESSORIES
Microphone :x 1
Tripod base :x 1
Lithium battery : x 1 (CR2032)
Cover : x 1 (WEK)
Head cleaning tape :x 1
Instructions :x 1
Precautions for Use of Head Cleaning Tape
: x 1 (WEK)
Design and specifications are subject to change without
notice.
14-4 Specifications
CAMERA SECTION
Image pickup devices: 2/3-inch 16:9 interline CCD x 3
Colour separation optical system:
F1.4 3-colour separation prism
Number of effective pixels:
Approx. 570,000 pixels ((H) 980 x
(V) 582)
Colour system : PAL (R-Y, B-Y encoder)
Colour bars : EBU colour bar
Sync system : Internal sync (built-in SSG)
External sync (VBS or BB)
Lens mount : Bayonet system
(compatible with 2/3-inch lenses)
Optical filter : 3200 K, 5600K + 1/8ND, 5600 K,
5600 K + 1/64ND
Sensitivity : F11, 2000 lx
Minimum illumination: 0.75 lx (F1.4, LOLUX mode)
Gain : -3, 0, 6, 9, 12, 18 dB, ALC, LOLUX,
Shutter speed : 1/120, 1/250, 1/500, 1/1000, 1/2000
V.SCAN speed : 50.1 Hz to 2053.6 Hz
Registration : 0.05% or less (excluding lens
distortion)
Contour correction : Horizontal: dual-edged. Vertical: 2 H
VCR SECTION
Format : Mini DV (SP mode only)
Tape speed : 18.831 mm/s
Record/Play time : 60 minutes
(With M-DV60ME cassette)
F.F/Rewind time : Approx. 3 minutes 30 seconds
(With M-DV60ME cassette)
[VIDEO]
Recording format : 8-bit, 13.5 MHz, 4:2:0 component
recording
[AUDIO]
Recording format : 16-bit, 48 kHz, 2-channel PCM
audio/12-bit, 32 kHz 2-channel
PCM audio
Frequency response : 20 Hz to 20 kHz
Wow & flutter : Below measurable limit
[Time Code System]
Time code signal : Compliance with EBU standard
LTC input : 0 dBs ± 6 dBs, high impedance,
unbalanced
LTC output : 0 dBs ± 6 dBs, low impedance,
unbalanced
AUTO
WHITE
SKIN
AREA
ACCU
FOCUS
TAKE
VTR
ZEBRA
AUDIO
LEVEL CH-1
ON
OFF
VF
PUSH OPEN
124 302 26.5
243
256
LIGHT
ON
OFF
COUNTER
CTL
TC
UB
RESET
OPERATE/WARNING
MONITOR
SELECT
STATUSSHUTTER
MENU
POWER
NG
GAIN
OUTPUT
WHT.BAL
VTR
ON OFF
ALARM
MONITOR
S
AVE S
TBY
H
M
L
B
A
R
S
C
A
M
A
U
T
O
K
N
E
E
P
R
S
T
A
B
ON
OFF
CH-1
CH-2
AUDIO
LEVEL
AUTO IRIS LOLUX
BACK L
NORMAL
SPOT L
STRETCH
NORMAL
COMPRESS
FULL AUTO BLACK
FILTER
1 3200k
2 5600k+1/8ND
3 5600k
4 5600k+1/64ND
