E-37
4. POWER SUPPLY
E-36
4. POWER SUPPLY
4.
Connect the connectors protruding from the GY-DV700W
with the connectors on the battery holder.
* Following connection of the connectors, insert them into
the connector compartment and secure with the clamp.
5.
Secure the battery holder to the GY-DV700W with the four
mount screws provided with the battery holder.
* Take care not to pinch the wires. This could result in
damage.

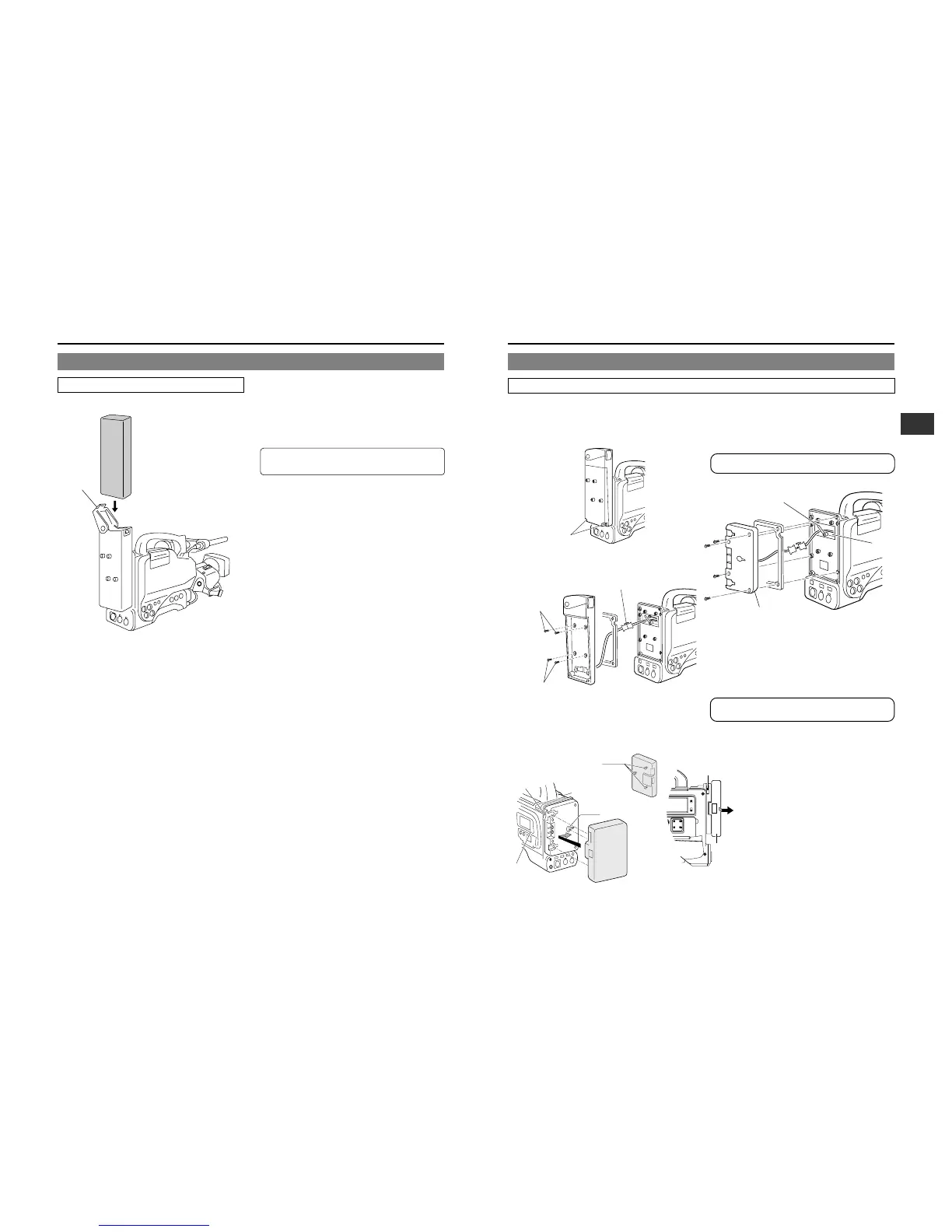

Using an Anton-Bauer Battery Pack
To use an Anton-Bauer battery pack (Propack 13/14, Trimpack 13/14, Magnum 13/14, Compack 13/14 Series), it is necessary to
detach the battery case from the GY-DV700W and replace it with the Anton-Bauer battery holder. Use the following battery holder.
• Battery holder: Anton-Bauer QRQ27
Detaching the Battery Case From the GY-DV700W and Attaching The Anton-
Bauer Battery
1.
Remove the two black screws
Å
on the battery case.
2.
Remove the lower half of the battery case cover in the
downward direction.
Attaching and Detaching an Anton-Bauer Battery Pack
Attaching the Battery Pack
1.
Align the 3 guide pins of the battery pack with
the guide holes on the battery holder, and push
straight to insert the battery pack.
The battery cannot be attached properly if the
guide pins are not inserted straight.
2.
Slide the battery pack toward the side panel
where the cassette cover is located until it clicks.
Now the battery pack has been attached.
Detaching the Battery Pack
While pushing and holding the release lever, slide
the battery pack toward the side panel where the
LCD display is located, then pull the battery pack
outward to remove.
3.
To remove the battery case, remove the four screw
ı
fixing
the battery case and the connector connecting the battery
case to this unit.
4-2 Battery Pack Operation (Cont'd)
1.
Black screw
Å
3.
Mount screw
ı
LIGHT
ON
OFF
COUNTER
CTL
TC
UB
3.
Connector
3.
Mount screw
ı
Guide pins
Battery pack
(Trimpack)
Release
lever
Cassette cover
side panel
Guide
holes
(x3)
Side panel
with display
Battery
Release lever
Clamp
Anton-Bauer
Battery holder
Connector
Compart-
ment
Attaching a Flat Shape Type Battery Pack
4-2 Battery Pack Operation (Cont'd)
1.
Open the battery case cover while pushing the lock release
lever.
2.
Insert the battery pack into the battery case with its electrodes
facing the unit.
3.
Close the battery case cover.
Lock release
lever
Be sure to set the POWER switch to OFF before replacing
the battery pack.
Attaching the Anton-Bauer Battery Holder
Anton-Bauer Battery Holder
To Next Page
