JVC GY-DV700W User Manual

E-89
14. OTHERS
E-88
14. OTHERS

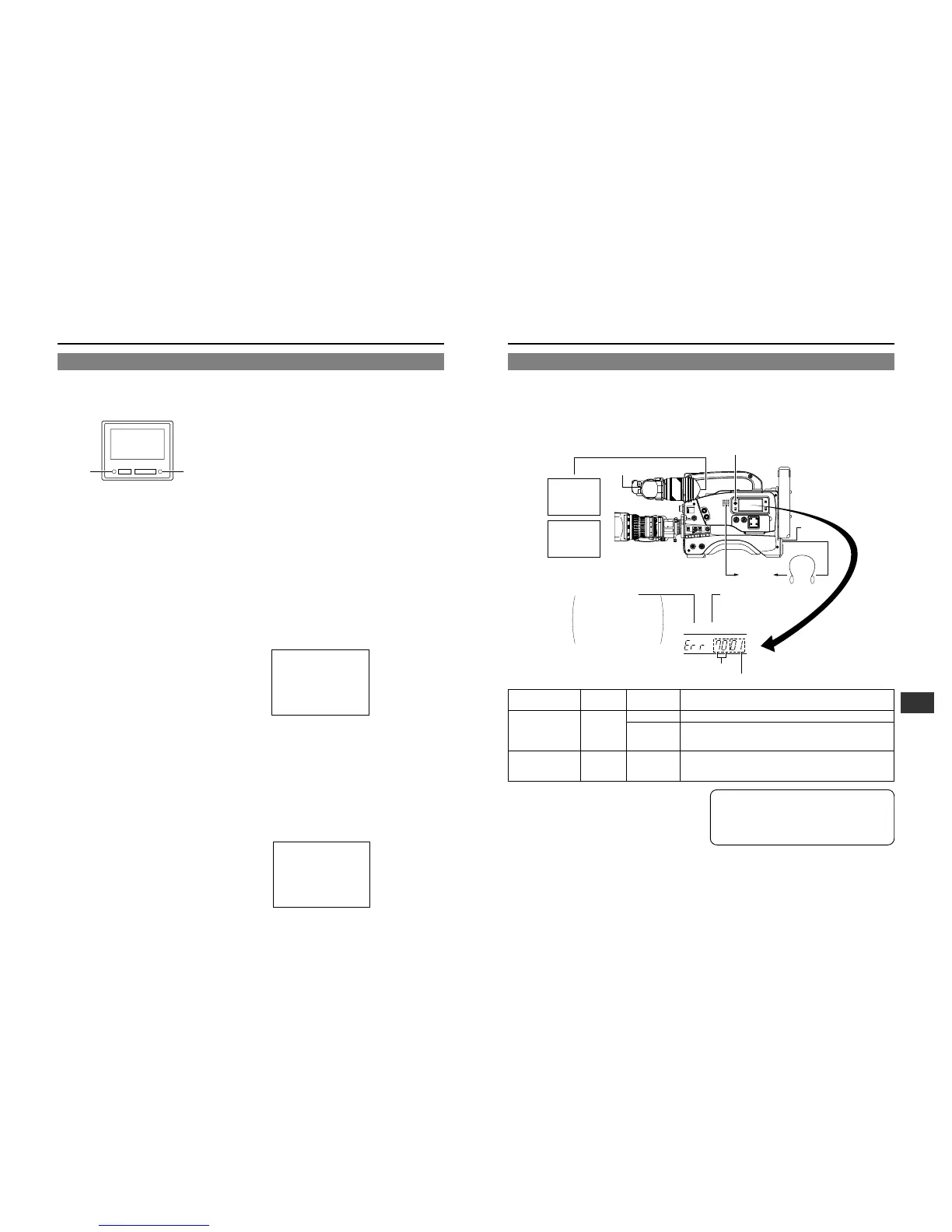

In the case of troubles occurring during operation of the GY-DV700W, it performs a self-test to identify the cause and displays the
result in the form of an error code. The error code consists of the "main code" which indicates its contents and the "sub-code" which
indicates the details. Depending on the status of the GY-DV700W at this time, indications may also appear on the LCD display, the
WARNING indicator may activate and the alarm tone may be generated.
In the viewfinder, the "VTR WARNING (DEW)" indication appears when condensation is detected, and the "VTR WARNING (STOP)",
"VTR WARNING (HARD)" or "VTR WARNING (REW)" indication appears depending on the contents of the error code when some
of the other error codes are displayed.
* In the Auto OFF status, it is impossible to operate the GY-
DV700W. This condition can be cancelled by switching the
POWER switch OFF and then switching it ON again. If the
same problem occurs again after the power is turned ON,
there may be something wrong with the GY-DV700W. Please
consult the person in charge of professional video equipment
at your nearest JVC-authorized service agent.
WARNING indicator Alarm Tone Display GY-DV700W Operation
Red, blinking Continuous "Error code" • Automatically ejects the cassette. It can be inserted again.
"Error code"
plus
"AUTO OFF"
• Automatically stops operation or ejects the cassette.
(Auto OFF) * The GY-DV700W does not accept any operation.
Red, blinking Intermittent "DEW " • Dew condensation inside the unit.
The GY-DV700W does not accept any operation until the DEW
indicator disappears from the display.
14-1 Troubleshooting (Cont'd)
The GY-DV700W is a microcomputer-controlled piece of
equipment, which may malfunction due to external noise
or interference. In this case, set the POWER switch to OFF,
remove the lithium backup battery, and then set the
POWER switch to ON again after a few minutes.
LIGHT
ON
OFF
COUNTER
CTL
TC
UB
RESET
OPERATE/WARNING
MONITOR
SELECT
STATUSSHUTTER
MENU
POWER
NG
GAIN
OUTPUT
WHT.BAL
VTR
ON OFF
ALARM
MONITOR
CH-1
CH-2
AUDIO
LEVEL
AUTO IRIS LOLUX
BACK L
NORMAL
SPOT L
STRETCH
NORMAL
COMPRESS
FULL AUTO BLACK
H
M
L
SAVE STBY
BARS CAM
ON
OFF
A
U
T
O
K
N
E
E
P
R
S
T A
B
C
C
16
16
11
11
8
8
5.6
5.6
O
O
R
R
C
C
M
M
A
A
1.5
1.5
5
5
2
2
7
7
10
10
3
3
5
5
15
15
10
10
30
30
∞
∞
m
m
ft
ft
8.7
8.7
20
20
FUJINON
FUJINON
ASPHERIC & IF 19x
ASPHERIC & IF 19x
TV .
TV .
ZOOM
ZOOM
FILTER
1 3200k
2 5600k+1/8ND
3 5600k
4 5600k+1/64ND
AUTO OFF DEW
VTR WARNING (HARD)
VTR WARNING (DEW)
Main code
Dew condensation
indicator
Sub-code
ALARM
tone
EARPHONE
TALLY lamp
WARNING indicator
TALLY
lamp
Auto-OFF indicator:
Lights depending on the error
code. When this indicator
lights, the GY-DV700W will
automatically stop operation
or eject the cassette.
The GY-DV700W does not
accept any operation.
• AUTO WHITE A, B
NG: OBJECT
• AUTO WHITE A, B
ERROR: LOW LIGHT
• AUTO WHITE A, B
ERROR: OVER LIGHT
WARNINGS IN VIEWFINDER
Viewfinder Warning Lamps
VTR WARNING(HEAD)
Status 0 or
Status 1 mode
AUTO WH I TE A
NG:OBJECT
14-1 Troubleshooting (Cont'd)
1. BATTERY lamp
This red lamp lights under the following circumstance.
Lights red : • When the battery voltage becomes too low
for the camera to operate.
2. REC/ALARM lamp
This lamp lights or blinks green under the following
conditions.
Lights Green : • While recording
Blinks Green : • During the interval where the unit
switches from record-pause to record
mode.
• Immediately before the tape runs out or
has run out.
• If the unit malfunctions.
 Character display warnings:
LOW BATTERY : This blinks when the battery level
becomes too low.
TAPE NEAR END: Less than 3 minutes tape remaining.
TAPE END : The tape has run out.
 Function Failures
When an abnormality occurs in the unit or an improper operation
is performed, one of the following warning messages will appear
in the viewfinder.
• VTR WARNING (HEAD):
Lights in case of video head clogging.
(Head clogging is detected and indicated during playback
and recording check using the RET button on the lens
section.)
• VTR WARNING (SERVO):
Lights in the case of drum servo trouble during recording.
• VTR WARNING (DEW):
Lights when condensation occurs in the unit.
• VTR WARNING (STOP):
Lights in case the unit stops operating.
• VTR WARNING (HARD):
Lights when abnormality occurs in the unit.
• VTR WARNING (REW):
Lights when abnormality occurs with tape rewind operation.
• CLOSE CASSETTE COVER:
Lights when the cassette cover has not been closed.
• REC INHIBIT:
Indicated when an unrecordable videocassette (the switch
on the back of the cassette is set to SAVE) is loaded.
• NO TAPE:
Lights when the VTR trigger button is pressed with no
videocassette loaded.
 Warnings on the White Balance Function
Improper object.
• Check whether the object being
shot is white enough.
• Check that selected filter suits the
illumination conditions.
Amount of incident light insufficient.
• Check to see if it is necessary to
increase illumination or perform
iris adjustment.
Amount of incident light excessive.
• Check to see if illumination and iris
adjustment are appropriate.
REC
BATT
ALARM
1. 2.
Battery lamp REC/ALARM lamp
