12. SETUP MENU
E-67
12. SETUP MENU
1.
Engaging the VCR Setup Menu mode.
Press the MENU button.
• The "MENU" indication in the display section starts
blinking and the VCR Setup Menu appears in the
viewfinder and on the counter display.
2.
Selecting the GROUP.
Press the GROUP button.
• Each time the GROUP button is pressed the selected
GROUP number is shown blinking on the viewfinder
screen. The counter display shows the selected group.
3.
Open the Item menu of the selected GROUP.
Press the SELECT button.
4.
Selecting the Item.
Press the ITEM button.
• Each time the ITEM button is pressed the selected item
number is shown blinking on the viewfinder screen. The
counter display shows the selected item.
5.
Changing the setting value of the item.
Press the SELECT button and select the setting value.
When multiple items should be set, repeat the operations
of steps
4.
and
5.
To set menu items in other groups, press the MENU
button. When the relevant group menu is displayed,
perform the setting.
When the GROUP button is pressed, the items of the
higher order group menu are displayed.
6.
Saving the setting value.
Press the DATA SET button.
• "DATA SET" appears in the viewfinder and on the counter
display and the setting value is saved in the GY-
DV700W's memory. The display returns to the normal
screen mode when data has been saved.
If the MENU button is pressed without pressing the DATA
SET button, the display returns to the normal screen
mode without the setting value being changed.

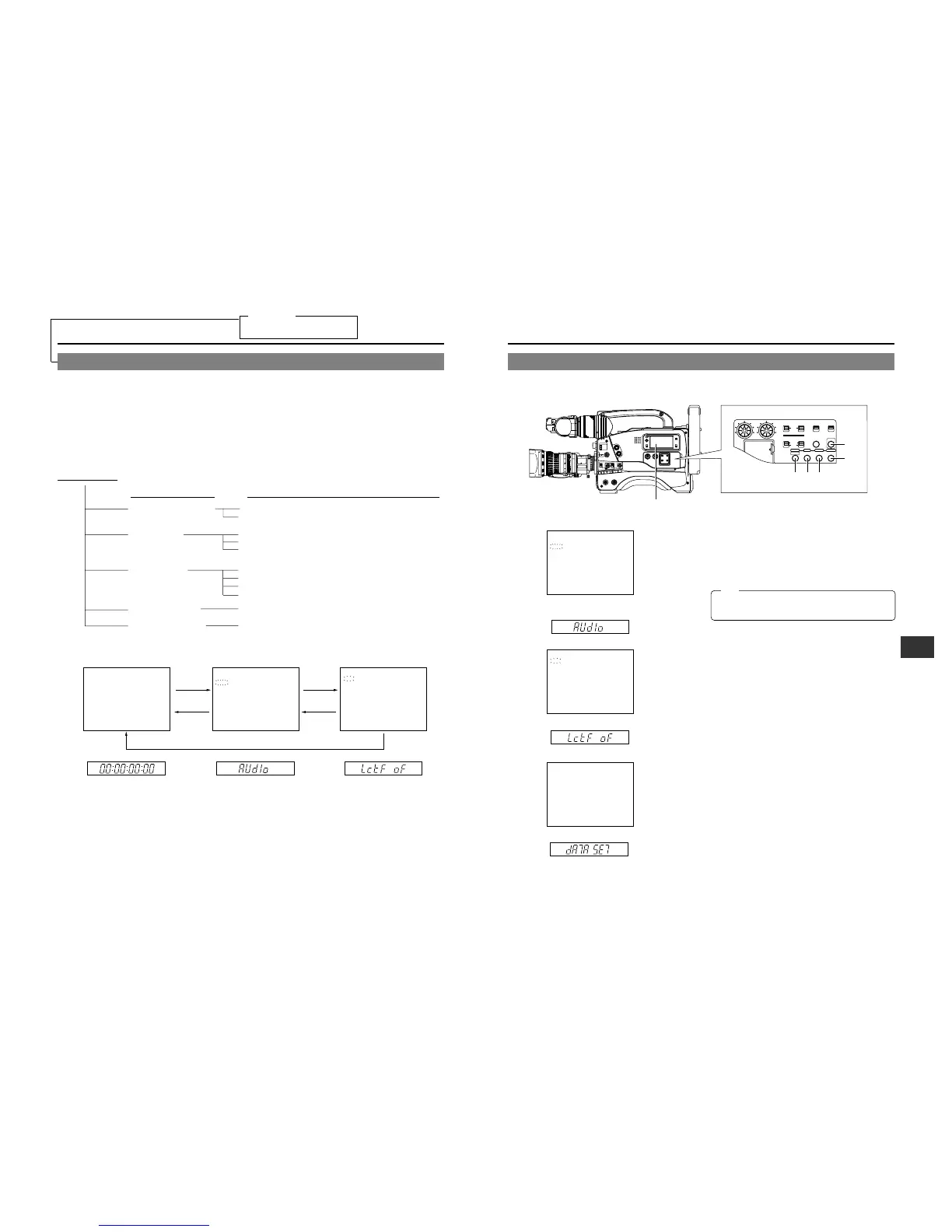

DISPLAYING AND SETTING VCR SETUP MENUS
12-1 VCR Setup Menu (Cont'd)
TC GENERATOR
FREE
REC
PRESET
REGEN
CH-1
CH-2CH-1
CH-2
CH-1 CH-2
CONTINUE MENU
PRESETADVANCESHIFTHOLD
AUTO
MANUAL
FRONT
REAR
DATA SET
SELECTITEMGROUP
AUDIO SELECT
AUDIO INPUT
AUDIO
LEVEL
LITHIUM BATT.
"MENU" indication
2. 3. 5.4.
6.
1.
When a cable is connected to the VTR REMOTE connector,
the VTR Setup Menu is not displayed in the viewfinder.
The setup menus for the VCR section can be set while observing the menu in the viewfinder and on the unit's counter display.
The set contents are stored in the memory and retained even after the power is switched OFF.
VCR SETUP MENU CONFIGURATION
The VCR Setup Menu is a two-layer construction.
The VCR Setup Menu consists of five group menus divided according to functions. When a Group menu is selected, the menu's
Item menu opens. Each Item menu contains one or several items, and the various items can be set individually as required.
12-1 VCR Setup Menu
SERVO/SYSTEM
AUDIO
SYSTEM
ON SCREEN
HOUR METER
000
200
300
500
HM
Selection of remote control to control the unit
Selection of BACK TALLY lamp lighting pattern
Selection of low cut for audio input signals
Selection of sampling frequency for audio input signals
Selection of front section audio volume control
Selection of amount of back space for recording pause
Selection of long pause/still duration
Selection of battery type
Selection of S.S.F. (Super Scene Finder) mode
Selection of counter display method (Time code/Date/Time)
Display of hour meter (accumulated running time of head drum)
VCR Setup Menu
Group Name Item Menu Contents
000 : SERVO / SYS TEM
200 :AUD IO
300 :SYSTEM
400 :TIME CODE
5 0 0 : ON SCREEN
HM : HOUR ME TE R
244 : LOW CUT
OFF
245 :SAMPLE RATE
48K
2 4 6 : FRON T VO LUME
ENABLE
Normal screen
Note:
Viewfinder display Group Menu
Item Menu
(example: AUDIO)
DATA SET button
MENU button
SELECT button
MENU button MENU button
GROUP menu screen
Counter display
Item menu screen
DATA SET display
Viewfinder
For servicing
See the service manual page 1-18,
“1.13 SERVICE MENU (VCR)”.
→
To Next Page
