JVC XL-R5010BKC User Manual

9
English English
Note
In this manual, procedures using buttons on the front panel of the
unit are depicted by the name of the button in capital letters with
the button illustration immediately after it. Procedures using the
buttons on the remote control are depicted by the button illustration
with the name of the button in small letters and parentheses imme-
diately after it.
Example: CD Control PAUSE 8 button Front panel 8 (pause)
button Remote control

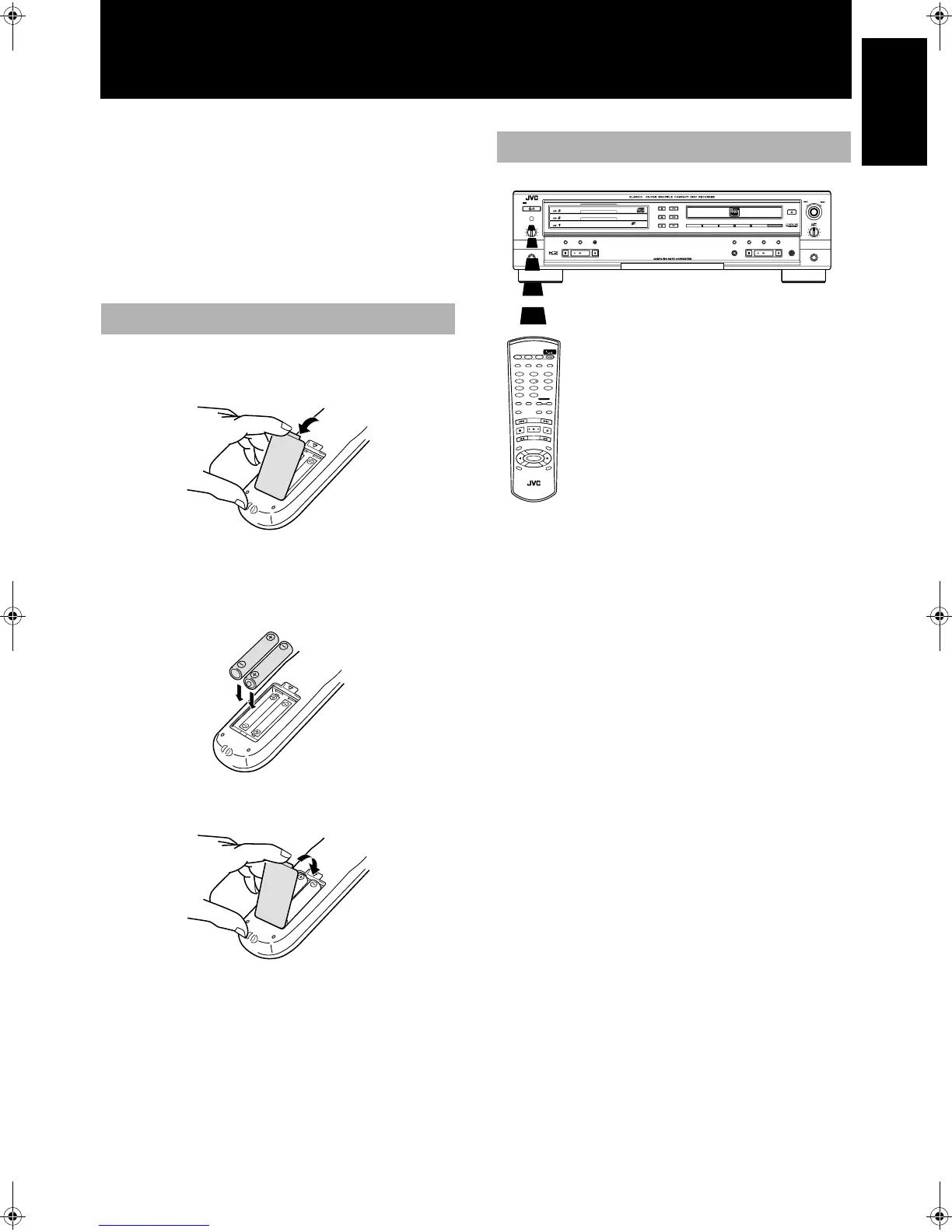

1
Press down on the point shown by the arrow at
the top of the compartment cover, and lift the
cover to open the compartment.
2
Place the two accompanying R6P(SUM-3)/
AA(15F) batteries in the remote control making
sure to match the battery polarities with the
markings (“+”/“–”) inside the compartment.
3
Place the cover over the compartment and
press down lightly until it locks in place.
• Point the remote control toward the left side of the front panel of
the main unit before you begin pressing buttons.
• The remote control can be operated at a distance of up to
approximately 7m (23ft) or so from the main unit. This distance
will be less if the remote control is operated from a position that
is not directly in front or on the same level as the main unit.
• When the distance over which the remote control can be oper-
ated starts to drop, it means that the batteries are nearing the end
of their service life.
• Replace both R6P(SUM-3)/AA(15F) batteries with new batter-
ies.
• The dry-cell batteries provided with the unit are for the purpose
of checking system operations only. Replace them with new
batteries as soon as possible.
• Do not drop the remote control or subject it to strong impact.
• In order to ensure that the remote control does not fail to oper-
ate, avoid the following conditions:
• Exposure of the main unit and remote control to direct sun-
light or other intense sources of light.
• Objects blocking the path of signals being transmitted from
the remote control to the main unit.
Inserting the Batteries
Using the Remote Control
STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
/REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
STANDBY/ON
CD1 CD2 CD3
CD REC
PLAY
MODE
•
REC
REC MUTING
R
E
C
S
O
U
R
C
E
M
E
N
U
P
I
T
C
H
0
CH
AN
C
E
L
REPEAT CD
PITCH
+
SET
PITCH–
RM
–
SXLR5010A REMOTE CONTROL
CDR
CD EDIT FINALIZE DISPLAY
1 2
4 5
7 8
3
6
9
10
+
10
FAD E SYNCHRO
CONTROL
XL-R5010BK.book Page 9 Monday, June 4, 2001 11:40 AM

JVC XL-R5010BKC Specifications

Power

power requirements	120V, 60Hz
power consumption (power ON mode)	40W
power consumption (STANDBY mode)	5W

Output Terminals

analog output	2V/5kΩ
headphones output	4mW/32Ω
digital optical output	–21dBm - –15 dBm

Weight and Dimensions

dimensions (W x H x D)	435mm x 127mm x 334mm
mass	6.3kg
