JVC XL-R5010BKC User Manual

27
English English
When "ADD FINALIZE?" is shown in the information
window:
• No response (no input) assumes that finalization is to be per-
formed, or you can press the SET button (main unit/remote con-
trol) to confirm that finalization is to be done. Press the
CANCEL button (main unit/remote control) to keep the disc
unfinalized.
Note
• This message will not be shown if the menu FINALIZE func-
tion setting is “OFF”. The default setting is “ON”.
• When a blank dick is in the CDR tray, “UPDATE OPC” is
shown following “ADD FINALIZE?”.
The recording process starts.
• Only the tracks selected from the CDs in the 3-CD changer are
recorded.
• Playback starts from the first track seleted. The playing time of
the track and the remaining playing time of the CD-R or CD-
RW disc are shown in the information display.
• As high-speed recording is performed (CD-R 4x, CD-RW 2x),
there is no audio output during the recording process.
When recording completes
"STOP DUBBING" flashes and recording automatically stops.
When recorded without canceling "ADD FINALIZE?"
"FINALIZE" is shown in the information window after recording is
stopped and finalization is automatically performed.
To stop the recording at any time
Press the CD Control STOP 7, CDR Control STOP 7 or CANCEL
button on the main unit or the 7 (stop) or CANCEL button on the
remote control to stop the recording process. The recording mode
is released after “STOP DUBBING” is shown in the information
display.
Notes
• There is no need to adjust the recording level when recording a
digital signal.
• The last program information (the most recently created pro-
gram still stored in the unit's memory) will be erased if the trays
of the 3-CD changer are opened.
This type of recording allows you to make a program of your favor-
ite tracks on any of the CDs loaded in the 3-CD changer in any
order you like.
1
Load CDs in the 3-CD changer
Note
• To close a tray, press the 0 button for the tray number that is
open. If you press the 0 button for a tray number other than that
for the tray that is open, the program may not be played correctly.
2
Load a recordable CD-R or CD-RW disc in the CDR tray.
• The disc is read.
3
Press the CD EDIT button (main unit/remote
control) twice to select the Program Edit mode.
• The unit may be required to read the TOC (Table of Contents)
of the CDs loaded in the 3-CD changer. If this is done, “TOC
READING” is shown in the information display.

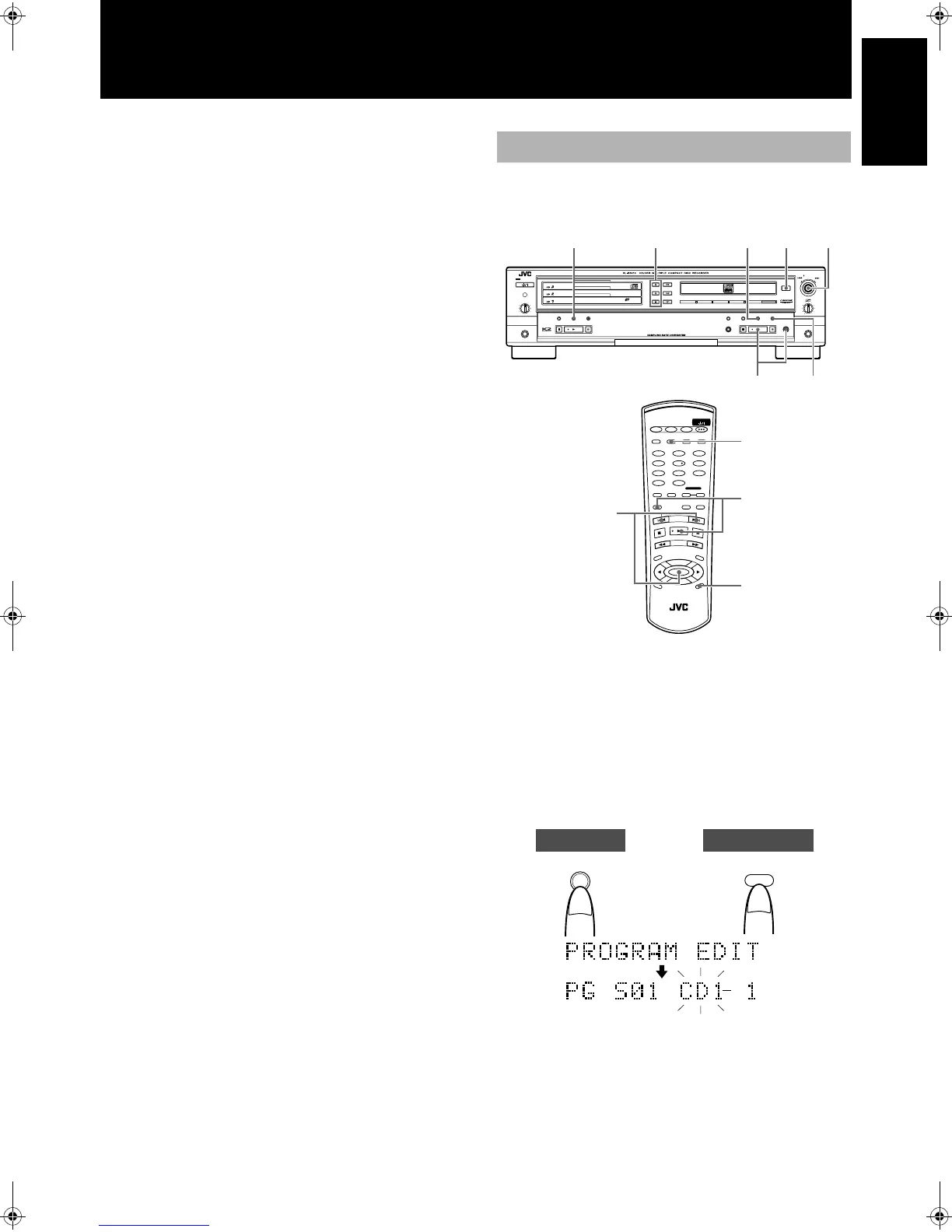

Program Edit Recording
STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
CANCEL
4,5 4,5
7
123
STANDBY/ON
CD1 CD2 CD3
CD REC
PLAY
MODE
•
REC
REC MUTING
RE
C
SOUR
CE
MENU
PITCH
0
C
H
A
N
C
E
L
REPEAT CD
PITCH
+
SET
PITCH–
RM
–
SXLR5010A REMOTE CONTROL
CDR
CD EDIT FINALIZE DISPLAY
1 2
4 5
7 8
3
6
9
10
+
10
FAD E SYNCHRO
CONTROL
3
4,5
7
CANCEL
CD EDIT
CD EDIT
Remote ControlMain Unit
(To be continued on the next page)
XL-R5010BK.book Page 27 Monday, June 4, 2001 11:40 AM

JVC XL-R5010BKC Specifications

Power

power requirements	120V, 60Hz
power consumption (power ON mode)	40W
power consumption (STANDBY mode)	5W

Output Terminals

analog output	2V/5kΩ
headphones output	4mW/32Ω
digital optical output	–21dBm - –15 dBm

Weight and Dimensions

dimensions (W x H x D)	435mm x 127mm x 334mm
mass	6.3kg
