JVC XL-R5010BKC User Manual

29
English English
High-speed recording is only possible for digital recording from
the 3-CD changer to the CD.
1
When the unit is in the stop mode, press the
MENU button (main unit/remote control).
2
Turn the MULTI JOG control or press the
2
/
3
(menu) button on the remote control until “DUB-
SPEED” is shown in the information display.
3
Press the SET button (main unit/remote
control).
• The current setting is shown in the display window. (The setting
is HIGH by default.)
• The speed for recording to CD-R discs is four times the normal
recording speed, and that for recording to CD-RW discs is two
times the normal recording speed.
4
Turn the MULTI JOG control or press the
2
/
3
(menu) button on the remote control to select
“HIGH” or “1x”.
• If “HIGH” is selected, “HIGH” flashes in the display window.
• Press the CANCEL button (main unit/remote control) to cancel
the procedure and return to the normal display.
5
Pess the SET button.
Notes
High-speed recording is only possible for digital recording from
the 3-CD changer to the CDR. It can be used for 1-track dubbing,
1-disc dubbing, listening edit and program edit modes.
• There is no audio output from any of the output terminals
(LINE OUT, DIGITAL OUT OPTICAL, DIGITAL OUT,
COAXIAL, PHONES) during high-speed recording. Therefore,
the only way to monitor the process is using the recording level
meter in the display window.
When the automatic track spacing function is turned on, the unit
automatically records 2 seconds of silence at the beginning of each
track when performing synchronized one-button recording or using
the listening edit or program edit modes to record from the 3-CD
changer to the CDR.
1
When the unit is in the stop mode, press the
MENU button (main unit/remote control).
2
Turn the MULTI JOG control or press the
2¥3
(menu) button on the remote control until
“TRACK SPACE” is shown in the information
display.
3
Press the SET button (main unit/remote
control).
• The current setting is displayed on the screen. (The setting is on
by default.)

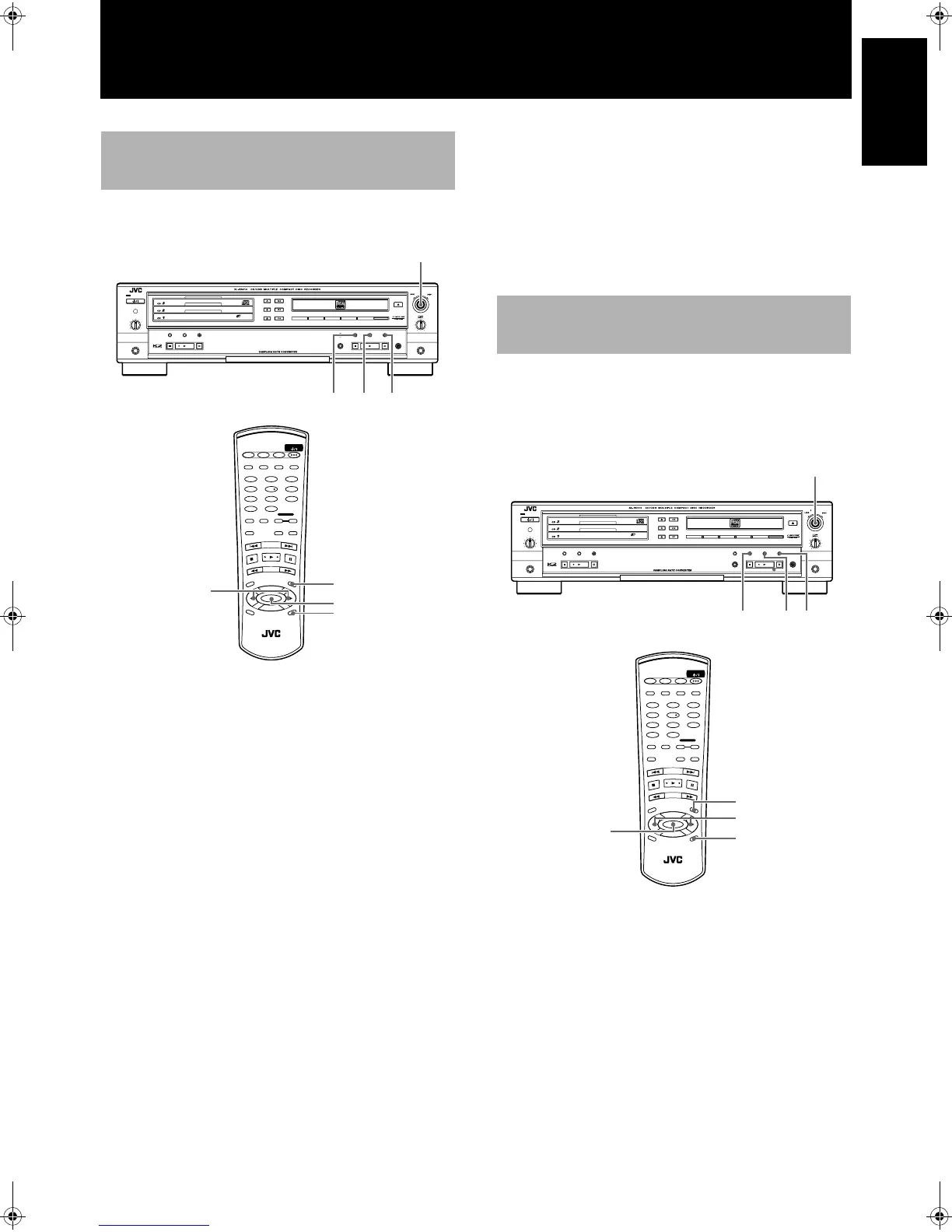

Setting the Unit for High-speed
Recording
STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
1 3,5
2,4
STANDBY/ON
CD1 CD2 CD3
CD REC
PLAY
MODE
•
REC
REC MUTING
REC
SOURCE
MENU
PITCH
0
C
H
A
N
C
E
L
REPEAT CD
PITCH
+
SET
PITCH–
RM
–
SXLR5010A REMOTE CONTROL
CDR
CD EDIT FINALIZE DISPLAY
1 2
4 5
7 8
3
6
9
10
+
10
FAD E SYNCHRO
CONTROL
2,4
3,5
1
CANCEL
CANCEL
Setting the Auto Track Spacing
Function
STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
2,4
3,5
1
STANDBY/ON
CD1 CD2 CD3
CD REC
PLAY
MODE
•
REC
REC MUTING
REC
SOURCE
MENU
PITCH
0
C
H
A
N
C
E
L
REPEAT CD
PITCH
+
SET
PITCH–
RM
–
SXLR5010A REMOTE CONTROL
CDR
CD EDIT FINALIZE DISPLAY
1 2
4 5
7 8
3
6
9
10
+
10
FAD E SYNCHRO
CONTROL
2,4
3,5
1
CANCEL
CANCEL
(To be continued on the next page)
XL-R5010BK.book Page 29 Monday, June 4, 2001 11:40 AM

JVC XL-R5010BKC Specifications

Power

power requirements	120V, 60Hz
power consumption (power ON mode)	40W
power consumption (STANDBY mode)	5W

Output Terminals

analog output	2V/5kΩ
headphones output	4mW/32Ω
digital optical output	–21dBm - –15 dBm

Weight and Dimensions

dimensions (W x H x D)	435mm x 127mm x 334mm
mass	6.3kg
