JVC XL-R5010BKC User Manual

36
English
English
5
Press the SET button again to confirm the
operation.
•“UNFINALIZE” is shown in the information display as the
unfinalizing procedure is performed. The procedure takes a lit-
tle over a minute, and the level meter is used to indicate approx-
imately how much time is remaining until unfinalization is
complete. Upon completion, the normal display is shown.
* known as Sampling Rate Converter.
The FS converter of this unit performs the conversion of digital sig-
nals from sources that use sampling frequencies other than
44.1kHz to the sampling frequency of 44.1kHz, which is necessary
for recording the signals to a CD-R or CD-RW disc.
• When the FS converter is turned off, the converter is bypassed if
the digital signal of the source has a sampling frequency of
44.1kHz and when analog and multiple input recording are per-
formed.
• If source sampling frequencies of 32kHz or 48kHz are detected,
the FS converter is activated automatically and the signal is
routed through it.
• When the FS converter is turned on, all signals to be recorded
are routed through it regardless of the sampling frequency, even
the 44.1kHz digital signal is passed through it as the converter
works as a filter to reduce signal fluctuation in the disc record-
ing. For this reason, having the function set to “ON” is recom-
mended for most recording purposes.
• When recording specially encoded discs such as dts
*1
,
HDCD
*2
, etc., be sure to turn the converter off (setting to
“OFF”) using the following procedure (see Step 4).
*1
dts is trademark of Digital Theater Systems, Inc.
*2
HDCD

is a registered trademark of Pacific Microsonic, Inc.
Note
• When recording from the 3-CD changer, the sampling rate con-
verter is always turned off.

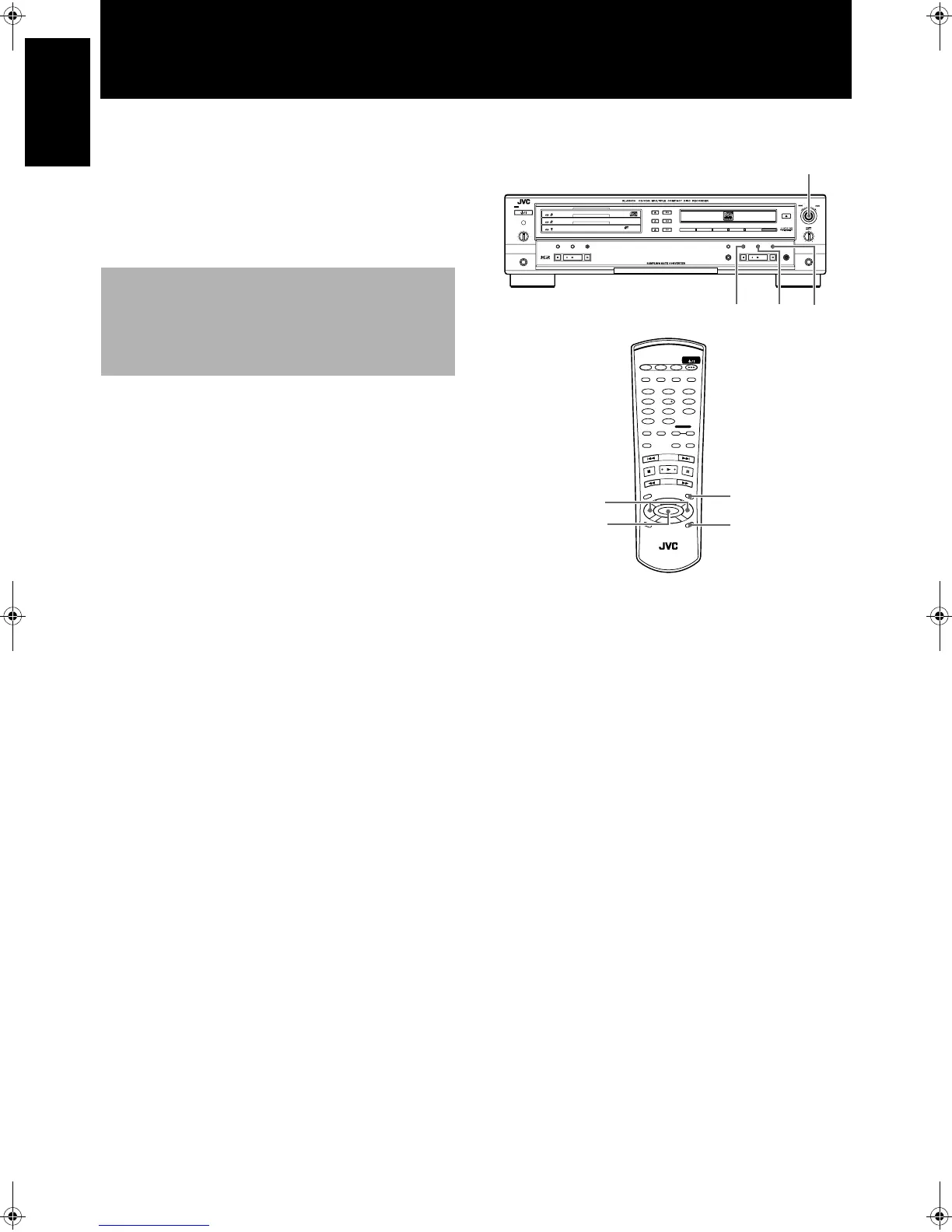

1
When the unit is in the stop mode, press the
MENU button (main unit/remote control).
2
Turn the MULTI JOG control on the main unit or
press the
2
/
3
(menu) button on the remote
control until “CONVERTER” is shown in the
information display.
3
Press the SET button (main unit/remote
control).
• The “CONVERTER ON” is shown and “ON” flashes in the
information display. (The default setting is “ON”.)
• Press the CANCEL button (main unit/remote control) if you do
not wish to perform this procedure.
4
Turn the MULTI JOG control on the main unit or
press the
2
/
3
(menu) button on the remote
control to select “ON” or “OFF”.
• Press the CANCEL button (main unit/remote control) if you do
not want to perform this procedure. The setting is not changed.
5
Press the SET button (main unit/remote
control).
Notes
• Pressing the SYNCHRO button when unlocked displays
"UNLOCK" in the information window and releases the syn-
chronized condition.
Bypassing the FS Converter
(Sampling Frequency
Converter*) for More Efficient
Digital Recording
STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
1 3,5
2,4
STANDBY/ON
CD1 CD2 CD3
CD REC
PLAY
MODE
•
REC
REC MUTING
REC
SOURCE
MENU
PITCH
0
C
H
A
N
C
E
L
REPEAT CD
PITCH
+
SET
PITCH–
RM
–
SXLR5010A REMOTE CONTROL
CDR
CD EDIT FINALIZE DISPLAY
1 2
4 5
7 8
3
6
9
10
+
10
FAD E SYNCHRO
CONTROL
2,4
3,5
1
CANCEL
CANCEL
XL-R5010BK.book Page 36 Monday, June 4, 2001 11:40 AM

JVC XL-R5010BKC Specifications

Power

power requirements	120V, 60Hz
power consumption (power ON mode)	40W
power consumption (STANDBY mode)	5W

Output Terminals

analog output	2V/5kΩ
headphones output	4mW/32Ω
digital optical output	–21dBm - –15 dBm

Weight and Dimensions

dimensions (W x H x D)	435mm x 127mm x 334mm
mass	6.3kg
