5
English
English

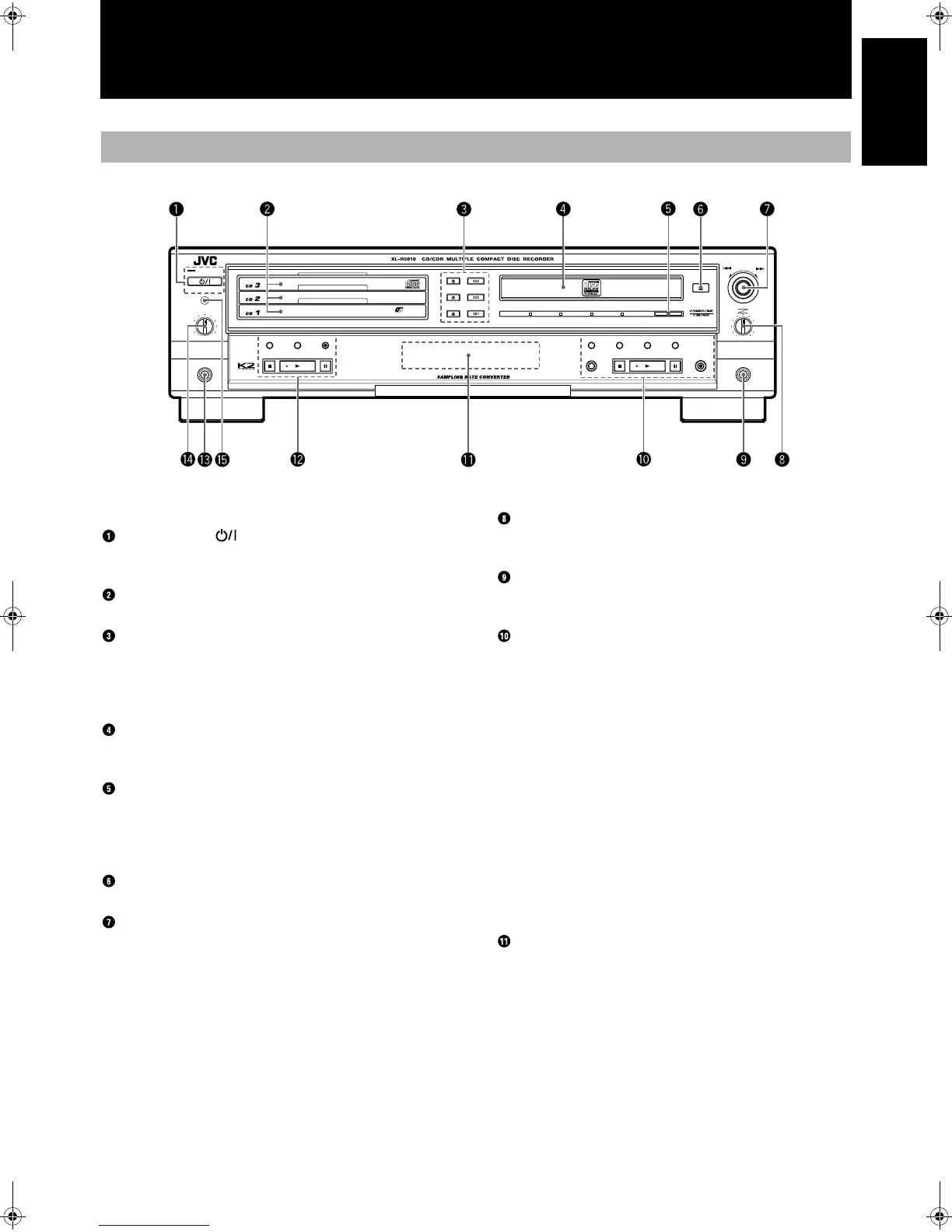

Components
Description
(For details, refer to page in parentheses.)
STANDBY/ON button and STANDBY lamp
Press to turn the power on or to put the unit in standby mode. When
the unit is in standby, the STANDBY lamp is lit. (see page 10)
CD Trays 1, 2, and 3 (numbered from bottom to top)
Load CDs in these trays for 3-CD changer playback. (see page 11)
Disc Tray Selector and 0 (Eject) Buttons
Press to select the tray(s) that you want to play when CDs are
loaded in the 3-CD changer. Icons show the currently selected trays
in the display window. Use the 0 (Eject) buttons to open and close
the corresponding disc trays. (see page 11)
CDR Disc Tray
Load a recordable CD-R or CD-RW in this tray for recording. CD
playback is also possible using this tray.
REC SOURCE SELECTOR and Source Selection
Lamps
Use to select the type of source the signal is to be recorded from.
The selected source is indicated by activation of the lamp under the
source name (located to the left). (see page 21, 30)
EJECT Button (0)
Press to open and close the CDR disc tray.
MULTI JOG/REC LEVEL Control
Use this control for selecting and setting use options, changing
clock settings, skipping forward/backward through tracks on a CD,
etc. Also use it to adjust the level of the source signal when record-
ing discs.
MIX BALANCE Control
Use the MIX BALANCE control to adjust the mixing levels of
independent signals being recorded simultaneously. (see page 32)
MIC (Microphone) Jack
Use this jack to connect a microphone (not supplied) to the unit for
recording.
CDR Control Operation Buttons
SYNCHRO: Press to select synchronized recording.
( seepage30)
MENU: Press to enter the menu options.
SET: Press to enter an operation or selection.
CANCEL: Press to cancel an operation or selection.
FINALIZE: Press to finalize a CD-R/RW disc when recording
has been completed. (see page 35)
STOP 7: Press to stop recording or playing of the CDR.
(see page 11, 22)
PLAY 3: Press to start playing, or resume recording if the
CDR is in the recording pause mode.
(see page 11, 21)
PAUSE 8: Press to pause play or recording. (see page 12)
REC/
REC MUTING: Use to start recording, or when recording to mute
the recording signal. (see page 21, 22, 26, 31)
Display Window
Displays operation modes and system information. (see page 7)
Main Unit
STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
/REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
XL-R5010BK.book Page 5 Monday, June 4, 2001 11:40 AM
