CD numbers and play status displays
Indicate whether discs are loaded in any of the 3-CD changer disc
trays, which disc is currently selected, and the operation status of
the current disc. (see page 12)
PLAY MODE indicators
Light according to which play mode has been selected.
CD PLAYER indicator
Lights when the 3-CD changer is selected for play.
Information display
Displays track, time, and operation information.
SKIP ON indicator
Lights when the currently selected disc contains SKIP TRACK
markers.
CD RECORDER indicator
Lights when the CDR has been selected for play or recording.
HIGH SPEED indicator
Lights when the high-speed (4x, 2x) recording function is being
performed. (see page 29)
SYNCHRO (synchronized) recording indicator
Lights to indicate synchronized recording is on. (see page 24)
AUTO TRACK indicator
Lights when automatic track marking has been turned on.
(see page 23)
Level meters
Indicate the levels of the right and left channels during playback
and recording operations. When the input signal exceeds 0 dB, the
OVER indicator lights. (see page 22)
Disc format indicators
Light to indicate the type of disc that is loaded in the CDR, and
whether or not it is finalized.
CDR deck operation indicators
Light to indicate the operation mode of the CDR.
Recording type indicators and sampling frequency
indicators
Light to indicate whether the recording is analog or digital. During
digital recording, the appropriate frequency indicator lights to indi-
cate the sampling frequency of the source being played back.
Timer operation indicators
Indicate that a Timer play or recording function has been set, and
whether it is set for everyday or one-time operation.
Music calendar
Indicates the number of tracks on the currently selected CD or
CDR, and the track on the disc that is being played or recorded.
EDIT recording indicators
Indicates if the listening edit or program edit mode is being used.
(see page 26, 27)
1CD indicator
Lights at the time either the 1CD or 1 Track recording mode is
selected. Also lights together with REPEAT and 1CD of the PLAY
MODE indicators if PEPEAT 1 is selected when setting the repeat
play mode. (see page 15)
PITCH (+/–) indicators
Indicate that the pitch of CD play has been adjusted in one direc-
tion or the other. (see page 16)
3-CD changer operation indicators
Light to indicate the operation mode of the 3-CD changer.
CD REC indicator
Indicates a CD loaded in the 3-CD changer is being recorded by the
CDR.

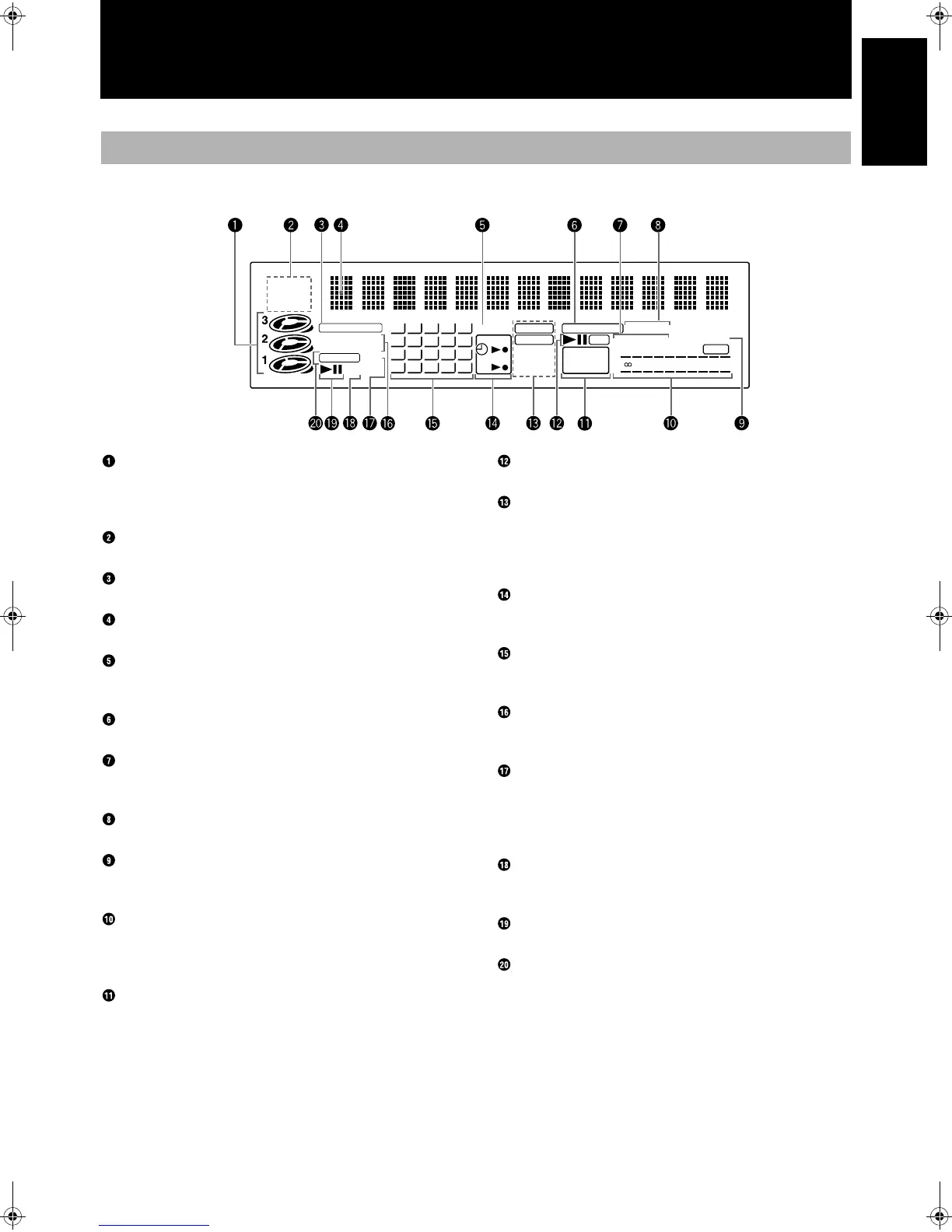

Display Window
PROGRAM
CD PLAYER
CD REC 1CD
12345
678910
11 12 13 14 15
16 17 18 19 20
LISTENING EDIT
SKIP ON
ANALOG CD RECORDER
SYNCHRO
HIGH SPEED AUTO TRACK
DAILY
ONCE
PROGRAM EDIT
RANDOM
REPEAT
–
PITCH
+
ALL 1CD
DIGITAL
32kHz
CD CD-R
CD–RW
FINALIZED
44.1kHz
48kHz
REC
OVER
L
R
–
40 30 20 15 10 dB630
