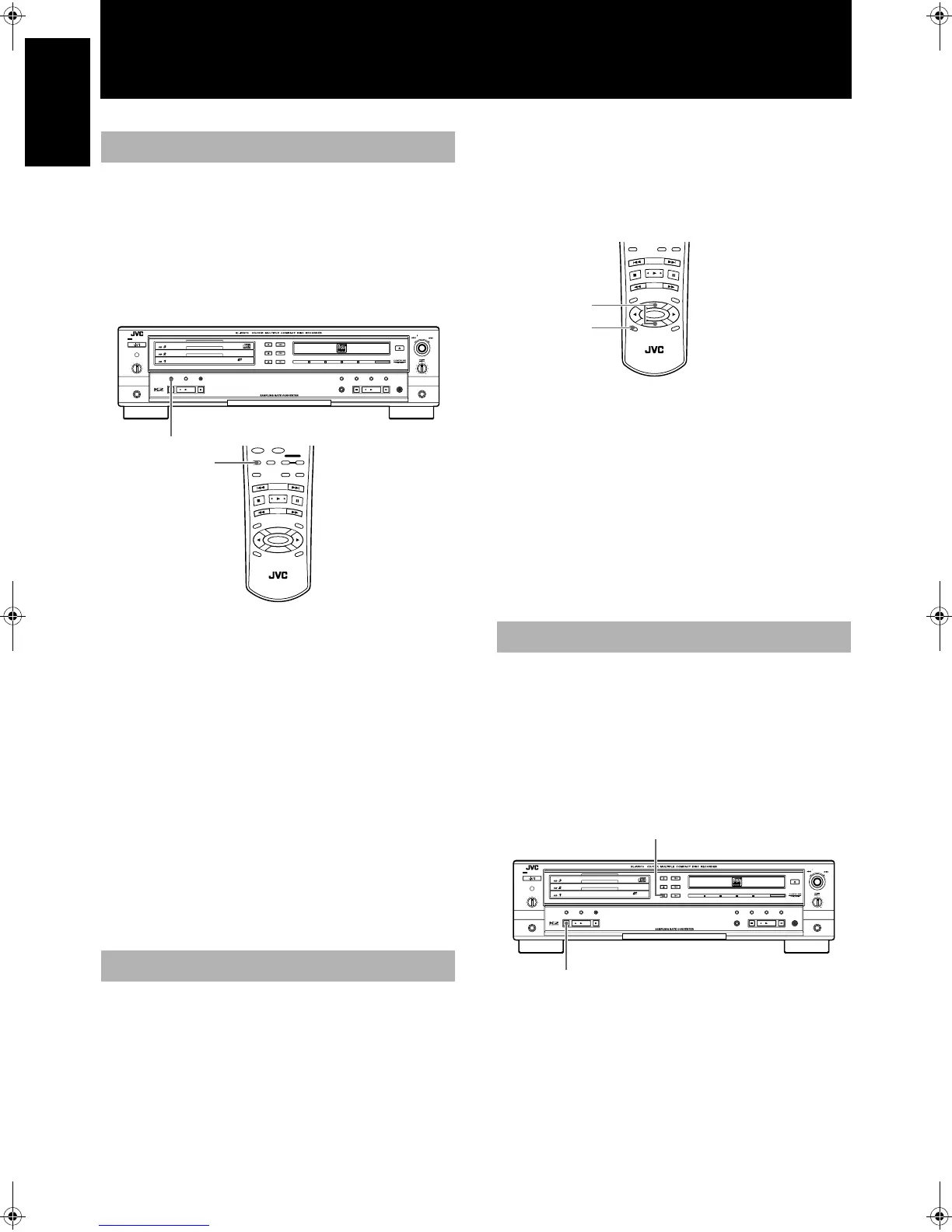

When in the 3-CD changer stop mode (CD PLAYER indicator is
shown in the display window), press the PLAY MODE button
(main unit/remote control) repeatedly until “CD RANDOM” is
shown in the information display. The RANDOM indicator will be
shown in the PLAY MODE section of the display window.
Note
The random playback mode cannot be used for discs loaded in the
CDR.
• Random play is started by pressing the CD Control PLAY 3
button on the main unit or the 3 (play) button on the remote
control.
• When activated, tracks are chosen randomly for playback from
the CDs loaded in the 3-CD changer. The tracks chosen will be
lit in the music calendar and the SKIP ON lamp turns off.
• Selection is made only once, from 1 to 99 tracks, and playback
ends after the last track is played.
• Tracks assigned a SKIP TRACK mark will not be chosen.
• The CD tray, track number and playback time of the CD cur-
rently being played are shown in the information display.
• Track selection via the 10-key input is not accepted during the
random playback mode.
To release the random playback mode
When the unit is in the 3-CD changer stop mode, press the PLAY
MODE button repeatedly until the RANDOM indicator is cleared
from the PLAY MODE section of the display window.
There are 3 CD pitch control buttons on the remote control that can
be used to vary the speed of CD playback up to 12% faster or
slower than the standard playback speed. This function can be use-
ful in changing the pitch when adding vocals to a recording using
the microphone input or when matching the playback speed of the
CD with another source.
To adjust the pitch of a CD during playback
To raise the pitch of CD playback (i.e., increase the speed of play-
back), press PITCH+. Likewise, to lower the pitch of CD playback
(i.e., slow down the speed of playback), press PITCH–.Each press
of a button raises or lowers playback speed 1%(up to 12% max.)
.
• To restore the playback speed to normal, press PITCH 0.
• The adjusted playback speed can only be recorded using analog
recording functions such as mixed recording.
• Even if the pitch has been adjusted, when digital synchronized
recording is performed, the pitch is automatically restored to 0
before recording begins.
• The amount of pitch adjustment (+/-/0) is shown in the informa-
tion display when one of the pitch buttons is pressed.
• When the speed of CD playback is changed using the pitch con-
trol buttons, there is no signal output from the DIGITAL OUT
OPTICAL terminal.
• Pitch control cannot be used for the CDR.
The Disc Lock function can be used to make it impossible for chil-
dren or anyone else to take CDs out of or load new ones into the 3-
CD changer and CDR. This function helps to ensure that timer play
and recording functions are performed correctly.
• When the power is in standby, press the CD1 EJECT 0 button
while holding down the CD Control STOP 7 button on the front
panel. “TRAY LOCKED” will be shown in the information dis-
play for 3 seconds, after which it is no longer possible to
remove from or load CDs into the unit.
To cancel the Disc Lock function.
Repeat the same step followed to lock the trays. “TRAY
UNLOCKED” will be shown in the information display for 3 sec-
onds, after which the Disc Lock function is canceled.
Note
The Disc Lock function is canceled if the AC power cord is
unplugged from the wall outlet.
Random Playback
STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
PLAY
MODE
•
REC
REC MUTING
REC
SOURCE
MENU
PITCH
0
C
H
A
N
C
E
L
REPEAT CD
PITCH
+
SET
PITCH–
RM
–
SXLR5010A REMOTE CONTROL
CDR
10
+
10
FAD E SYNCHRO
CONTROL
PLAY MODE
PLAY MODE
CD Playback Pitch Control
•
REC
REC MUTING
REC
SOURCE
MENU
PITCH
0
C
H
A
N
C
E
L
PITCH +
SET
PITCH–
RM
–
SXLR5010A REMOTE CONTROL
FAD E SYNCHRO
PITCH+/PITCH–
PITCH 0
Disc Lock Function
STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
0
7
XL-R5010BK.book Page 16 Monday, June 4, 2001 11:40 AM

JVC XL-R5010BKC Specifications

Power

power requirements	120V, 60Hz
power consumption (power ON mode)	40W
power consumption (STANDBY mode)	5W

Output Terminals

analog output	2V/5kΩ
headphones output	4mW/32Ω
digital optical output	–21dBm - –15 dBm

Weight and Dimensions

dimensions (W x H x D)	435mm x 127mm x 334mm
mass	6.3kg
