Timer Operations
Before proceeding with timer programming, make sure that the
present time has been set correctly. (see page 38)
• With the exception of the MENU and SET buttons, the timer
settings must be made using the controls on the front panel of
the main unit.
Example: Setting the unit to turn on and play a CD
from 7:15 AM to 8:15 AM.
Note
• The setting of the DAILY TIMER (activated every day) and
ONCE-TIMER (only conducted once and then erased from
memory) is peformed following the same instructions after
selecting the desired timer function.
1
Turn on the power.
2
Insert the CD you want to play into the CD1 tray,
then press STOP
7
77
7
while pressing the CD1 button.
3
Press the MENU button.
• "TRACK ERASE" is shown in the information window.
4
Turn th e M ULTI JOG co ntrol un til “CLOCK/
TIMER” is shown in the information display.
5
Press the SET button.
• "DAILY TIMER" is shown in the information window.
To set DAILY TIMER Proceed to step 6.
To set ONCE TIMER Press the MENU button and display
"ONCE TIMER", and then proceed to
step 6.
6
Press the SET button.
7
Turn the MULTI JOG control on the main unit to
set the hour column to “AM 7”.
8
Press the SET button.
* The hour column stops flashing and the minute column starts
flashing.
9
Turn the MULTI JOG control on the main unit to
set the minutes column to “15”.
10
Press the SET button.
• The off time of the timer is shown and the hour column flashes.
11
Turn the MULTI JOG control on the main unit
to set the hour column to “AM 8”.
12
Press the SET button.
• The hour column stops flashing and the minutes column
flashes.
13
Turn the MULTI JOG control on the main unit
to set the minutes column to “15”.
Timer Play (wake-up play)
STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
5
~
173
1,18
4
~
162
2
STOP
SET
The start time flashes.
MULTI JOG
REC LEVEL
+
–
SET
Time forward
Time
backward

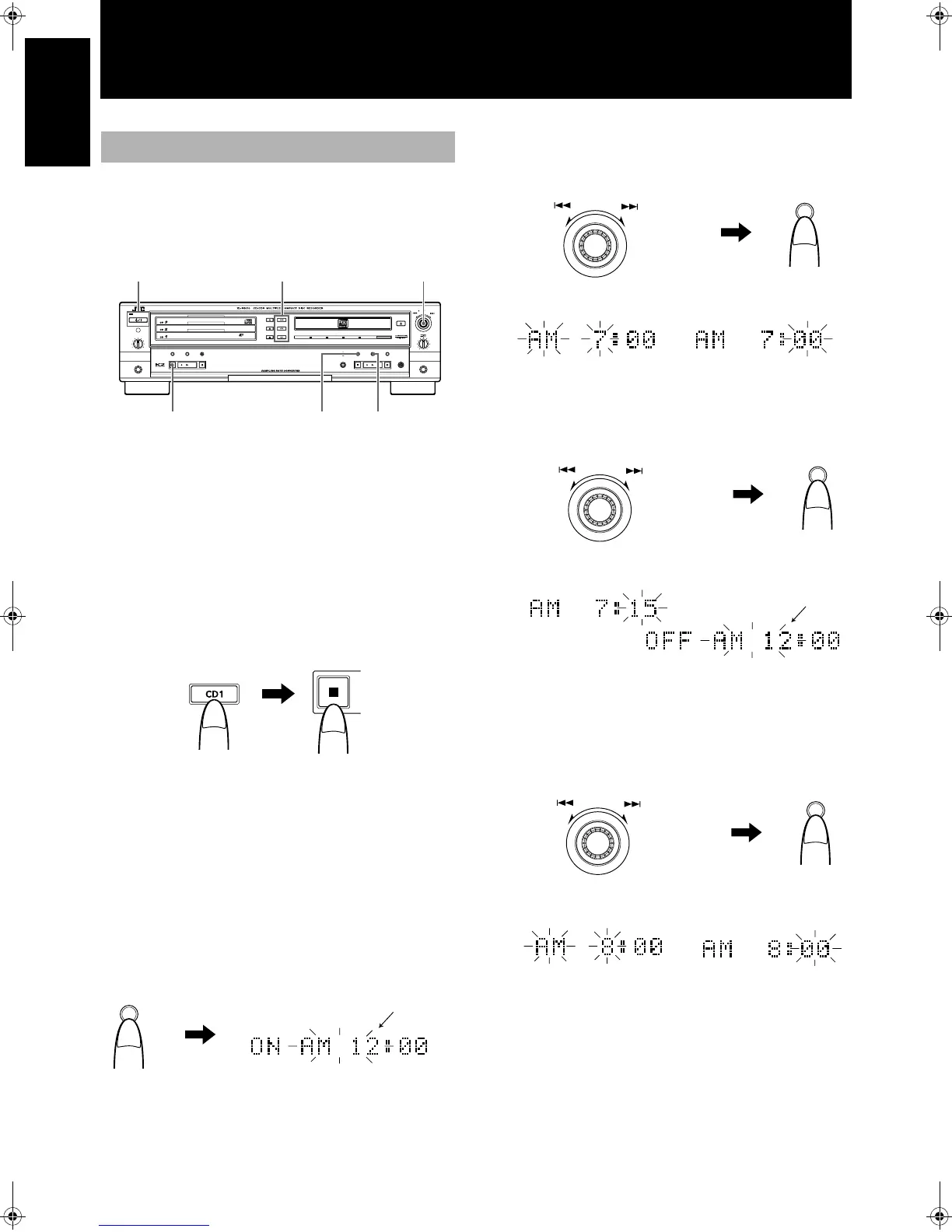

1. Turn the MULTI JOG control
until “AM 7:00” is displayed.
2. Press the SET button.
“AM 7:00” is displayed.
MULTI JOG
REC LEVEL
+
–
SET
Time forward
Time
backward
3. Turn the MULTI JOG control
until “AM 7:15” is displayed.
4. Press the SET button.
“OFF AM 12:00” is displayed.
The end time flashes.
MULTI JOG
REC LEVEL
+
–
SET
Time forward
Time
backward
5. Turn the MULTI JOG control
until “AM 8:00” is displayed.
6. Press the SET button.
“AM 8:00” is displayed.
