Press the SET button.
•“PLAY” is displayed.
• If “REC” flashes rather than “PLAY”, turn the MULT JOG con-
trol until “PLAY” is shown flashing.
Note
• If the CANCEL button is pressed while setting the minutes col-
umn, the procedure returns to the previous step, and the hour
column starts flashing. This is convenient for correcting the
hour column.
15
While “PLAY” is flashing, press the SET
button.
16
Turn the MULTI JOG control on the main unit
to set the function to CD or CDR.
17
Press the SET button.
• The Daily Timer “DAILY” indicator is shown in the display
window confirming that the play mode is set.
• When setting the ONCE TIMER, the “ONCE” indicator is shown
in the display window confirming that the play mode is set.
Example: DAILY TIMER
• If “REC” should flash rather than “PLAY”, turn the MULTI
JOG control on the main unit until “PLAY” is shown flashing.
18
Set the power to standby mode.
Notes
• Timer functions cannot be performed if the unit is on when the
set time arrives. Make sure that the unit is put in standby for
timer functions to operate.
• Match the connected receiver or other source with the unit’s set-
ting, and adjust the volume to the appropriate level. Match the
timer with the unit’s setting.
• Timer play starts at the programmed start time, and the power is
switched to the standby mode at the programmed end time.
Clearing a timer operation
From Standby Mode
1
Press the MENU button to display “DAILY
TIMER” or “ONCE TIMER”.
2
Press the CANCEL button (main unit/ remote
control).
•“DAILY OFF” or “ONCE OFF” is shown in the information
display, the DAILY 3 (or ONCE 3) indicator is cleared from
the display window, and the timer operation is canceled.
With Unit Power Turned On
1
Follow steps 1 through 5 in "Timer Play (wake-
up play)" to display "DAILY TIMER" or "ONCE
TIMER".
2
Press the CANCEL button.
•“DAILY OFF” or “ONCE OFF” is shown in the information
display the DAILY 3 (or ONCE 3) indicator is cleared from
the display window, and the timer operation is canceled.
MULTI JOG
REC LEVEL
+
–
SET
Time forward
Time
backward

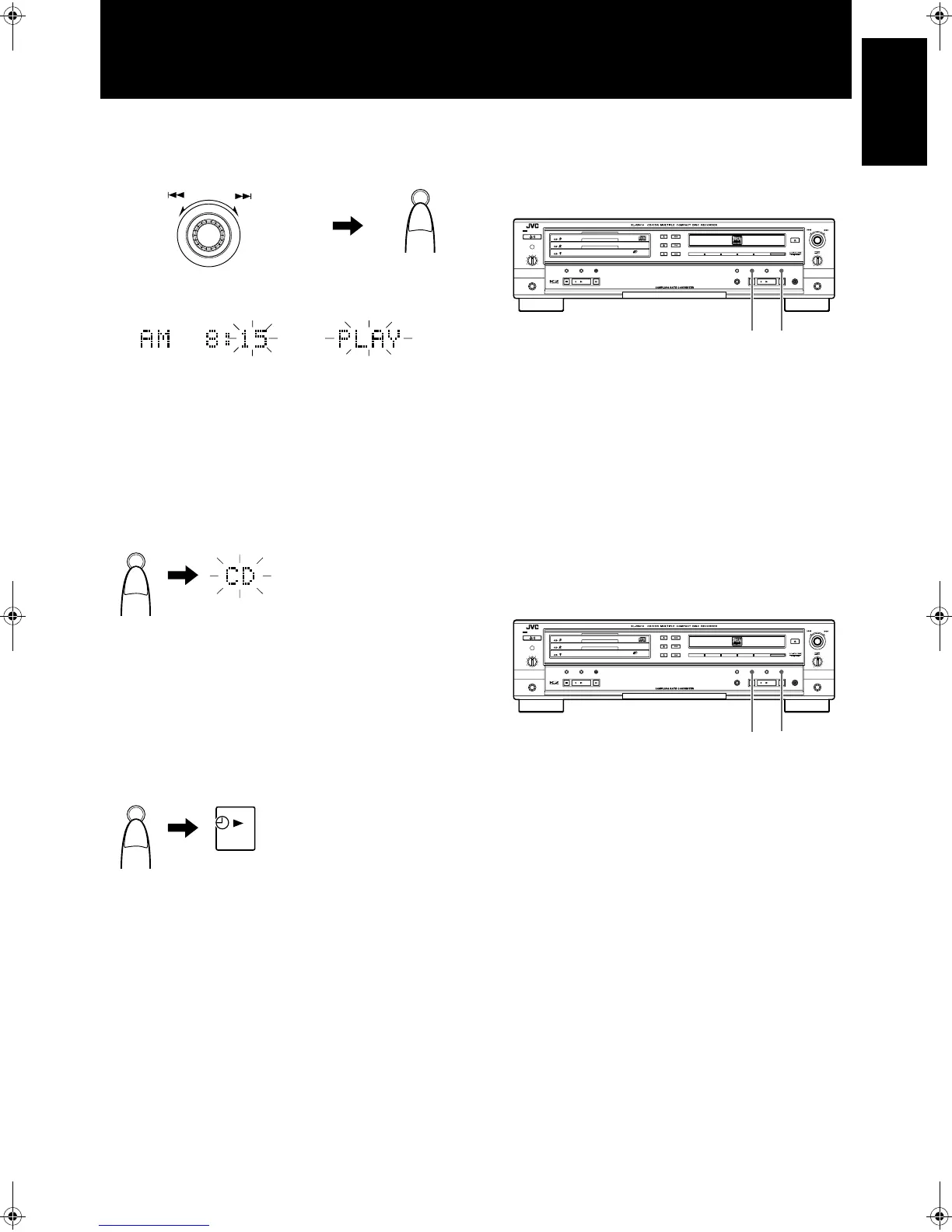

7. Turn the MULTI JOG control
until “AM 8:15” is displayed.
8. Press the SET button.
“PLAY” is displayed.
SET
The timer programming is
displayed once, and then the
normal display is restored.
SET
DAILY
STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
1
2
STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
1
2
XL-R5010BK.book Page 41 Monday, June 4, 2001 11:40 AM

JVC XL-R5010BKC Specifications

Power

power requirements	120V, 60Hz
power consumption (power ON mode)	40W
power consumption (STANDBY mode)	5W

Output Terminals

analog output	2V/5kΩ
headphones output	4mW/32Ω
digital optical output	–21dBm - –15 dBm

Weight and Dimensions

dimensions (W x H x D)	435mm x 127mm x 334mm
mass	6.3kg
