23
English English
AUTO TRACK function off
• Manual track marking offers you the flexibility of placing track
marks anywhere you like in the recording.
• Manual track marking is not possible when the AUTO TRACK
function is on.
To add track marks automatically
1
When the unit is in the stop mode, press the
MENU button (main unit/remote control).
2
Turn the MULTI JOG control or press the 2/
3
(menu) button on the remote control until
“AUTO TRACK” is shown in the information
display.
3
Press the SET button (main unit/remote
control).
4
Turn the MULTI JOG control or press the
2
/
3
(menu) button on the remote control to select
“AUTO TR ON”.
•“ON” will flash in the information display. (The default setting
for this function is on.)
5
Press the SET button (main unit/remote
control).
• The AUTO TRACK indicator is now shown in the display
window.
• Press the CANCEL button (main unit/remote control) to cancel
the procedure and return to the normal display.
Note
In order to prevent the beginning of a song from being cutoff when
changing tracks, digital sources provide a safety variance of 12
frames and analog sources 19 frames.
To add track marks manually
1
Follow the procedure written for selecting the
AUTO TRACK function, but in Step 4, select
AUTO TR OFF.
2
Press the Set button (main unit/remote
control).
• The AUTO TRACK indicator in the display window will turn
off.
• Press the CANCEL button (main unit/remote control) to cancel
the procedure and return to the normal display.
3
During recording, press the SET button (main
unit/remote control) to insert a track mark.
Notes
• Even if automatic track marking is turned off, automatic track
marking will be performed during synchronized one-button
recording. When this occurs, manual track marking is tempo-
rarily disabled.
• Tracks must be at least four seconds in length. Pressing the SET
button less than four seconds after the previous track mark cre-
ates a new track mark once 4 seconds of recording has been per-
formed.
.
Performing synchronized one-button recording of
one entire CD
Note
• It is only possible to record from a CD loaded in the 3-CD
changer using this feature.

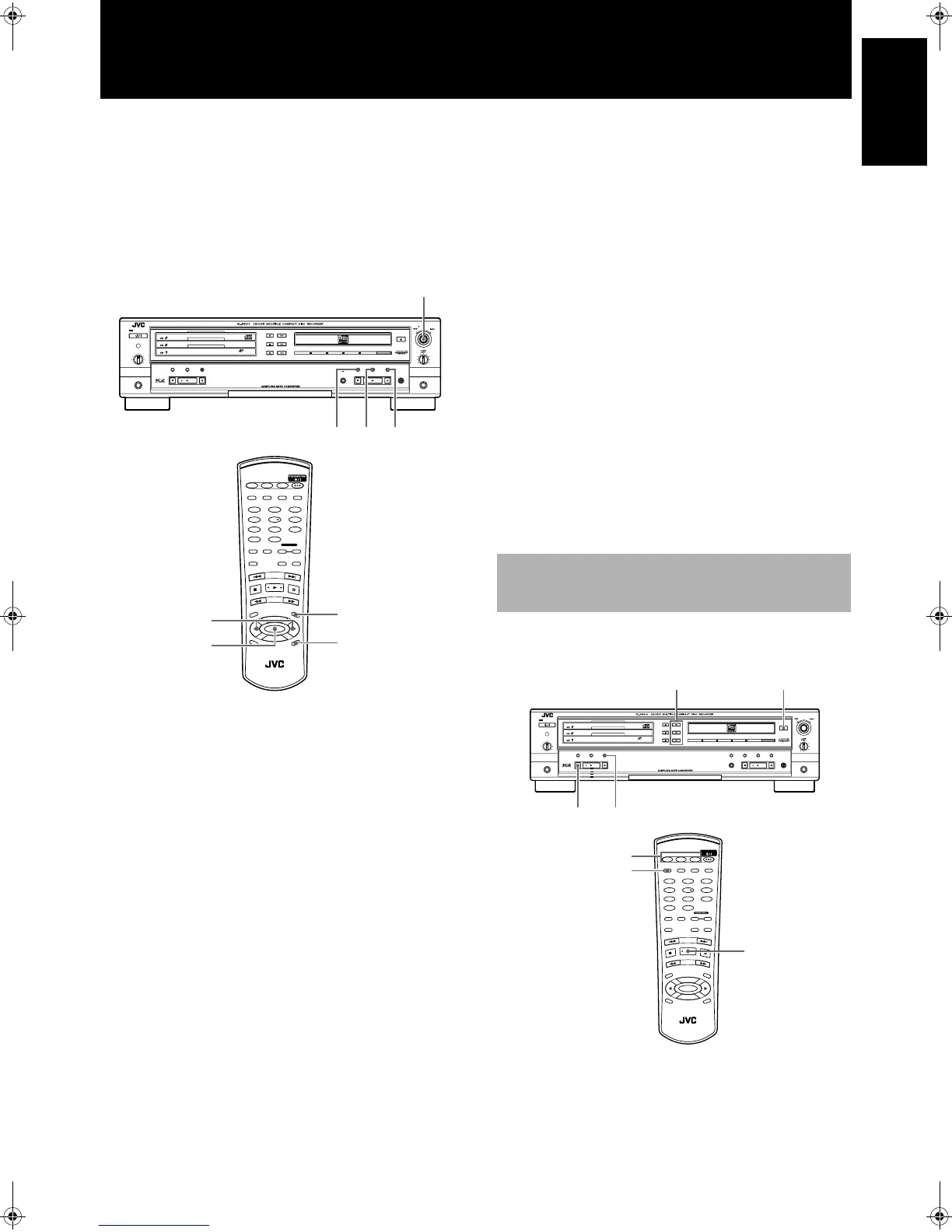

STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
1 3,5
2,4
CD1 CD2 CD3
CD REC
PLAY
MODE
•
REC
REC MUTING
REC
SOURCE
MENU
PITCH
0
C
H
A
N
C
E
L
REPEAT CD
PITCH
+
SET
PITCH–
RM
–
SXLR5010A REMOTE CONTROL
CDR
CD EDIT FINALIZE DISPLAY
1 2
4 5
7 8
3
6
9
10
+
10
FAD E SYNCHRO
CONTROL
2,4
3,5
1
CANCEL
CANCEL
Synchronized Recording
of 3-CD Changer Playback
STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
12
1
3
STANDBY/ON
CD1 CD2 CD3
CD REC
PLAY
MODE
•
REC
REC MUTING
R
EC
S
O
U
R
C
E
M
E
N
U
P
IT
C
H
0
C
H
A
N
C
E
L
REPEAT CD
PITCH
+
SET
PITCH–
RM
–
SXLR5010A REMOTE CONTROL
CDR
CD EDIT FINALIZE DISPLAY
1 2
4 5
7 8
3
6
9
10
+
10
FAD E SYNCHRO
3
1
1
(To be continued on the next page)
XL-R5010BK.book Page 23 Monday, June 4, 2001 11:40 AM

JVC XL-R5010BKC Specifications

Power

power requirements	120V, 60Hz
power consumption (power ON mode)	40W
power consumption (STANDBY mode)	5W

Output Terminals

analog output	2V/5kΩ
headphones output	4mW/32Ω
digital optical output	–21dBm - –15 dBm

Weight and Dimensions

dimensions (W x H x D)	435mm x 127mm x 334mm
mass	6.3kg
