JVC XL-R5010BKC User Manual

24
English
English
1

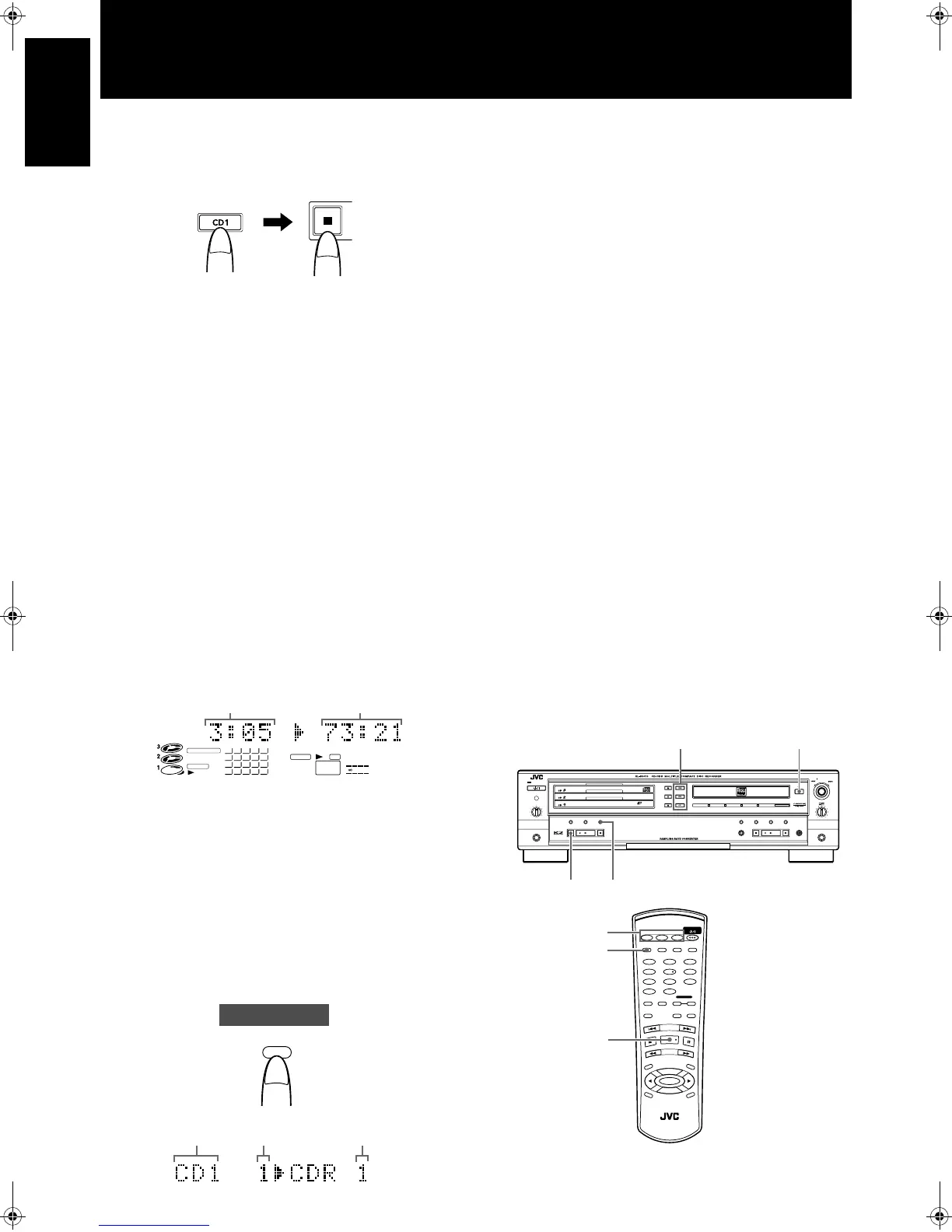

Select and stop the CD to be recorded.
Example: To record the CD loaded in tray CD1.
• Only the selected CD is recorded.
2
Load a recordable CD-R or CD-RW disc into the
CDR and close the tray.
• The disc is read if required.
3
Press the CD REC button (main unit/remote
control) to start recording. “DISC DUBBING” is
shown in the information display
• When a blank disc is in the CDR tray, “UPDATE OPC” is
shown following “DISC DUBBING”.
When “ADD FINALIZE?” is shown in the information
window:
• No response (no input) assumes that finalization is to be per-
formed, or you can press the SET button (main unit/remote con-
trol) to confirm that finalization is to be done. Press the
CANCEL button (main unit/remote control) to keep the disc
unfinalized.
Note
• This message will not be shown if the menu FINALIZE func-
tion setting is “OFF”. The default setting is “ON”.
The 3-CD changer and CDR start simultaneously. (This is
called synchronized recording)
• Recording starts from the first track of the CD.
• When a digital CD is recorded, its signals are recorded in their
original form. Track marks are inserted automatically where
one track changes to the next and track numbers change accord-
ingly.
When the recording of the last song in the CD is
complete, “STOP DUBBING” flashes and recording
automatically stops.
When recorded without canceling "ADD FINALIZE?"
“FINALIZE” is shown in the information window after recording
is stopped and finalization is automatically performed.
Checking a track number during recording
Press the DISPLAY button on the remote control.
To stop the recording at any time
Press the CDR or CD Control STOP 7 button on the main unit or
the 7 (stop) button on the remote control. “STOP DUBBING”
flashes in the information display, and the unit stops recording.
Notes
• There is no need to adjust the recording level when recording a
digital signal.
• If the source CD being recorded from the 3-CD changer is itself
a first-generation digital copy, digital recording cannot be per-
formed. When this occurs, the recording type will switch from
digital to analog automatically.
• This type of recording cannot be started during CD playback. It
must start from the beginning of the first track of the CD.
• When the CD REC button is pressed, the function is automati-
cally switched to CD. This means that when the CD to be
recorded has been selected, recording can proceed straightaway.
• Upon completion of recording, “STOP DUBBING” flashes in
the information display. Always wait for the “STOP DUB-
BING” message to be cleared before proceeding with the next
operation.
• When you try to eject the disc from the CDR tray, “FINAL-
IZE?” is shown in the information display when recording onto
an unfinalized disc. To finalize the disc, press either the SET or
FINALIZE button (main unit/remote control). To skip the final-
ization process, press the EJECT 0 button one more time or the
CANCEL button (main unit/remote control).
• Depending on the disc, the entire CD may not be recorded. In
such a case, use the 1 Disc Dubbing feature (see page 25) to
record.
Performing synchronized one-button recording of
a single track
STOP
CD PLAYER
CD REC
12345
678910
SYNCHRO
HIGH SPEED AUTO TRACK
DIGITAL
CD-R
44.1kHz
REC
L
R
–
40 30 20 15 10 dB630
CD
Remaining play time of
track being recorded
Remaining recording time on
CD-R or CD-RW
Disc source Track number
CD-R or CD-RW
track number
Remote Control
DISPLAY
STANDBY
STANDBY/ON
PLAY & EXCHANGE
3
-
CD
MAXMIN
PHONES
PLAY MODE
PHONES LEVEL
EJECT
REC SOURCE SELECTOR
MIX BLANCE
CD
LINE
LINE
MIC
MULTI JOG
REC LEVEL
+
–
MIC
CANCELSETMENU
PAUSE
REC/
REC MUTING
PLAYSTOP
SYNCHRO
CD EDIT CD REC
STOP PLAY PAUSE
FINALIZE
MICLINECDDIGITAL
12
7
3
STANDBY/ON
CD1 CD2 CD3
CD REC
PLAY
MODE
•
REC
REC MUTING
REC
SOURCE
MENU
PITCH
0
C
H
A
N
C
E
L
REPEAT CD
PITCH
+
SET
PITCH–
RM
–
SXLR5010A REMOTE CONTROL
CDR
CD EDIT FINALIZE DISPLAY
1 2
4 5
7 8
3
6
9
10
+
10
FAD E SYNCHRO
CONTROL
3
1
7
XL-R5010BK.book Page 24 Monday, June 4, 2001 11:40 AM

JVC XL-R5010BKC Specifications

Power

power requirements	120V, 60Hz
power consumption (power ON mode)	40W
power consumption (STANDBY mode)	5W

Output Terminals

analog output	2V/5kΩ
headphones output	4mW/32Ω
digital optical output	–21dBm - –15 dBm

Weight and Dimensions

dimensions (W x H x D)	435mm x 127mm x 334mm
mass	6.3kg
