TECHNICAL DESCRIPTION Kamstrup 162M/382M
5512-1040 GB/05.2012/Rev. C1
28
S0
S0-LED

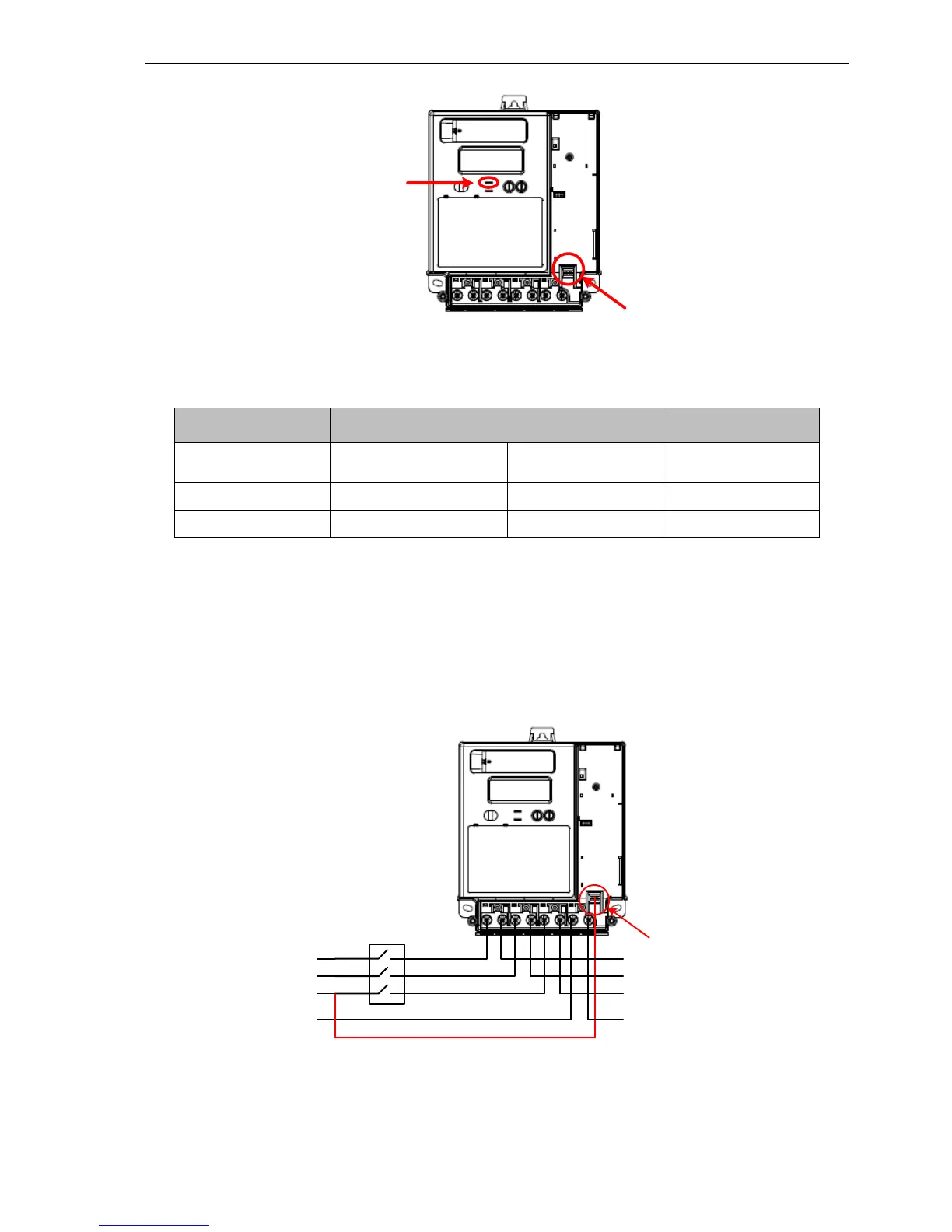

Figure 11: The S0 output on a three-phase meter.
Table 12 lists the technical specification for the S0 output.
The status of
the pulse sensor
Test conditions Test data
Supply voltage
U
B
Internal resistance
R
V
Current through the
SO output
On (active) 18 V DC
1 k
i
> 10 mA
Off (inactive) 27 V DC
1 k
i
< 2 mA
Table 12: S0 technical specification.
On the three-phase meter with APS (Auxillary Power Supply) the S0-output is not available. S0 output can then
only be achieved as a module interface.
3.8 Auxillary Power Supply
The meter can optional be configured with an Auxillary Power Supply (APS) functionality. The function allows to
supply the meter with 230VAC on a separate input as shown in Figure 12. The functionality is usefull when a
external breaker is installed before the meter in an installation.
L1
L3
L2
N
APS
Figure 12: APS functionality.
When the meter is configured for APS functionality it doesn’t have a S0 output, as the connector is used for the
230 V APS input.
