30
4 Display
The display makes it possible to read out the meter’s registers. Which registers depends on the current
configuration. It is possible for customers to select individual display configurations.

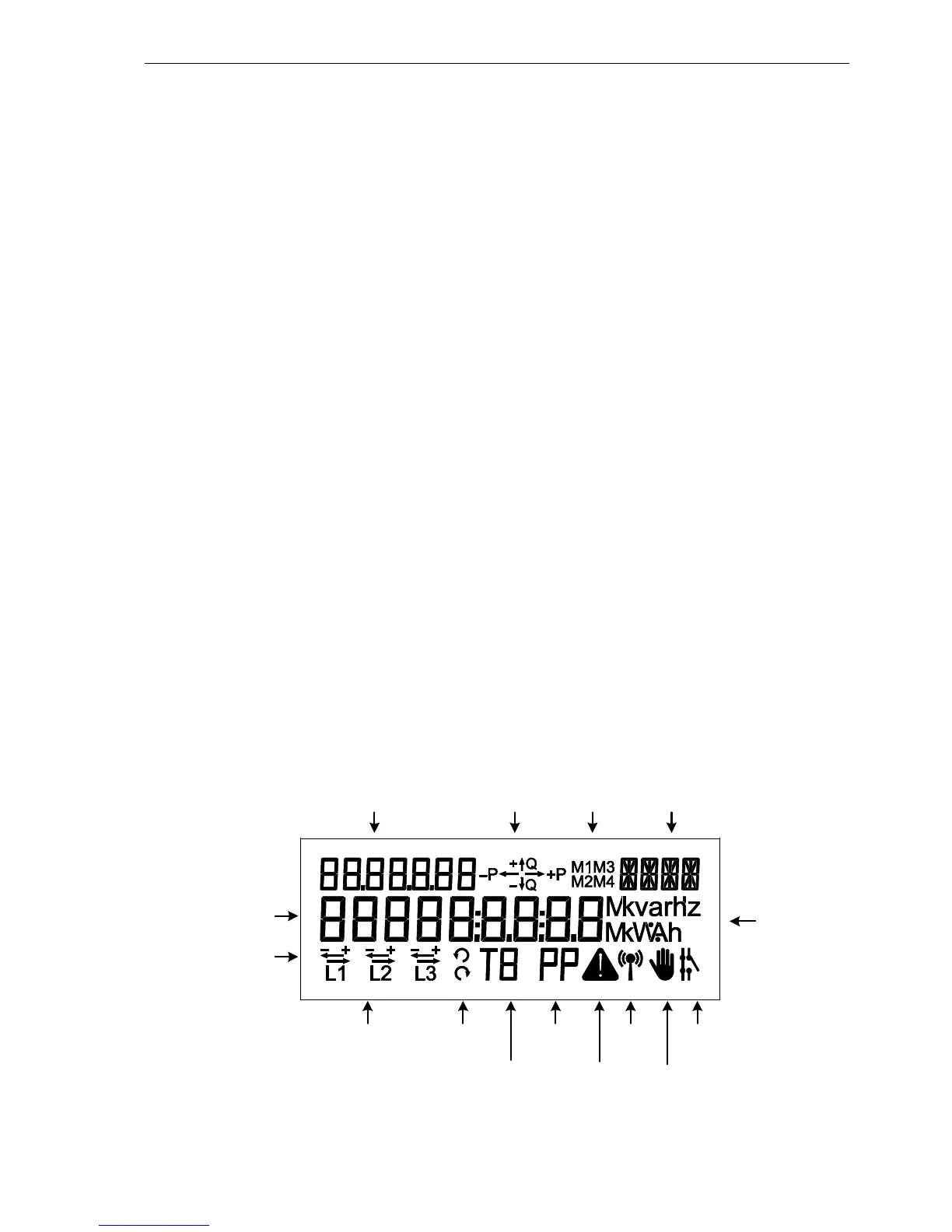

The display is composed by segments as shown in Figure 13 and includes the following readings:
 Value field
 Unit field
 Mains voltage readings of phases L1, L2 and L3
 Phase current direction
 Phase sequence (For future use)
 Module indication (For future use)
 Radio-symbol (For future use)
 Readings of tariffs T1-T8
 Quadrant reading, which states current quadrant(s) and thereby the actual power type P+, P-, Q+, Q-
 Status reading
 Breaker status
 Tamper indication (For future use)
 Prepayment indication (For future use)
 7-digit identification field
 4-digit text-field
The display function depends on the current configuration. The required configuration can be preprogrammed
from the factory or configured by means of the configuration tool METERTOOL for kWh meter. Display
configuration is described in section 4.10.
Quadrant
reading
7-digit identification field
OBIS-field
Value field
Unit
field
Text field
RF-
symbol
Breaker-
symbols
Tamper
symbol
Error-
symbol
prepayment-
symbol
Tariff
reading
Phase
sequence
symbol
Mains voltage
reading
Phase current
indication
Module
indication
Figure 13: Display layout.
