TECHNICAL DESCRIPTION Kamstrup 162M/382M
5512-1040 GB/05.2012/Rev. C1
72

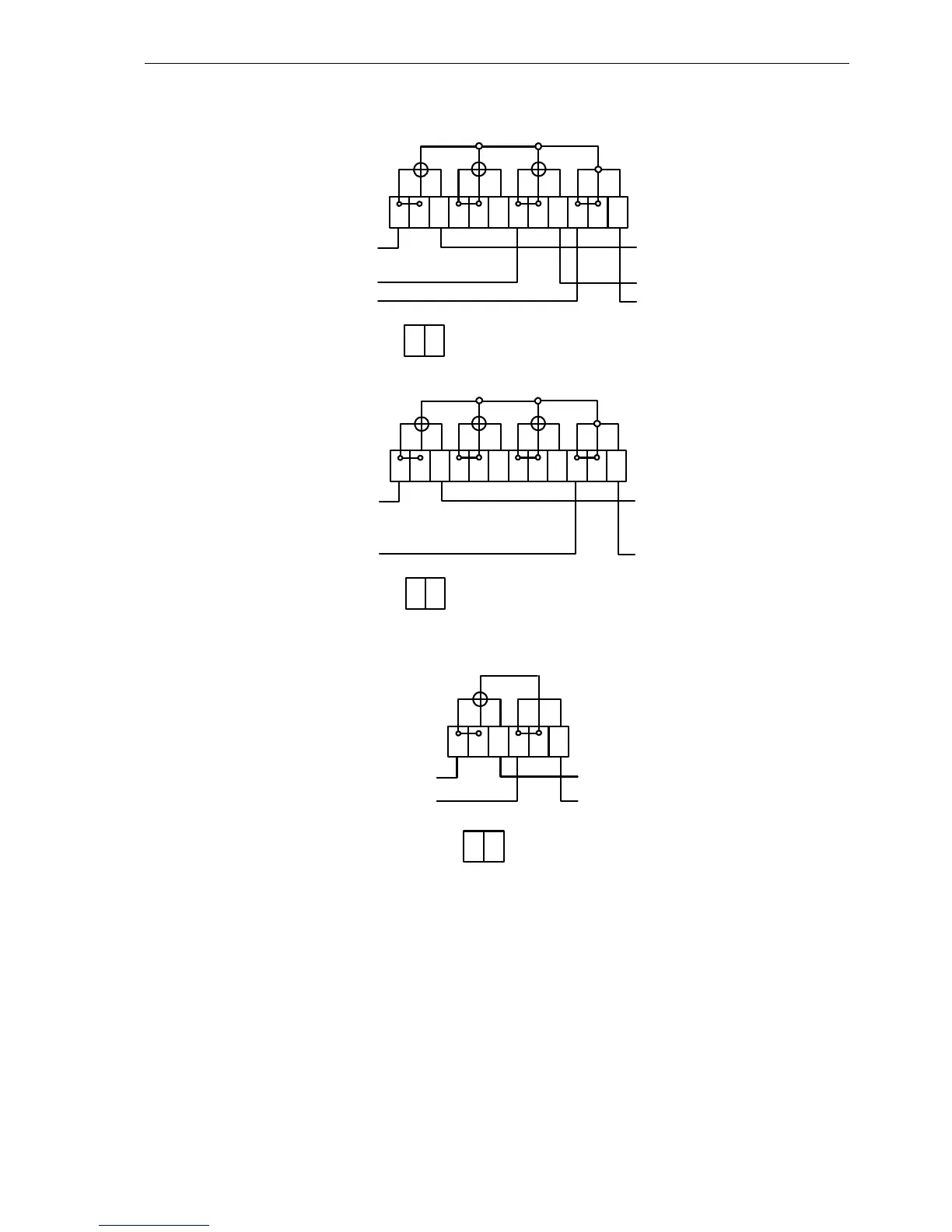

2-phase, 3-wire
1 2 3 4 5 6 7 8 9 10 11 12
L1
L3
N
S0
+
20
-
21
P+
1-phase, 2-wire
1 2 3 4 5 6 7 8 9 10 11 12
L1
N
S0
+
20
-
21
P+
1-phase, 2-wire
1 2 3 4 5 6
L1
N
S0
+
20
-
21
P+
11.3 Guidelines for safety and installation
The meter shall only be used for measuring electrical energy and shall operate within the specified values only.
The meter must be disconnected from mains when working on it. It can be highly dangerous to touch the meter
parts when the meter is supplied from mains.
Therefore, the relevant security must be removed and kept in a place where it cannot be inserted in the meter by
unauthorized persons.
Current local standards, guidelines, regulations and instructions must be observed. Only authorized personnel is
permitted to install electricity meters.
Meters for direct connection must be protected against short circuit by a security in accordance with the
maximum current stated on the meter.
The meter constant LED flashes proportionally to the consumed active energy.
