Instructions for use ELECTROmatic TM and TMM/TMC
3 Description of the product | 3.5 Control panel

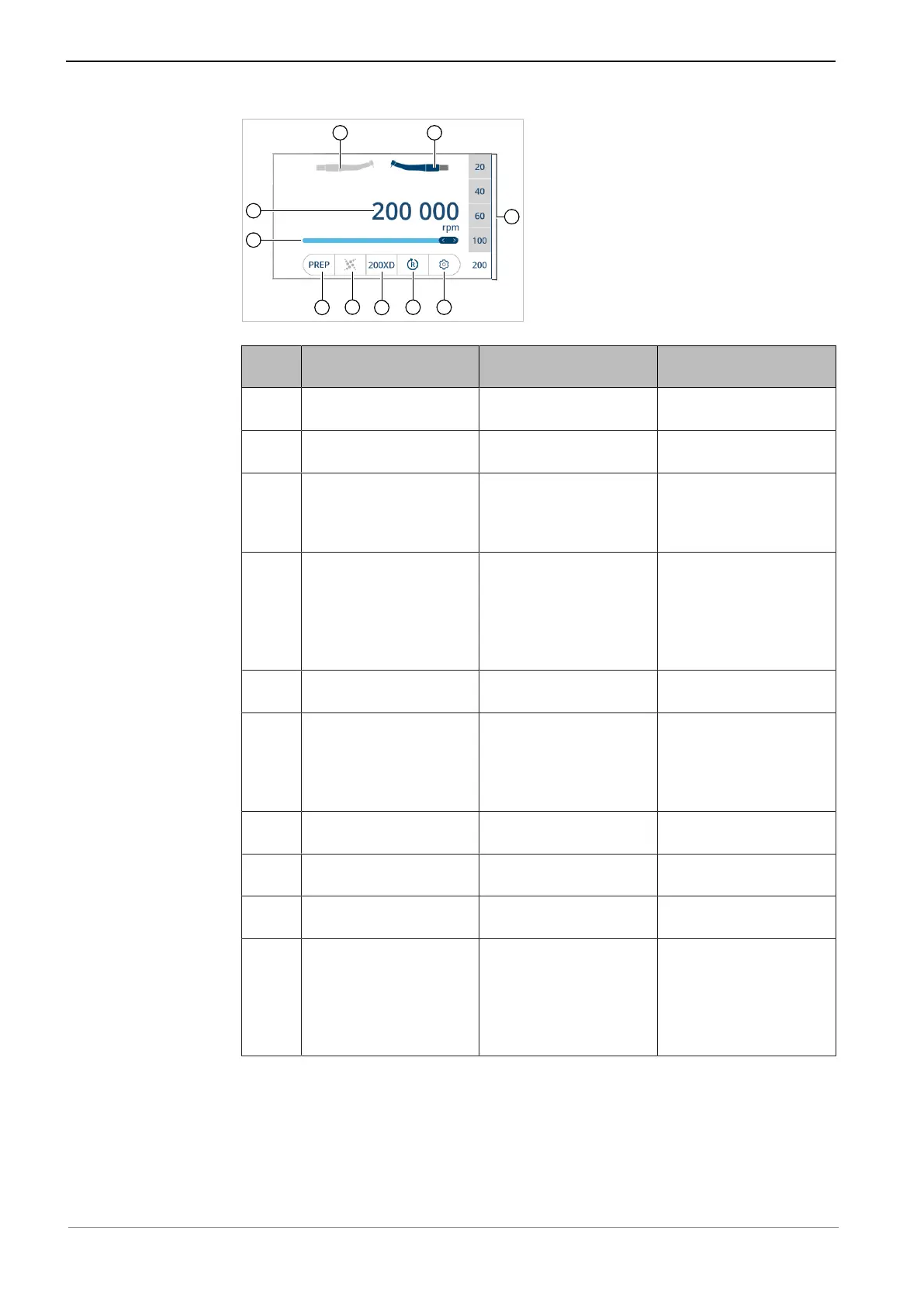

Display information example 2: PREP mode with COMFORTdrive (TMC only)
Pos.
no.
Description active/deactivated Presentation
① Motor M1, anticlock-
wise
deactivated grey background
② Motor M2, clockwise
(TMM/TMC only)
active blue background
③ Selection list "Speed
memory" (x 1000
min
-1
/rpm) for active
motor
200 is activated white background
④ Menu "Settings" deactivated Menu "Settings"
See also:
2 5.4 Making the
device settings,
Page 53
⑤ Toggle switch "Direc-
tion of motor rotation"
Clockwise rotation is
active
R
⑥ The "Instrument trans-
mission ratio" selection
list is not available if
the COMFORTdrive is
connected
not available 200XD
⑦ Toggle switch
"SAFEdrive"
SAFEdrive is active blue background
⑧ Toggle switch
"PREP"/"ENDO" mode
PREP mode is active PREP
blue background
⑨ Slider for speed Speed is maximum Slider shows maximum
setting
⑩ Display "Speed" of the
clamped tool
(depends on the trans-
mission ratio of the
straight and contra-
angle handpiece)
Speed = 200,000 rpm blue background
25 / 90
