E 35
ANTRIEBSTECHNIK

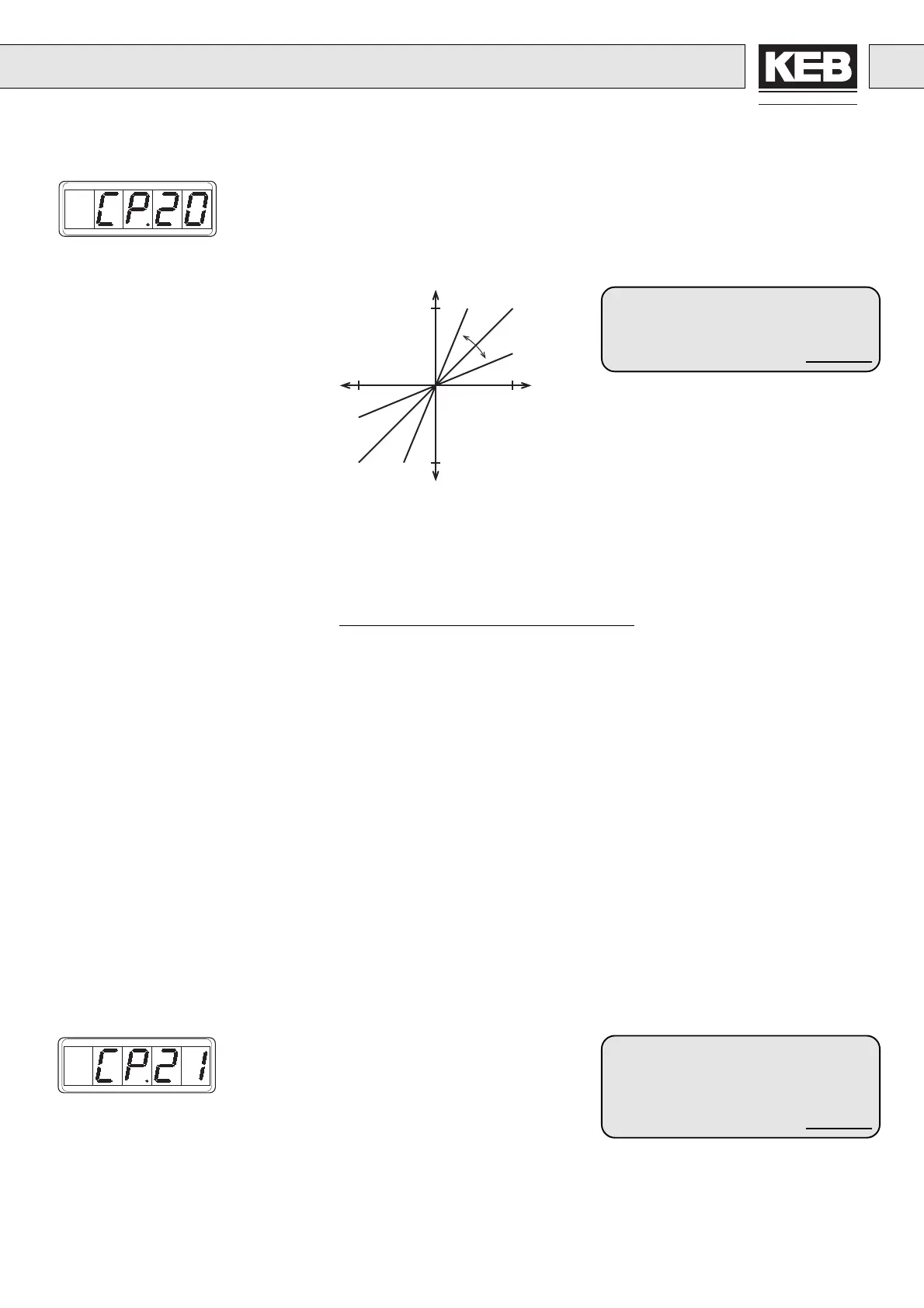

Amplification Output A2
The analog output A2 (terminal X2.19) outputs the current speed of the servo
systems.
Parameter CP.20 defines the amplification of the analog output signal.
Setting range: -20…+20
Resolution: 0,01
Factory setting: +/– n
Rated
= +/–10 V
Customer setting:
^
1)
2)
3)
+10 V
-10 V
- n +n
Calculation Example:
Characteristic 1: Amplification factor 1
Characteristic 2: Amplification factor 2
Characteristic 3: Amplification factor 0,5
Standardization at amplification 1 (CP.20=1):
0…+/– 10 V = -6000…+6000 U/min
^
Rated speed of the servo system: 3000 U/min
At 1000 U/min a measurement shall be taken at analog output A2 +10 V .
value at amplification 1
CP.20 = –––––––––––––––––––––––––
desired value at +10V
6000 U/min
CP.20 = –––––––––––
1000 U/min
CP.20 = 6
Switching Condition Output
D1
Defines the switching condition of
digital output D1.
Setting range: 0…20
Resolution: 1
Factory setting: 20
Remarks: ENTER–Parameter
Customer setting:
! Refer to table Switching Conditions page E 36 !
8. Parameter Description
