Stepping and Scanning
9-11

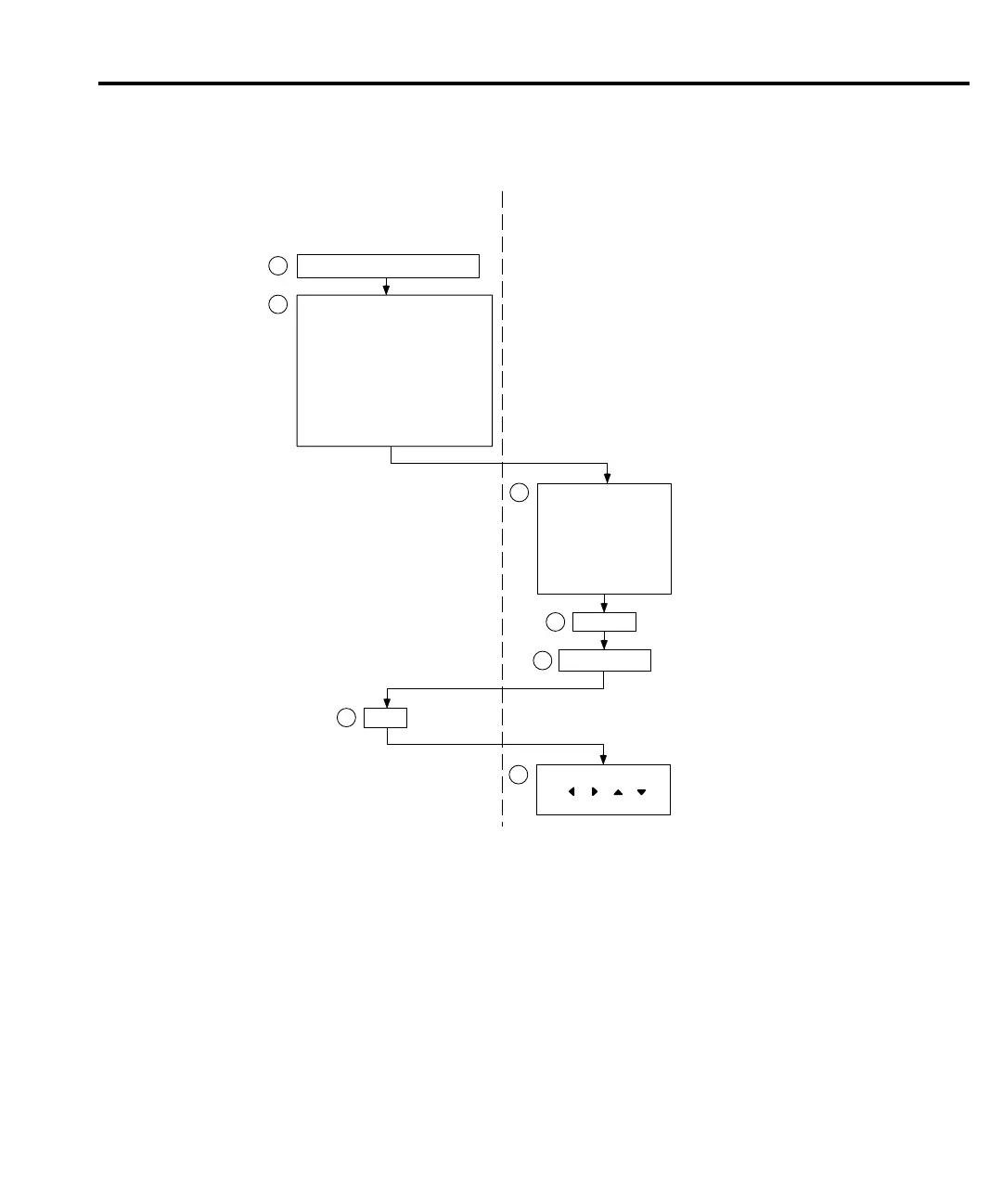

Figure 9-3
External scanning example with Model 7001
Model
7001
(from
“reset
setup”)
SCAN
CHANNELS
1!1-1!8
CONFIGURE
SCAN
CHAN-CONTROL
CHANNEL-SP
ACING
TRIGLINK
ASYNCHRONOUS
CHAN-COUNT
8
SCAN-CONTROL
SCAN-COUNT
1
Model
2182
(from
“factory
setup”)
SHIFT
-CONFIG
TYPE:EXT
MIN
CHAN:
001
MAX
CHAN:
008
TIMER?
OFF
RDG
CNT
:
0008
ENTER
EX
TRIG
STEP
or
SCAN
STEP
RECALL
(8
readings)
,,,
EXIT
1
2
3
4
5
6
7
158
160
