Model 6220/6221 Reference Manual Delta, Pulse Delta, and Differential Conductance 5-59
Return to Section 5 topics
• Model 2182/2182A – After its Trigger Delay expires, the Model 2182/2182A
performs another measurement conversion (A/D Rdg #3). The differential
voltage (dV) is then calculated by the Model 622x. The Model 2182/2182A
outputs trigger pulse back to the Model 622x to output the next stepped cur-
rent level. Figure 5-6 shows the data (reading) flow process from the Model
2182/2182A to the Model 622x.

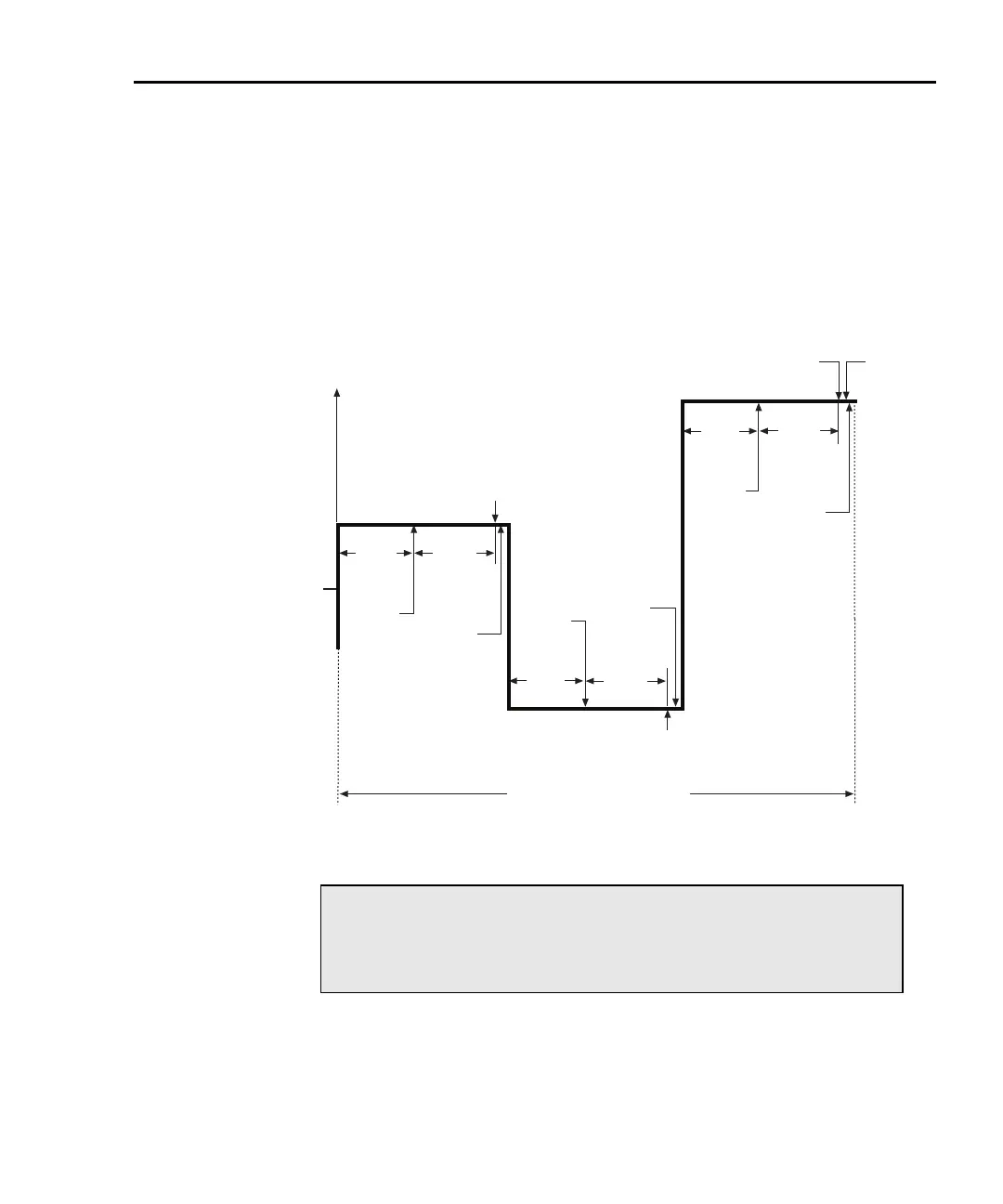

Figure 5-15
Differential Conductance triggering sequence
Operation
Operation – front panel
The system configuration for front panel stand-alone operation is shown in Figure
5-2A on page 5-5.
NOTE Differential Conductance readings from the Mod-
el 2182/2182A will be unfiltered. Noisy readings
can be filtered by the Model 622x before sending
them into the buffer. See Section 6 for details.
622x
Diff
Cond
Delay
622x
Output
Trigger
2182/2182A
A/D Rdg
#2
dV
Calc
622x
I-Source
First dV Calcuation Cycle
Note
Time periods not
drawn to scale.
Start
622x
Output
Trigger
2182/
2182A
Trigger
Delay
2182/2182A
A/D Rdg
#1
2182/
2182A
Output
Trigger
622x
Diff
Cond
Delay
2182/2182A
A/D Rdg
#3
622x
Output
Trigger
622x
Diff
Cond
Delay
2182/
2182A
Output
Trigger
2182/
2182A
Output
Trigger
2182/
2182A
Trigger
Delay
2182/
2182A
Output
Trigger
