Model 6220/6221 Reference Manual Remote Operations 10-31
Return to Section 10 topics

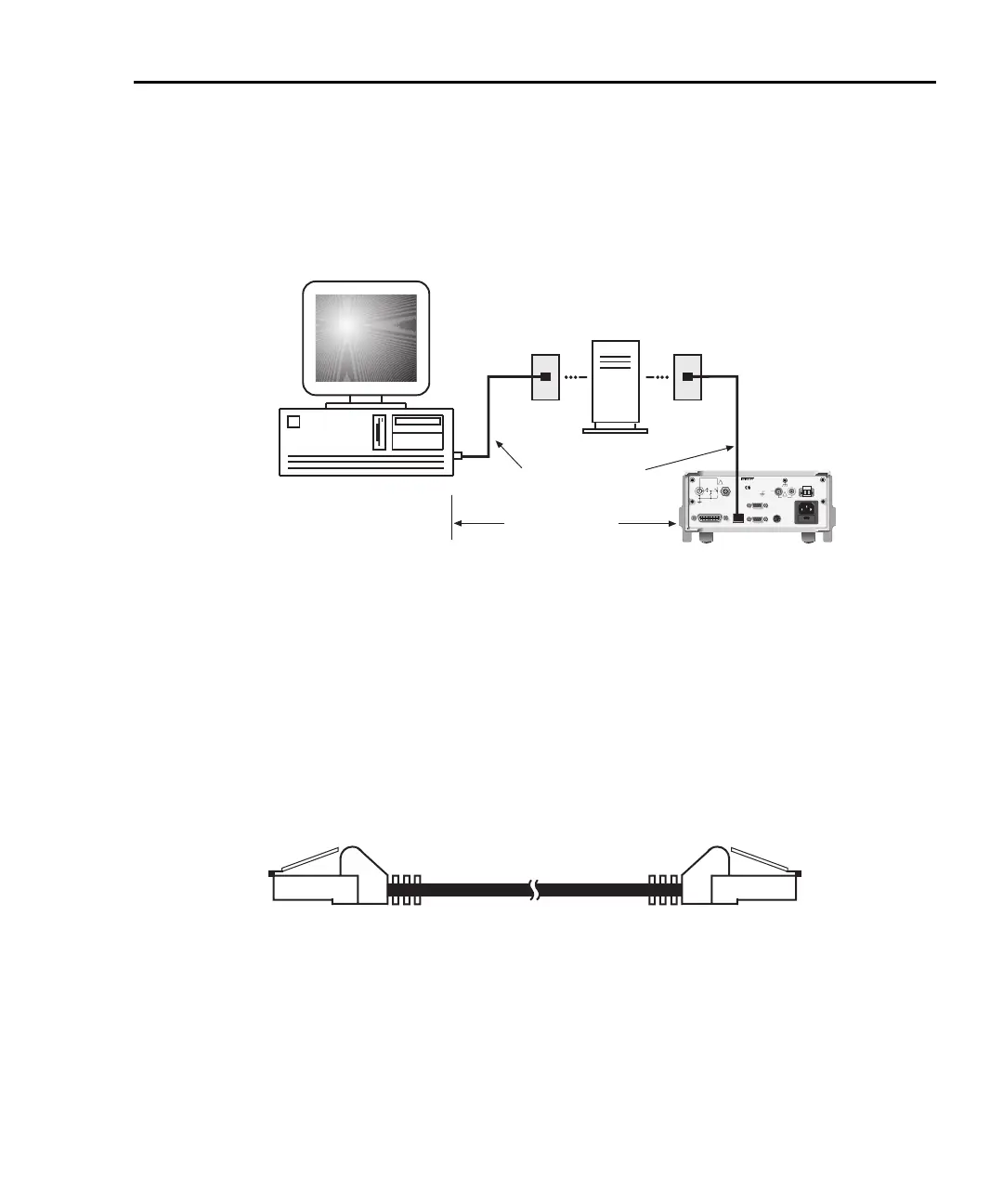

Figure 10-8 shows a simplified diagram of a network system using a router or
servers.
Figure 10-8
Enterprise-wide or internet network system
Ethernet connections
The Model 6221 is connected to the Ethernet using a male-to-male RJ-45 Ether-
net cable (see Figure 10-9). The Ethernet connector for the Model 6221 is shown
in Figure 10-10. With power off, connect one end of the cable to the Model 6221
and connect the other end to the Ethernet connector of the PC, hub, or receptacle.
Figure 10-9
RJ-45 Ethernet cable (male/male)
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
INTERNALLY
SWITCHED
1 AMP MAX.
HI
CABLE
GUARD
105Vpk
LO
105Vpk
250Vpk
OUTPUT
CAT I
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
ETHERNET
10/100 BaseT
10bT 100bT
DIGITAL I/O
RS-232
TRIGGER
LINK
LINE FUSE
SLOWBLOW
1.6A, 250V
LINE RATING
100-240VAC
50, 60Hz
120VA MAX.
250Vpk
105Vpk
LO
GUARD
INTERLOCK
!
!
Unlimited length
PC with NIC installed
Keithley 6221
Ethernet Cables (2)
(RJ-45 male/male)
Enterprise-wide
or Internet
(Router or Servers)
RJ-45
Outlet
RJ-45
Outlet
Ethernet Cable
RJ-45 male-to-male
