10-32 Remote Operations Model 6220/6221 Reference Manual
Return to Section 10 topics
RJ-45 connector status LEDs
The female RJ-45 connector (shown in Figure 10-10) has two status LEDs located
at the top of the connector. These LEDs provide the following status:

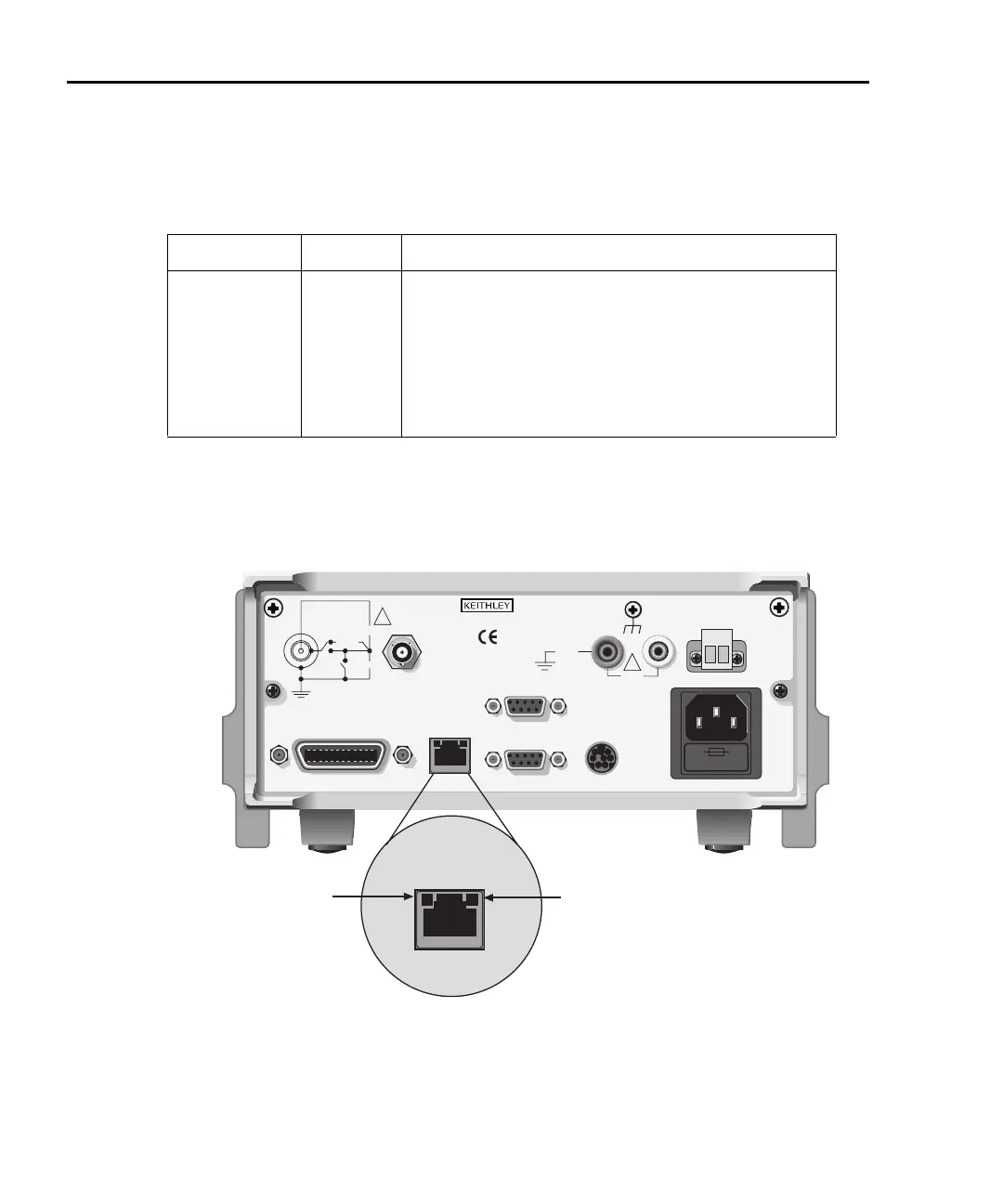

Figure 10-10
Model 6221 Ethernet connector
LED State Ethernet status
10bT
10bT
10bT
100bT
100bT
100bT
On
Blinking
Off
On
Blinking
Off
Network connected (10 mb/s connection).
Traffic is traversing the port (10 mb/s connection).
10 mb/s network is NOT connected.
Network connected (100 mb/s connection).
Traffic is traversing the port.
(100 mb/s connection).
100 mb/s network is NOT connected.
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
INTERNALLY
SWITCHED
1 AMP MAX.
HI
CABLE
GUARD
105Vpk
LO
105Vpk
250Vpk
OUTPUT
CAT I
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
ETHERNET
10/100 BaseT
10bT 100bT
DIGITAL I/O
RS-232
TRIGGER
LINK
LINE FUSE
SLOWBLOW
1.6A, 250V
LINE RATING
100-240VAC
50, 60Hz
120VA MAX.
250Vpk
105Vpk
LO
GUARD
INTERLOCK
!
!
Model 6221
10bT status LED
100bT status LED
ETHERNET
10/100 BaseT
10bT 100bT
