Model 6220/6221 Reference Manual Performance Verification 16-7
Return to Section 16 topics
Figure 16-2

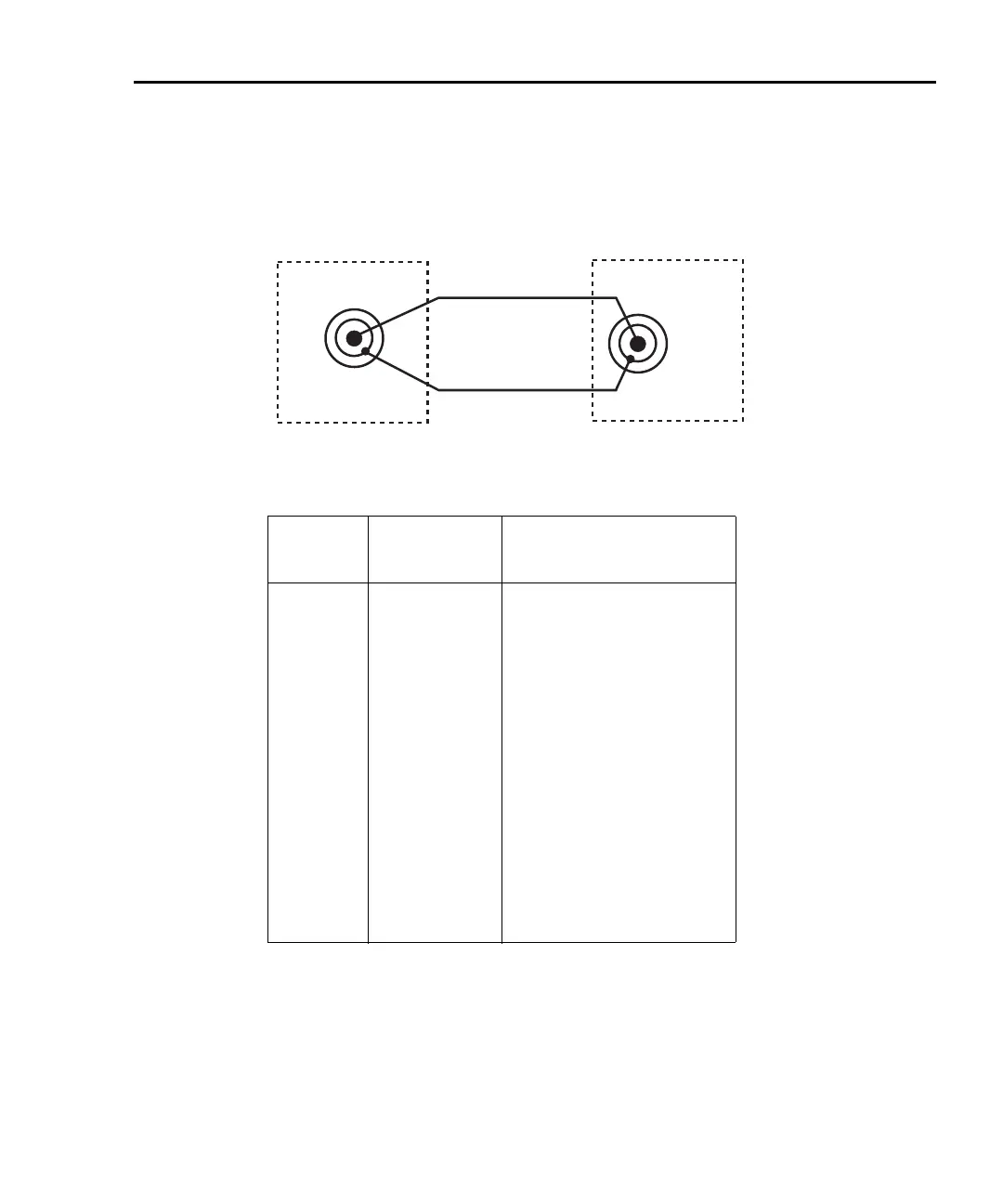

Connections for DC current output accuracy (2nA and 20nA ranges)
Table 16-2
DC current output limits
Range
Output
current
Output current limits
(1 year, 18° to 28°C)
100mA 100.000mA 99.850 to 100.150mA
20mA 20.000mA 19.980 to 20.020mA
2mA 2.0000mA 1.9980 to 2.0020mA
200μA 200.00μA 199.80 to 200.20μA
20μA 20.000μA 19.980 to 20.020μA
2μA 2.0000μA 1.9970 to 2.0030μA
200nA 200.00nA 199.30 to 200.70nA
20nA 20.000nA 19.930 to 20.070nA
2nA 2.0000nA 1.9900 to 2.0100nA
High
Low
Output
6220/6221
Picoammeter
(Measure DC Current)
Input
Low
High
