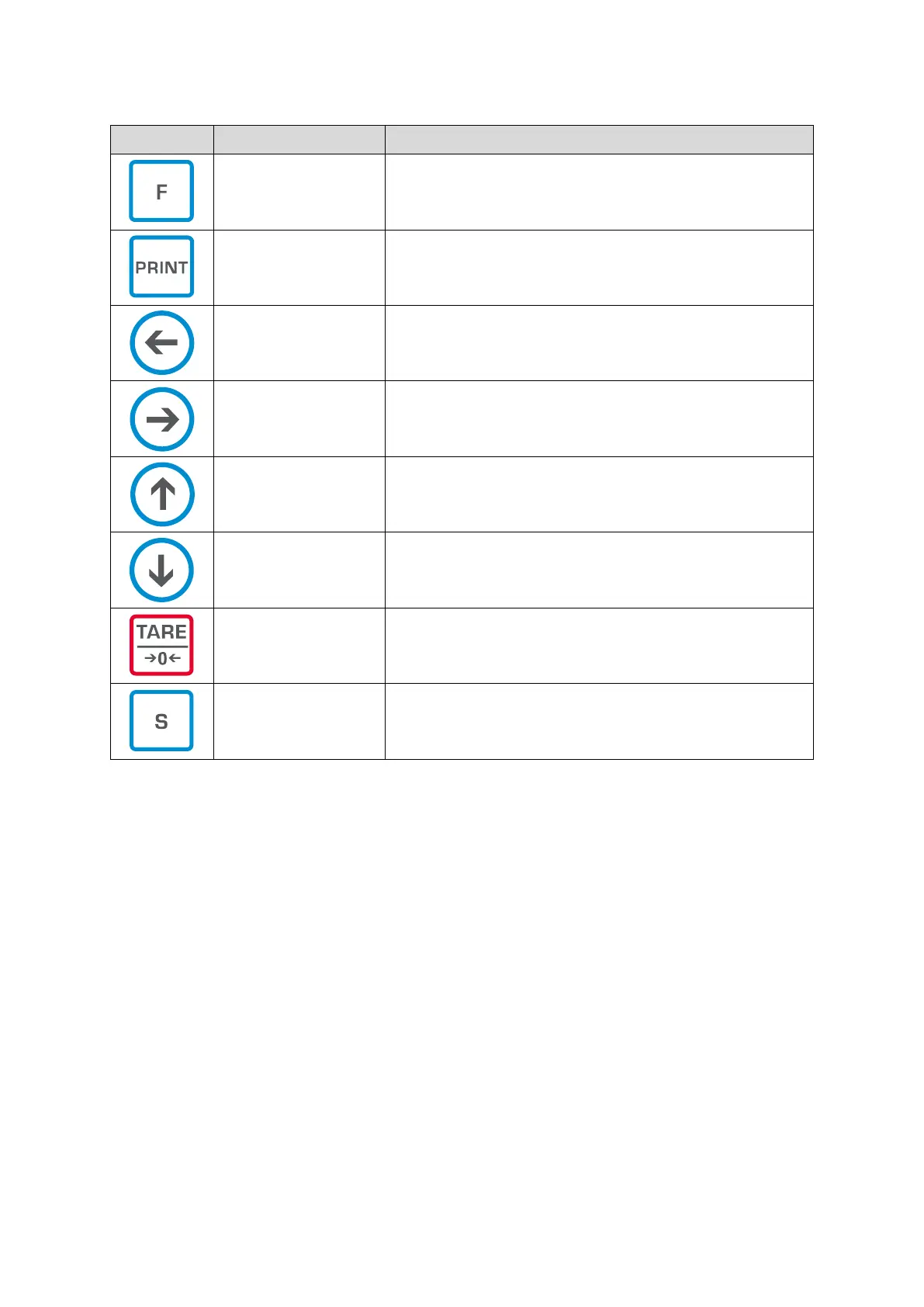

8.3 Navigation in the menu

Button

Designation

Description

[F]

Open menu (press and hold for about 2 seconds)

Next menu level (press shortly)

[PRINT]

Close menu

Cancel input

[]

Next menu level

[]

Previous menu level

[]

Setting selection upwards

[]

Select setting downwards

[TARE/ZERO]

Switch through setting selection

[S]

Storing settings

Table of Contents2
Technical Data5
Declaration of Conformity8
Appliance Overview9
Components9
Operating Elements11
Keyboard Overview12
Numeric Entry13
Display14
Basic Information (General)16
Proper Use16
Improper Use16
Warranty16
Monitoring of Test Resources16
Basic Safety Precautions17
Pay Attention to the Instructions in the Operation Manual17
Personnel Training17
Transport and Storage17
Testing Upon Acceptance17
Packaging / Return Transport17
Unpacking, Installation and Commissioning18
Installation Site, Location of Use18
Unpacking and Check19
Assembling, Installation and Levelling20
Implantation of the Balance20
Installation of the Wind Shield21
Mains Connection22
Installation of the Mains Adapter22
Turning on the Power23
Initial Commissioning23
Connection of Peripheral Appliances23
Menu24
Menu <Func24
Menu Overview24
Enhanced Menu <Func225
Menu Overview25
Navigation in the Menu26
Basic Operation27
Turn On/Off27
Zeroing28
Taring28
Selection of a Weighing Application30
Simple Weighing30
Underfloor Weighing31
Piece Counting32
Percent Weighing35
Density Determination38
Density Table for Liquids42
Data Output of the Specific Density to a Printer43
Weighing with Tolerance Range44
Selection of Weighing Function with Tolerance Range45
Set Distinction Condition45
Setting the Distinction Range45
Set the Number of Tolerance Limits46
Set Distinction Method46
Set Acoustic Signal47
Set Tolerance Display47
Set Data Output48
Setting the Tolerance Values49
Absolute Values49
Differential Values52
Weighing the Samples55
Totalization56
Select the Totalizing Function56
Using the Totalizing Function57
TOTAL-Adding57
NET-Adding58
Clear the Total Sum58
Settings59
Zero-Tracking59
Stability Settings59
Sensitivity59
Display Speed59
Bar Graph Display59
Automatic Sleep Function60
Setting the Weighing Units61
Date and Time61
Set Display Format61
Setting Time and Date61
Automatic Switch-On Function63
Enhanced Settings64
Balance Identification Number64
Measurement Incertainty of the External Adjustment Weight65
Enter Measurement Incertainty65
Take over Measurement Deviation66
Adjustment67
Adjustment with Internal Weight67
Adjustment Test with Internal Weight68
Adjustment with External Weight69
Adjustment Test with External Weight70
Adjustment Record71
Verification72
Interfaces73
RS-232C Interface for Data Input and Output73
Technical Data73
Interface Cable74
DIN8P-Interface to the Data Output74
Technical Data74
Formats of the Data Output (6/7-Digits)75
Data Composition75
Data Description76
Formats of the Data Output (Special Format 1)78
Data Composition78
Data Description78
Error Messages79
Formats of the Data Output (Special Format 2)80
Data Composition80
Data Description80
Error Messages81
Data Output Formats (CBM)82
Data Composition82
Data Description82
Data Input85
Input Format 185
Input Format 287
Response Formats89
A00/Exx Format89
ACK/NAK Format89
Communication Settings90
Enable / Disable Interface and Data Format90
Change Communication Settings91
Interval Output93
Output Functions94
GLP-Compliant Data Output94
Edition of the Time Stamp95
Servicing, Maintenance, Disposal96
Cleaning96
Servicing, Maintenance96
Disposal96
Instant Help for Troubleshooting97
Error Messages98
