13.4 Set the number of tolerance limits
 In the menu navigate to <23. Pi.> and
select the number of tolerance limits
(navigation in the menu: see chap. 8.3)
1
1 limit (rank 1) *
2
2 limits (rank 1 and rank 3) *
3
3 limits (rank 1, rank 2, rank 4) **
4
4 limits (rank 1, rank 2, rank 4, rank 5) **

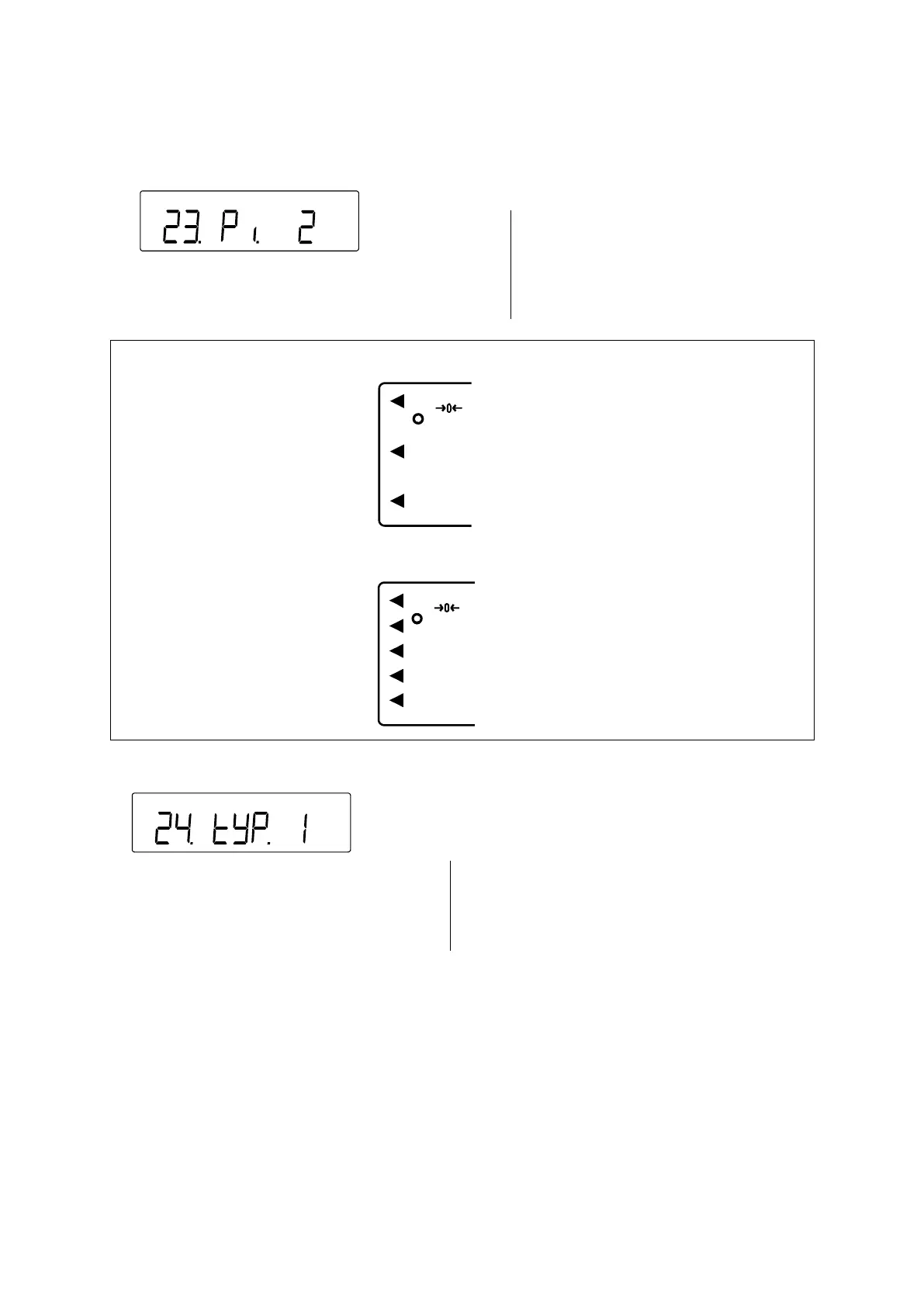

* at <23. Pi.> = 1 or 2:
Rank 3 (limit 2)
+
Upper tolerance limit exceeded
Rank 2
TOL ✓
Within the tolerance range
Rank 1 (limit 1)
-
Lower tolerance limit not reached
** at <23. Pi.> = 3 or 4:
Rank 5 (limit 4)
+
Rank 4 < measured value
Rank 4 (limit 3)
Rank 3 ≤ Measured value < Rank 4
Rank 3
TOL ✓
Rank 2 ≤ Measured value < Rank 3
Rank 2 (limit 2)
Rank 1 ≤ Measured value < Rank 2
Rank 1 (limit 1)
-
Measured value < Rank 1
13.5 Set distinction method
 In the menu navigate to <24. tP.> and select the
distinction method (navigation in the menu: see
chap. 8.3)
1
Assessment with absolute values (Setting the
absolute values: see chap. 13.9.1)
2
Assessment with difference values (Setting the
difference values: see chap. 13.9.2)
