Using the Digital Port Appendix B
Keysight N6700 User’s Guide 105
Configuring the Digital Control Port
Bi-directional Digital I/O
Each of the seven pins can be configured as general purpose bi-
directional digital inputs and outputs. The polarity of the pins can also be
configured. Pin 8 is the signal common for the digital I/O pins. Data is
programmed according to the following bit assignments:
7
6
5
4
3
2
1
6
(msb)
5
4
3
2
1
0
(lsb)
To configure the pins for digital I/O:
Select
s.
Select a pin in the Pin field.
In the Function field, select Dig I/O.
In the Polarity field, select either
Positive or Negative.
To send data to the pins, select
.
Select the Data Out field and enter
the binary word.
To configure the pin function:
DIG:PIN<1-7>:FUNC DIO
To configure pin polarity:
DIG:PIN<1-7>:POL
<pol>
To send data to the pins:
DIG:OUTP:DATA <data>

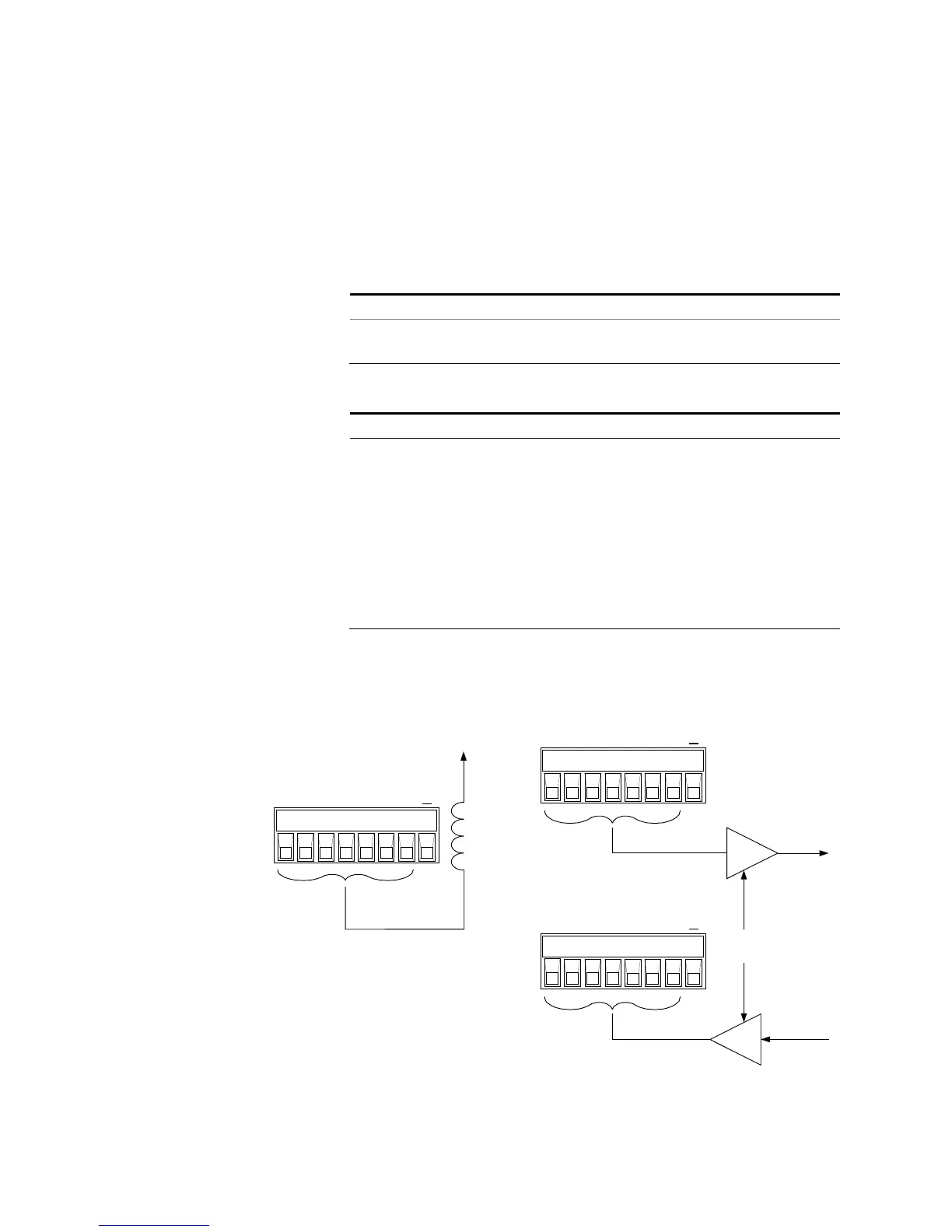

The digital I/O pin can be used to control both relay circuits as well as
digital interface circuits. The following figure illustrates typical relay
circuits as well as digital interface circuit connections using the digital
I/O functions.
B) Digital Interface CircuitsA) Relay Circuits
TTL, AS, CMOS, HC
Relay driver
Pins 1 - 7
(contain internal
clamp diodes for
inductive flyback)
Coil
Current
0.1 A
Max.
16.5 V Max.
Digital Output
Pins 1 - 7
Digital Input
Pins 1 - 7
1 2 3 4 5 6 7
I
1 2 3 4 5 6 7
I
1 2 3 4 5 6 7
I
