1 Quick Reference
12 Keysight N6700 User’s Guide

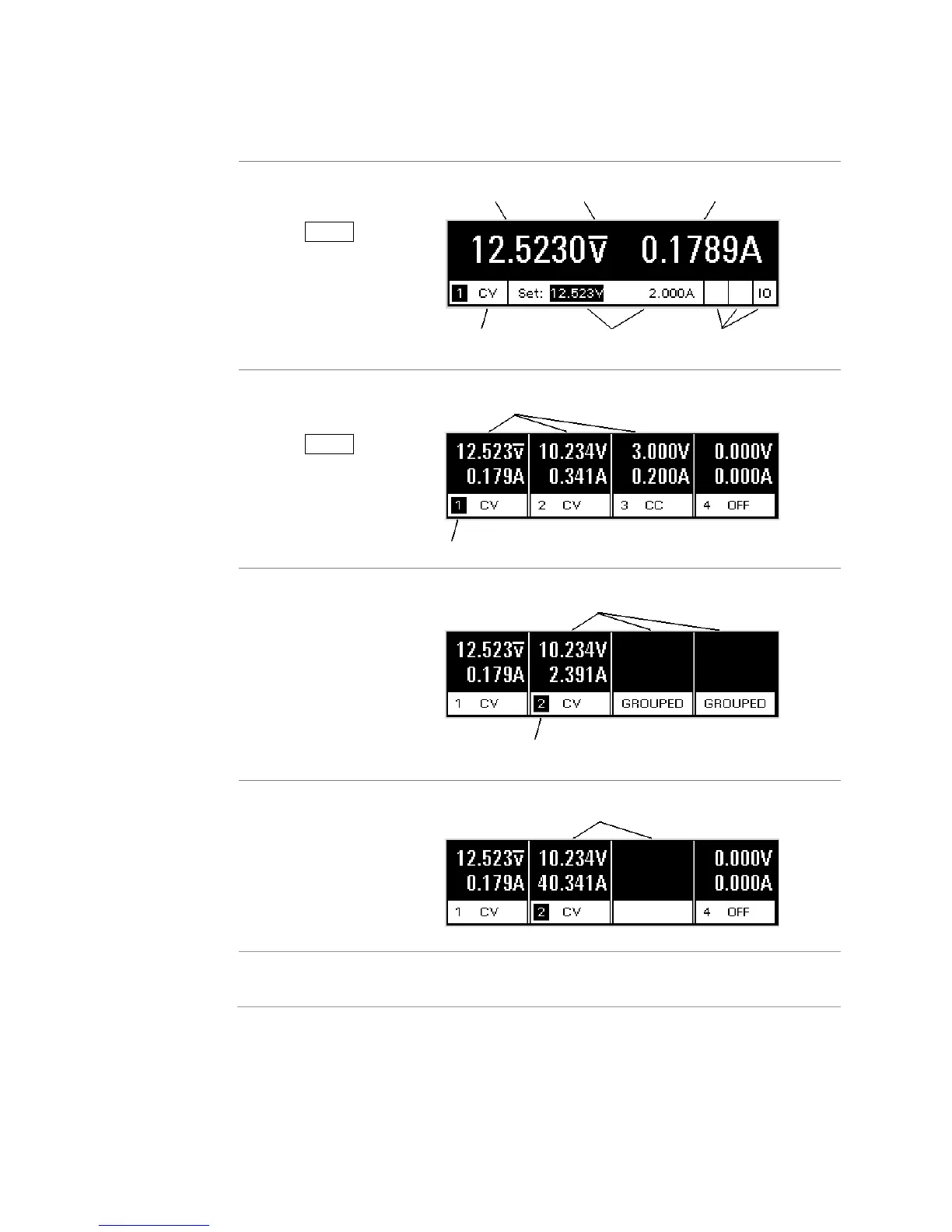

Front Panel Display – At a Glance
Single-channel view
Voltage
measurement
Bar indicates output
polarity is reversed
Current
measurement
Press the
Meter key
to toggle between
views
Operating status
(CV = constant voltage)
Voltage and
current settings
Interface status
(IO = activity on interface)
Multiple-channel
view
Voltage and Current measurements
Press the
Meter key
to toggle between
views
The highlighted channel is the active channel
Grouped-channel
view
Channels 2 through 4 are connected in parallel and have been
configured or grouped to act as a single, higher-power channel
Refer to Chapter 4,
under “System
-
Related Operations”
for more information
Grouped channels are addressed using the channel number of the
lowest
channel in the group
Double-wide view
Channel 2 is a double-wide power module that occupies two channel
locations in the mainframe
Interface status
indicators
Err = an error has occurred (press Error key to display error message)
Lan = the LAN is connected and has been configured
IO = there is activity on one of the remote interfaces
