Quick Reference 1
Keysight N6700 User’s Guide 13
Operating status
indicators
OFF = the output is off
CV = the output is in constant voltage mode
CC = the output is in constant current mode
CP+ = the output is
limited (or disabled) by the positive power limit
CP
– = the output is limited (or disabled) by the negative power limit
V
L+/– = the output is in positive or negative voltage limit mode
C
L+/– = the output is in positive or negative current limit mode
OV =
the output is disabled by the over-voltage protection
OV
– = the output is disabled by the negative over-voltage protection
OC = the output is disabled by the over
-current protection
OT = the over
-temperature protection has tripped
PF = the output is disabl
ed by a power-fail condition
OSC = the output is disabled by the oscillation protection
INH = the output is disabled by an external inhibit signal
UNR = the output is unregulated
PROT = the output is disabled by a condition from a coupled channel

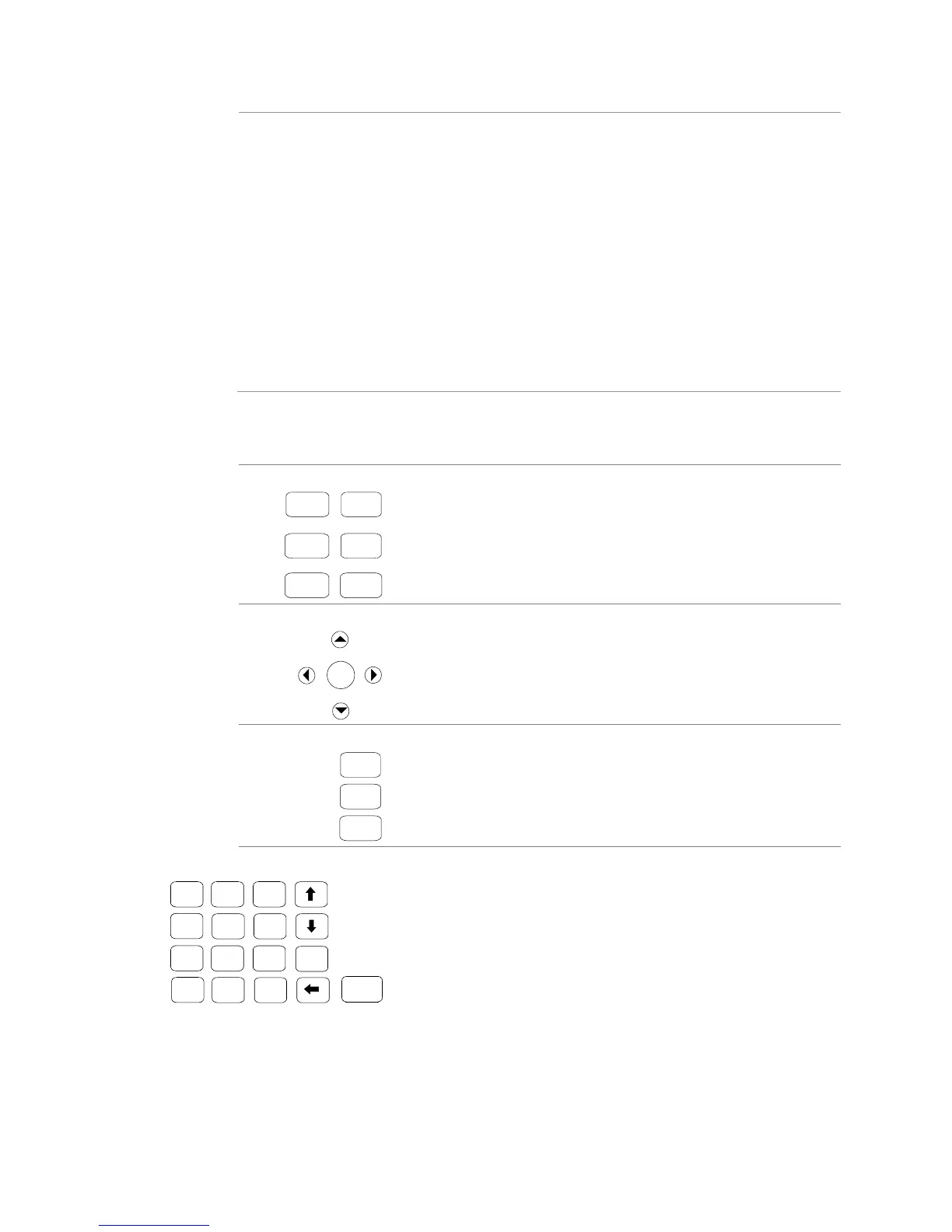

Front Panel Keys – At a Glance
System keys
Menu
Back
Meter
Channel
Help Error
Meter
returns the display to metering mode.
Menu
accesses the command menu.
Channel
selects or highlights a channel to control.
Back
backs out of a menu without activating any changes.
Help
accesses information about the displayed menu control.
Error
displays any error messages in the error queue.
Navigation keys
Sel
The Arrow keys let you move around in the command menus.
The Select k
ey lets you make a selection in the command menus.
It also lets you enter edit mode for numeric parameters.
Output keys
On/Off
Voltage
Current
On/Off
controls the selected output (or all outputs when
All
is lit).
This key is only active in Single- channel or Multiple-channel view.
Voltage
lets you change the voltage setting of the selected channel.
Current
lets you change the current setting of the selected channel.
Number keys
Enter
3
E
+/-
.
2
0
1
4 5
6
987
The 0 through 9 keys enter numbers. The (.) key is the decima
l point.
The +/
− key is only used to enter a minus sign.
The E key enters an exponent. Add the value to the right of the E.
The
 backspace key deletes digits as it backspaces over them.
The
  arrow keys increment or decrement the voltage or current
set
tings. They are also used to select letters in alphabetic entry fields.
The Enter key enters a value. If you exit a field without pressing the Enter
key, the value is ignored.
