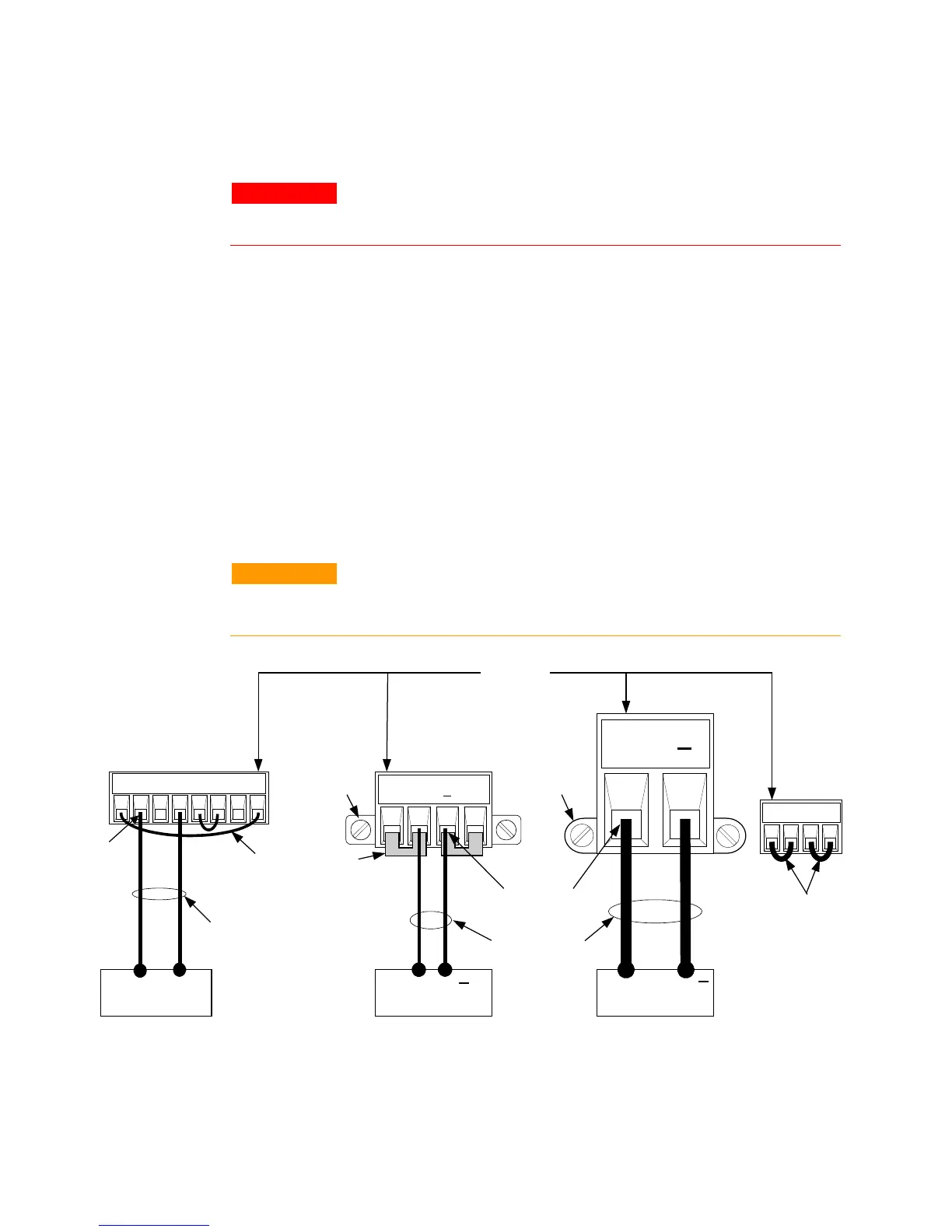

Connecting the Outputs
WARNING
SHOCK HAZARD
Turn off AC power before making rear panel
connections. All wires and straps must be properly connected with the
terminal block screws securely tightened.
Disconnect the connector plug to make your wire connections. The
8A connector plug accepts wires sizes from AWG 14 to AWG 30. The
12A connector plug accepts wires sizes from AWG 12 to AWG 30. The
20A connector plug accepts wires sizes from AWG 10 to AWG 24. The
50A connector plug accepts wires sizes from AWG 6 to AWG 20. Wire
sizes smaller than AWG 20 are not recommended. Connect the load
wires to the + and - terminals. Connect the sense wires to the +s and -s
terminals. Sense jumpers are provided for local sensing.
Securely fasten all wires by tightening the screw terminals. Insert the
connector plug into the back of the unit. Secure the 12 A and 50 A
connector by tightening the locking screws. A chassis ground binding
post is located next to the AC input connector for ground connections.
Part number information for all connector plugs is provided under “Items
Supplied” at the beginning of this chapter.
CAUTION
On power modules with the 50A sense connector, the +LS and –LS
terminals are ONLY used for local sense connections as illustrated. Do
not connect these terminals in any other way.
TIGHTEN
SCREWS
+
LOAD
+
+S +LS -LS -S
50A
SENSE
50 A
CONNECTOR
TWIST LEADS
INSERT WIRES
LOCKING
SCREW
SENSE
JUMPERS
INSTALLED
FOR LOCAL
SENSING
12A & 20 A
CONNECTOR
+S + -S
LOAD
TWIST
LEADS
+
LOCKING
SCREW
INSERT
WIRES
- - G + + +S G -S
8A CONNECTOR
SENSE JUMPERS
INSTALLED FOR
LOCAL SENSING
LOAD
+ -
