The command menu is now at the function control level. This is the
lowest level in this path.

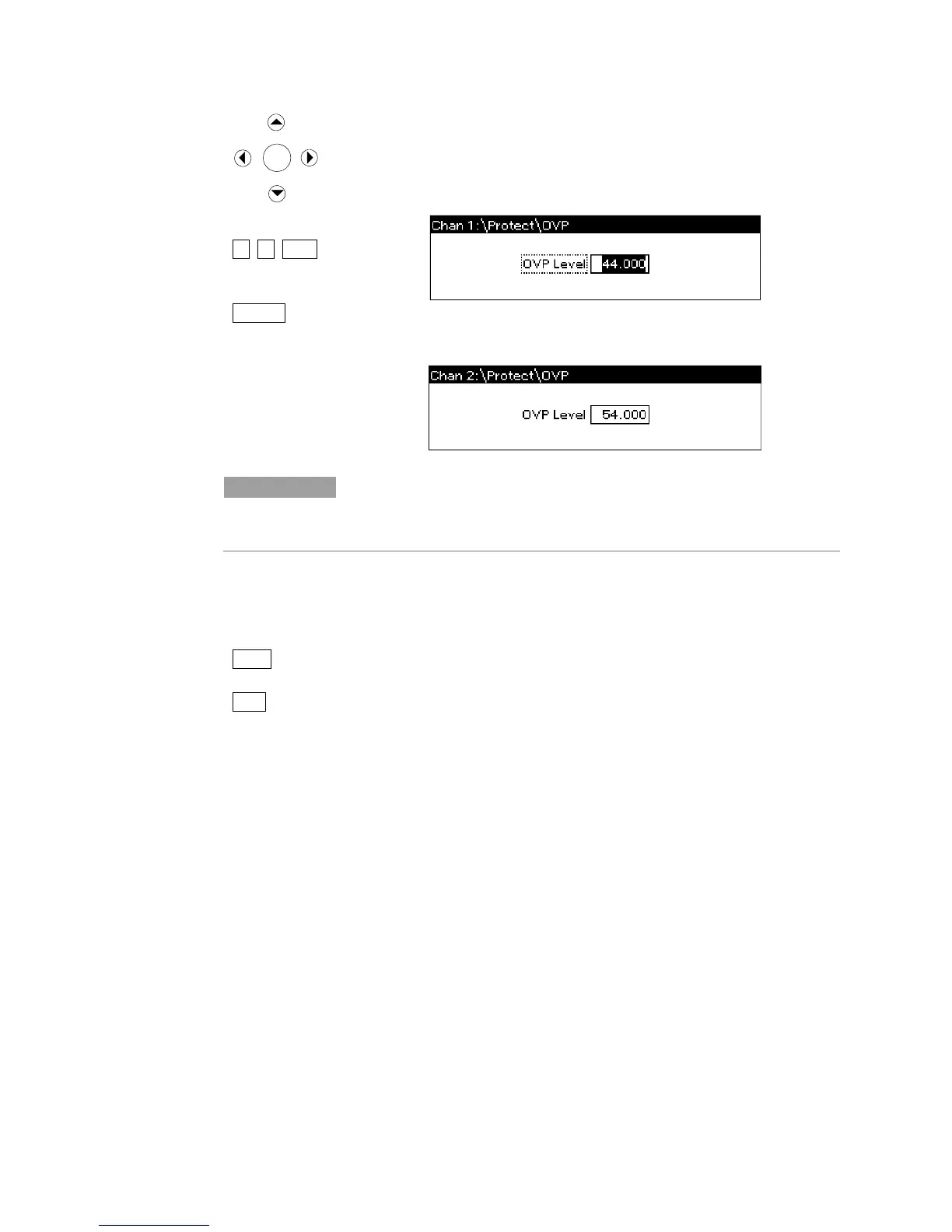

Use the navigation keys to highlight the OVP Level control as shown
below. Enter the desired over-voltage level using the numeric keypad.
Then press Enter.
Press
at any time to select a different output channel. This
can save time because you can directly access the OVP control of
each channel without having to navigate through the menu levels.
If you program an over-voltage protection level that is lower than the
present output voltage, the over-voltage protection circuit will trip and
turn the output off. The front panel status indicator will show OV.
There are two ways to exit the command menu.
Meter
Press
to immediately return to the metering screen. This is the
quickest way to return to metering mode.
Press
to back up one level at a time in the command menu.
This method may be more convenient if there are other menu
commands to be given.
Detailed instructions on how to use the power system’s functions and
capabilities are found in the next chapter. Detailed information about the
SCPI programming commands are found in the Programmer’s Reference
Help file on your Keysight N6700 Product Reference CD.
Press the Help key to obtain additional help about any function control
menu level. Press the Back key to exit the Help menu.
The front panel
indicator comes on if self-test fails or if other
operating problems occur with your instrument. Press the Error key to
display the list of errors. Refer to the N6700 Service Guide for further
information.
The N6700 Service Guide is included as part of the optional Manual Set
(Option 0L1). An electronic copy of the N6700 Service Guide is also
included on the N6700 Product Reference CD-ROM.
