System Settings
System Configuration
The voltage is output through an SMB (m) output connector located on the
left-side panel. See the connector in “Left Side Panel” on page 32.
An optional SMB (f) to BNC (m) bias-tee power cable is available with Keysight
part number: N9910X-713.

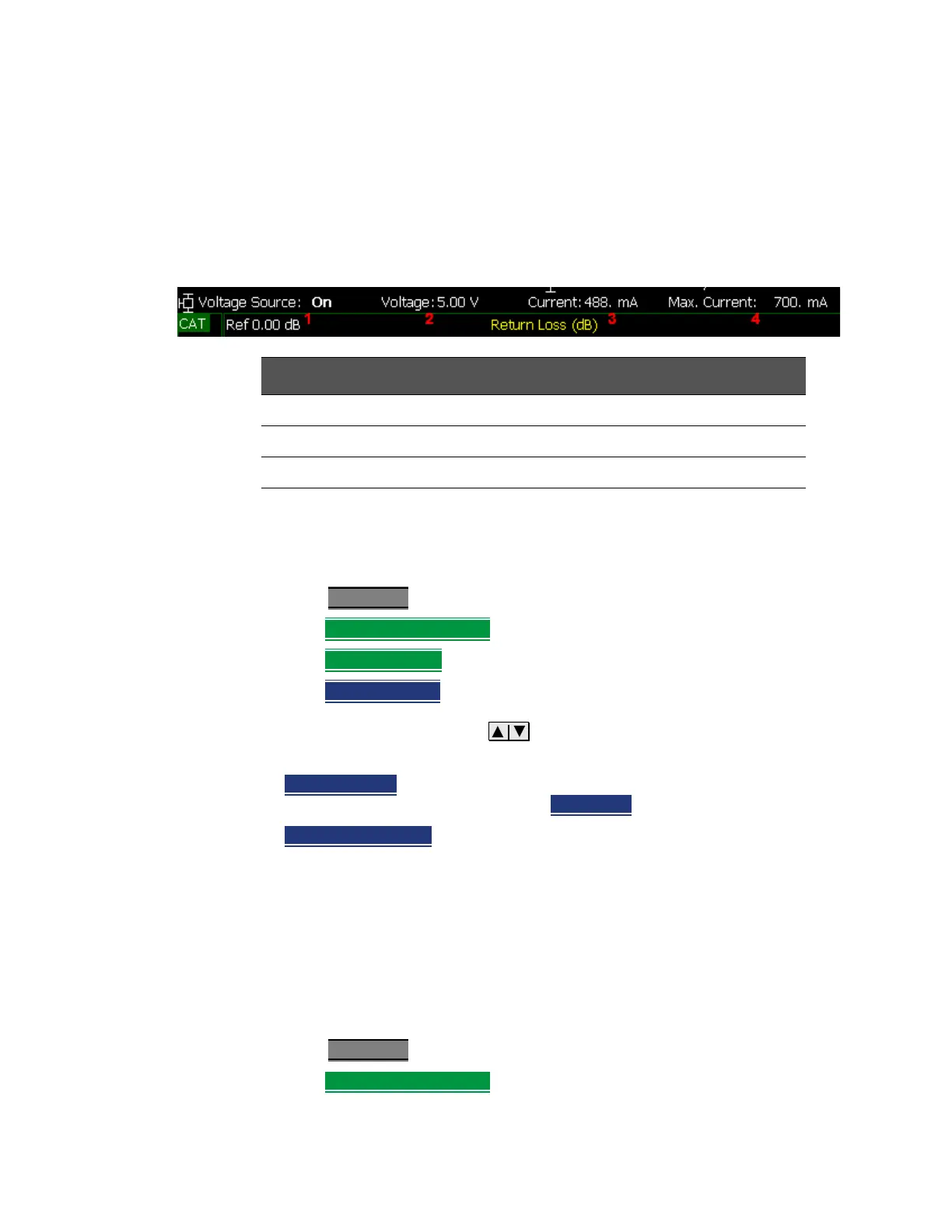

The following status line is provided near the top of the FieldFox screen.
Figure 9-9
How to make Voltage Source settings
—Press System 7
—Then System Configuration.
—Then Voltage Source
.
—Then Source ON OFF
to enable and disable the voltage source output.
— Then Voltage x.xx V Using arrows, the rotary knob, or numeric
keypad, enter a value between 0.001 and 32 volts.
— Clear Overload
If the voltage source becomes ‘TRIPPED’ press to re-enable
the voltage source output. Then set Source ON
.
— Status Line ON OFF
Turn ON and OFF the voltage source status line that
appears near the top of the screen. The status line is always ON while
making Voltage Source settings.
Security Level
For security reasons, you can prevent frequency information from appearing on
the FieldFox while in SA, NA, or CAT modes.
How to set Security Level
—Press System 7
—Then System Configuration
Voltage Source Status Line
1. Voltage source state: ON, OFF, TRIPPED.
2. Voltage setting from 1.00 V to 32.00 V with.01 V resolution.
3. Current: The amount of current (in Amperes) being drawn from the source.
4. Max Current: A conservative estimate of maximum current possible given
the present voltage setting. The actual ‘trip’ level may be slightly different.
To Next Page
