NA (Network Analyzer) Mode
NA Mode Settings
Multi-Trace Configurations
In NA Mode you can display multiple traces on the FieldFox screen.

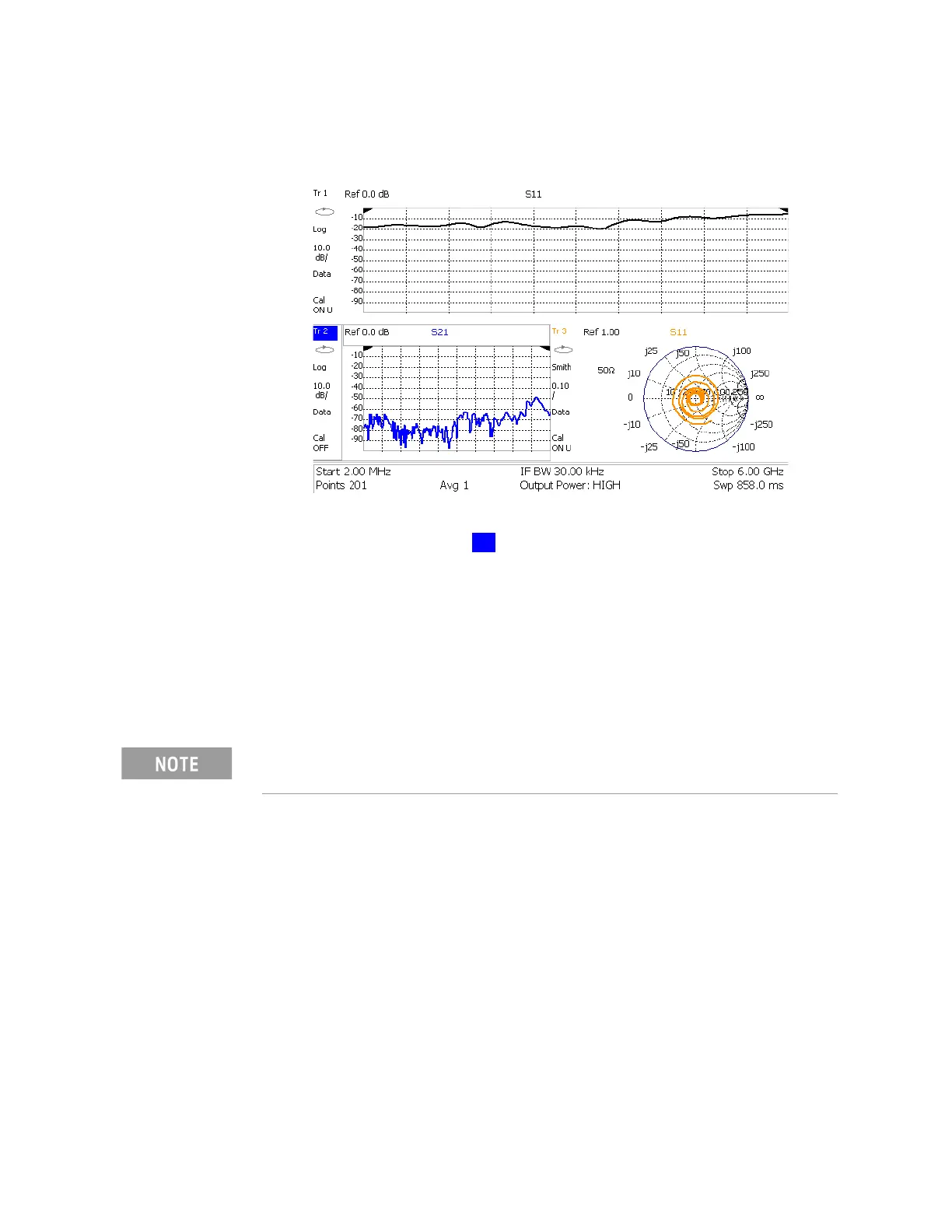

The graphic above shows a x3H configuration. Tr2 is the ACTIVE trace as
indicated by the highlighted Tr2.
Trace Setting Notes
— The Frequency Range, IF BW, Resolution, Average, and Output Power
settings are common for all displayed traces.
— All other trace settings, such as measurement, format, and limit lines, are
applied individually to the ACTIVE trace in the same manner as when a
single trace is present.
— By default, a marker is created on ALL traces. However, they can be created
individually by disabling Coupled Markers. Learn more in “Coupled Markers
(NA Mode)” on page 193.
IMPORTANT! For CAT and NA modes, limit lines do not apply
where F1 = F2.
