8. Turn the top link to balance the
implement. Then, move the imple-
ment to the left and right, and
secure it into the proper position
by tting the telescopic stabilizers
lock pin
9. Conne ct the PTO sha ft to the
tractor`s PTO if necessary. At this
time, stop the engine, lower the
implement onto the ground, and
set the PTO gear neutral.

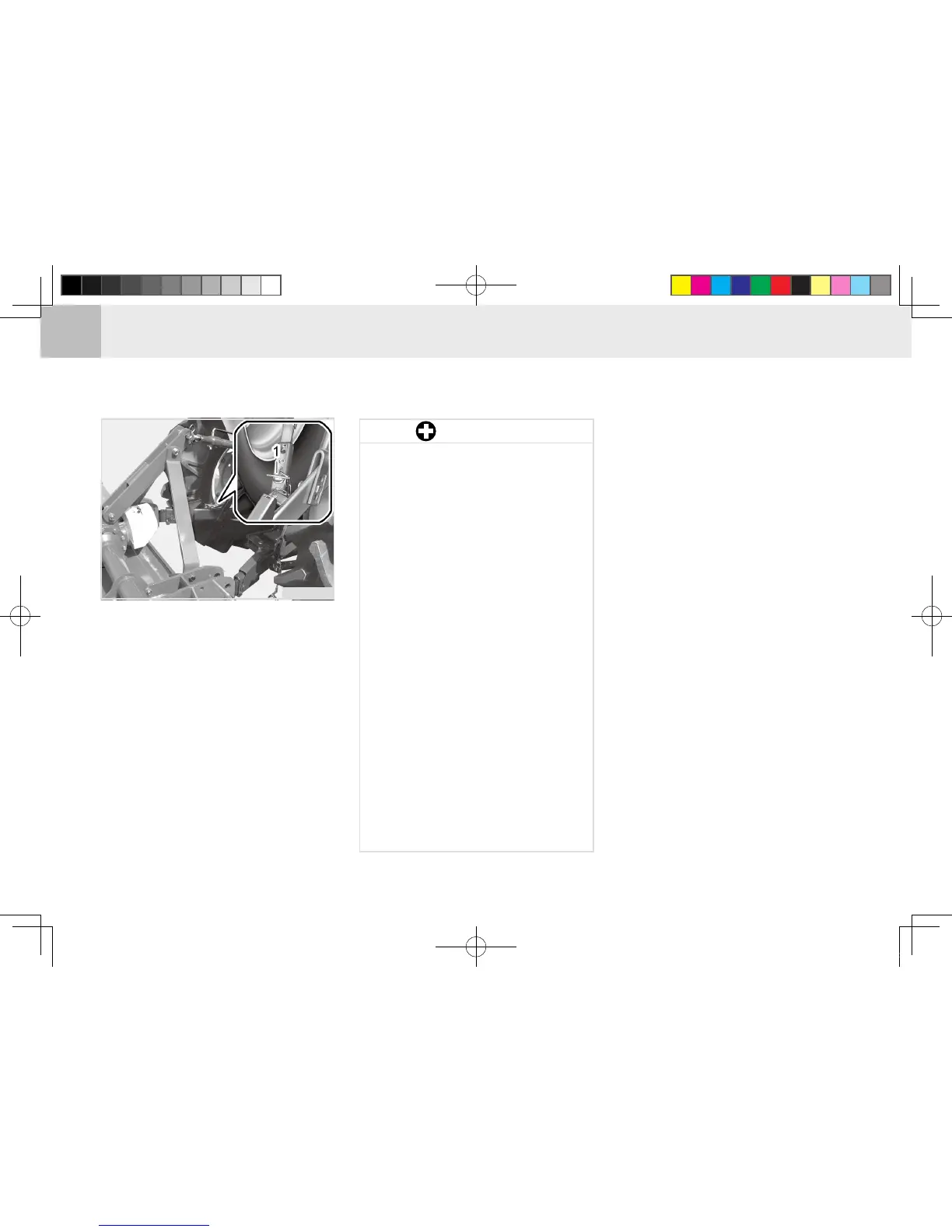

(1) Telescopic Stabilizers Pin
H11O563A
10. Remove the implement in the
reverse order of installation and
use the implement support as
necessary.
Consult your local KIOTI Dealer
for selection of the PTO shaft.
When selecting a PTO shaft,
make sure there is a minimum
of 152 mm (6 inches) of over-
lap of the PTO shaft tu bes
when the shaft is extended to
its maximum working length
between the tractor and the
piece of equipment. Also make
sure there is 76 mm (3 inches)
of clearance between the shaft
tube ends and the universal
joints at both ends when the
PTO shaft is at its shortest
working length between the
tractor piece of equipment. If
not, DO NOT USE the PTO shaft
and contact a KIOTI dealer.
Move the joint back and forth
to check that its lock pin is
properly seated to the groove
of the PTO shaft.
IMPORTANT
