RX6030 / RX7030 / RX8030
1 32 224
5 7 8
20
19 34
6
26
24
23
25
14 13 18 2815
16
3329
30
1217
10
9
11
31 32
2721

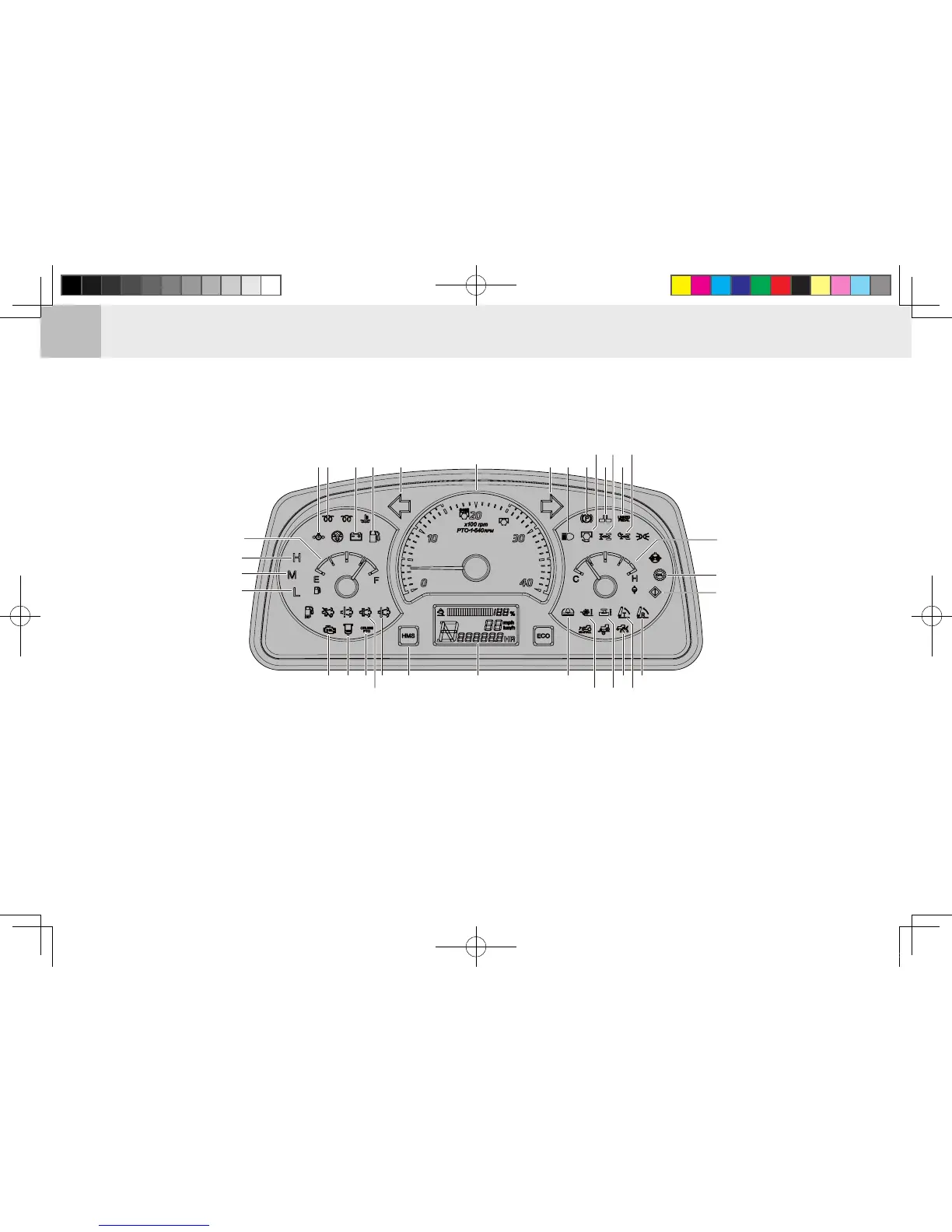

TE3O410A
(1) Engine Oil Pressure Warming Lamp
(2) Battery Charge Warming Lamp
(3) High Beam Indicator
(4) Glow Plug Indicator
(5) Turn Signal Light (LH)
(6) Tachometer
(7) Turn Signal Light (RH)
(8) Brake (One Side) Lamp
(9) Coolant Temperature Gauge
(10) Calibration Lamp
(11) Communication Error
(12) Speed Limit Switch
(13) Water Sensor
(14) Engine Check Lamp
(15) Regeneration Underway Lamp
(16) Regeneration Warning Lamp
(17) Hour meter / Error Code
(18) Cruise PTO
(19) Parking Brake Indicator
(20) 4WD Engaged Indicator
(21) PTO Indicator
(22) Fuel Level Warning Lamp
(23) Low Speed Indicator
(24) Mid Speed Indicator
(25) High Speed Indicator
(26) Fuel Gauge
(27) QT
(28) HMS
(29) Automatic draft operation
(30) Tilling depth operation
(31) Automatic draft operation
(32) Turn-up
(33) Back-up
[ RX8030C RX8030PC ]
