KITO ER2 Series User Manual

47
■
Combination with the Manual Trolley
■
Parts replacement of the Electric Chain Hoist
Remove the Top Hook and replace it with a Connection
Yoke.
●

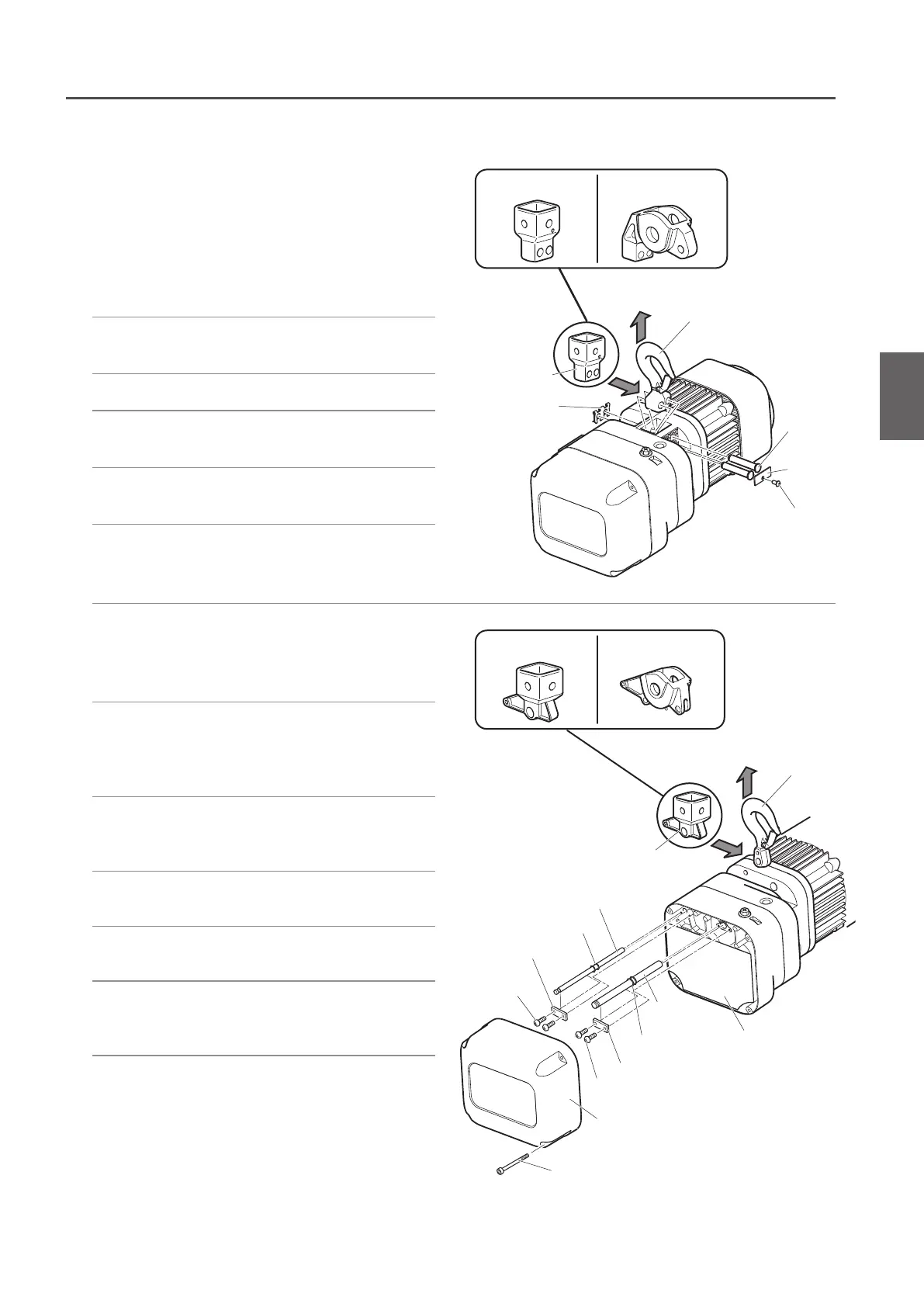

Replacing the Top Hook of Body size ER2-B/C/D/ E
1) Remove the Shaft Retainer Clip using
plier.
2) Remove Socket Bolt from the Shaft
Retainer, and remove the Shaft Retainer.
3) Remove two Connection Shafts.
4) Remove the Top Hook and replace it
with the Connection Yoke.
5) Insert two Connection Shafts into the
hole of the Body size.
6) Mount the Shaft Retainer with Socket
Bolt.
●
Replacing the Top Hook of Body size ER2-F
1) Remove four Socket Bolts and remove
the Controller Cover.
2) Remove pan head screws of the
Connection Shaft and the Fixing Shaft
(two screws each), and remove the Shaft
Retainer.
3) Pinch the respective upper ends of the
Connection Shaft and the Fixing Shaft
and pull out them.
4) Remove the Top Hook and replace it with the
Suspender T.
5) Insert the Connection Shaft and Fixing
Shaft into the mounting hole.
6) Fix the Shaft Retainer of the Connection
Shaft and the Fixing Shaft with pan head
screws (two screws each).
7) Mount the Controller Cover with four
pan head screws.
Connection
Shaft
Shaft
Retainer
Shaft Retainer
Clip
Connection
Shaft
Bracing Shaft
Controller Cover
Socket Bolt
O ring
O ring
Shaft Retainer
Shaft Retainer
Pan head screw
Pan head screw
Panel
Top Hook
Socket Bolt
Top Hook
Connection Yoke
Manual Trolley
Connection Yoke
For Double Chain Type
Manual Trolley For Double Chain Type
(to be continued)
Assembling Combination with the Manual Trolley
1

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
