Kleemann GENIUS20 User Manual

170
MA06-03-1-01

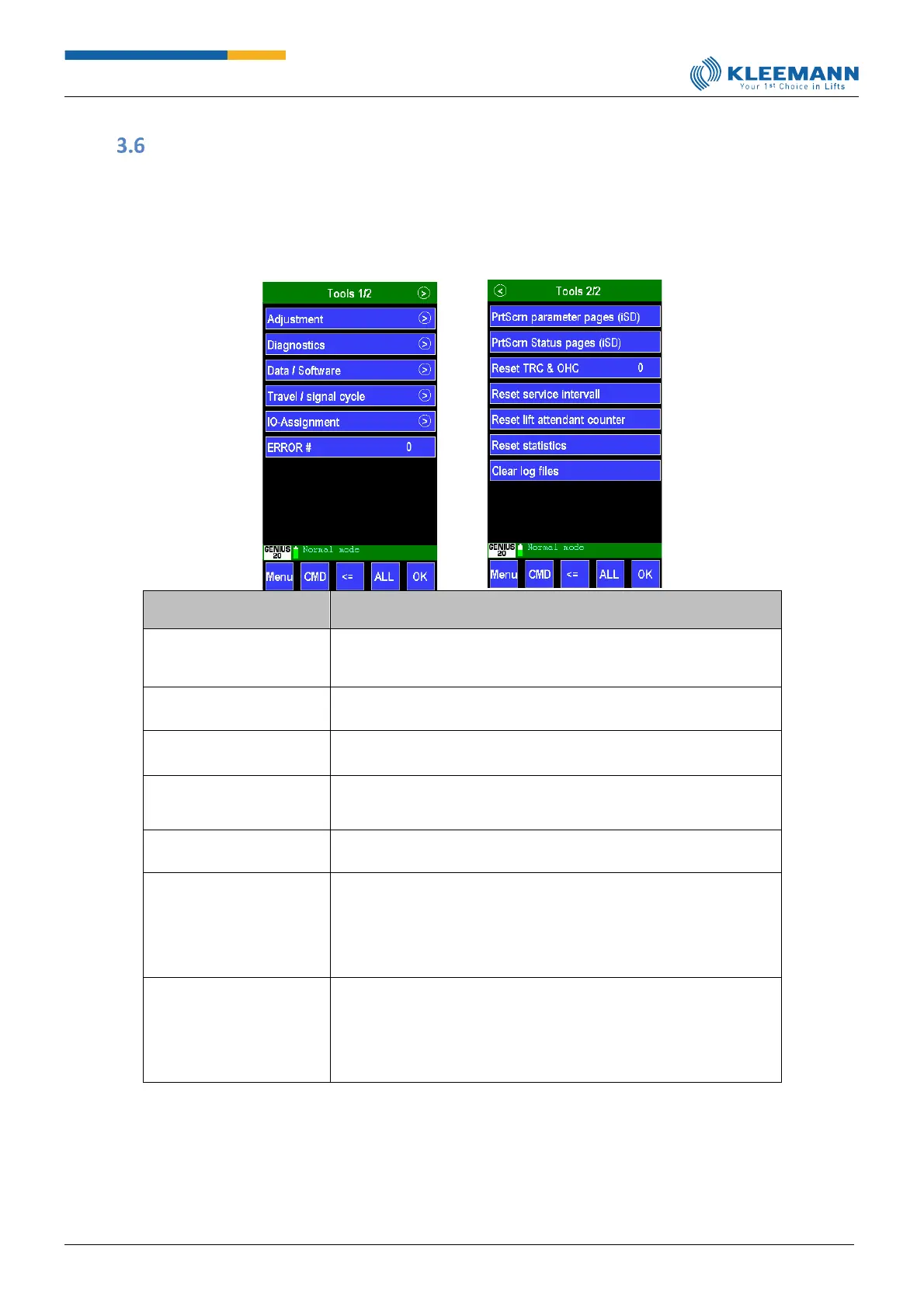

Menu
Tools
All commands can be executed by numerical codes. Commonly used functions can be called directly
for simplification. Furthermore, you can select pages to analyse the speed profile or the travel curve
with travel signal indication.
[Direct access: CMD -> 7012 or 7022 -> OK]
Parameter
[Direct access]
Description
Adjustment
[CMD -> 7013 or 7014 ->
OK]
For further information regarding this submenu, check the
corresponding chapter.
Diagnostics
[CMD -> 7015-> OK]
For further information regarding this submenu, check the
corresponding chapter.
Data/Software
[CMD -> 7016-> OK]
For further information regarding this submenu, check the
corresponding chapter.
Travel / signal cycles
[CMD -> 7020-> OK]
For further information regarding this submenu, check the
corresponding chapter.
IO assignment
[CMD -> 7153-> OK]
For further information regarding this submenu, check the
corresponding chapter.
PrtScrn parameter pages
(iSD)
Internal parameter: By selecting this button, all parameter
pages of the controller are stored to the SD card (iSD) of the
hand terminal (HT) as images (BMP). Precondition is that an SD
card has been plugged into the HT and that the HT has suitable
software. There are currently 226 different parameter pages.
PrtScrn Status pages (iSD)
Internal parameter: By selecting this button, all status pages of
the controller are stored to the SD card (iSD) of the hand
terminal (HT) as images (BMP). Precondition is that an SD card
has been plugged into the HT and that the HT has suitable
software.
