3.5 Installing the flow switch
The flow switch sensor is factory delivered together with a Ø 50mm T shape collar for
mounting. To fix it, cut the pipe to a length of 30 mm. It is very important to respect the right
direction by checking the arrow representing the water stream flow.
Figure 12. Flow switch sensor on Ø 50mm T shape collar on horizontal pipe
Figure 13. Flow switch sensor on Ø 50mm T shape collar on vertical pipe
For Ø 63mm, specify when ordering (the flow switch and T shape collar are specicifc). Screw
the water flow switch in such a way that the sensor is correctly positioned in relation with the
water stream flow (contact open when the water is not circulating).

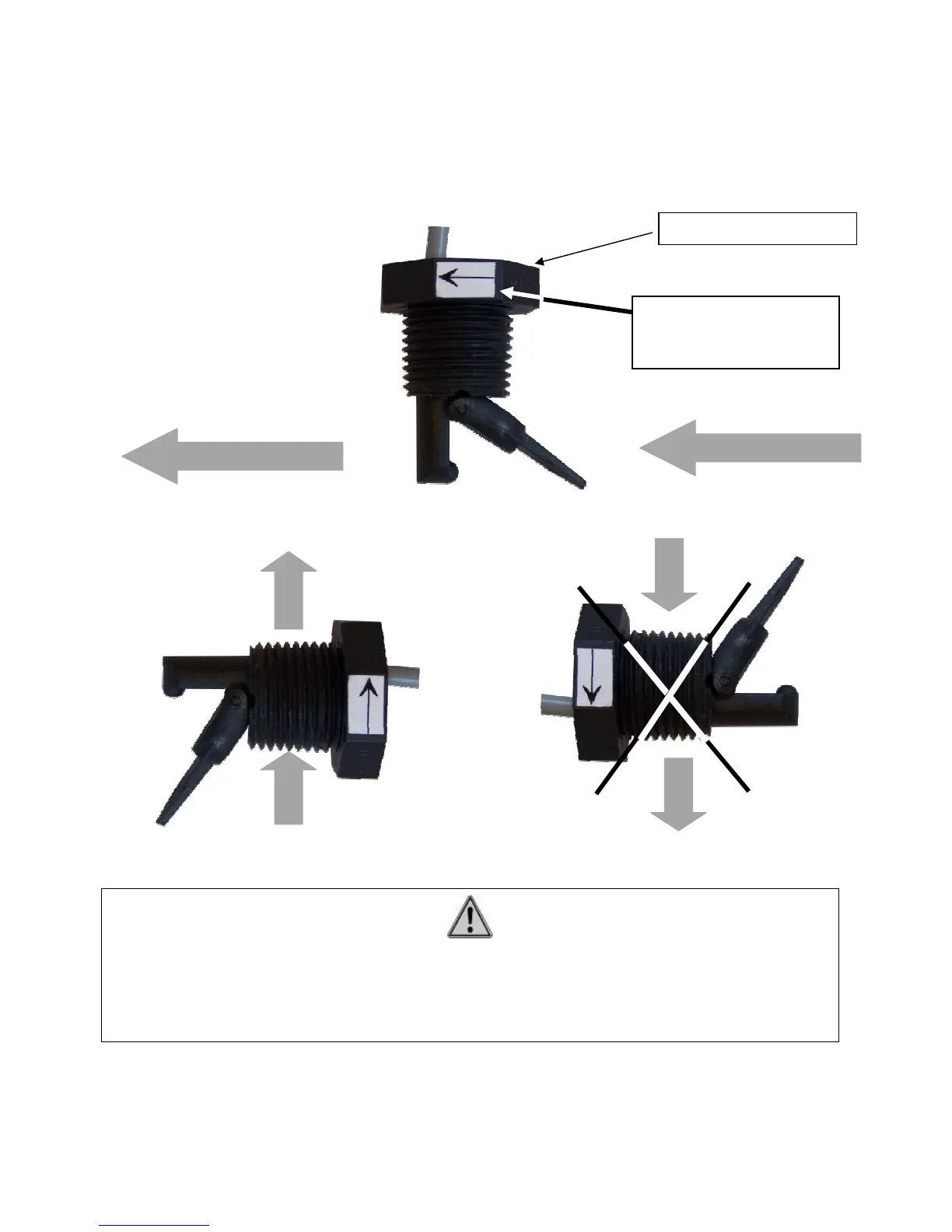

Flow switch sensor
Respect the arrow
direction on the flow
switch
IMPORTANT : Respect the arrow direction from bottom to top.
It is not possible to position the T shape collar in downward water stream flow
