3.6 Connecting the pipes of the metering pumps

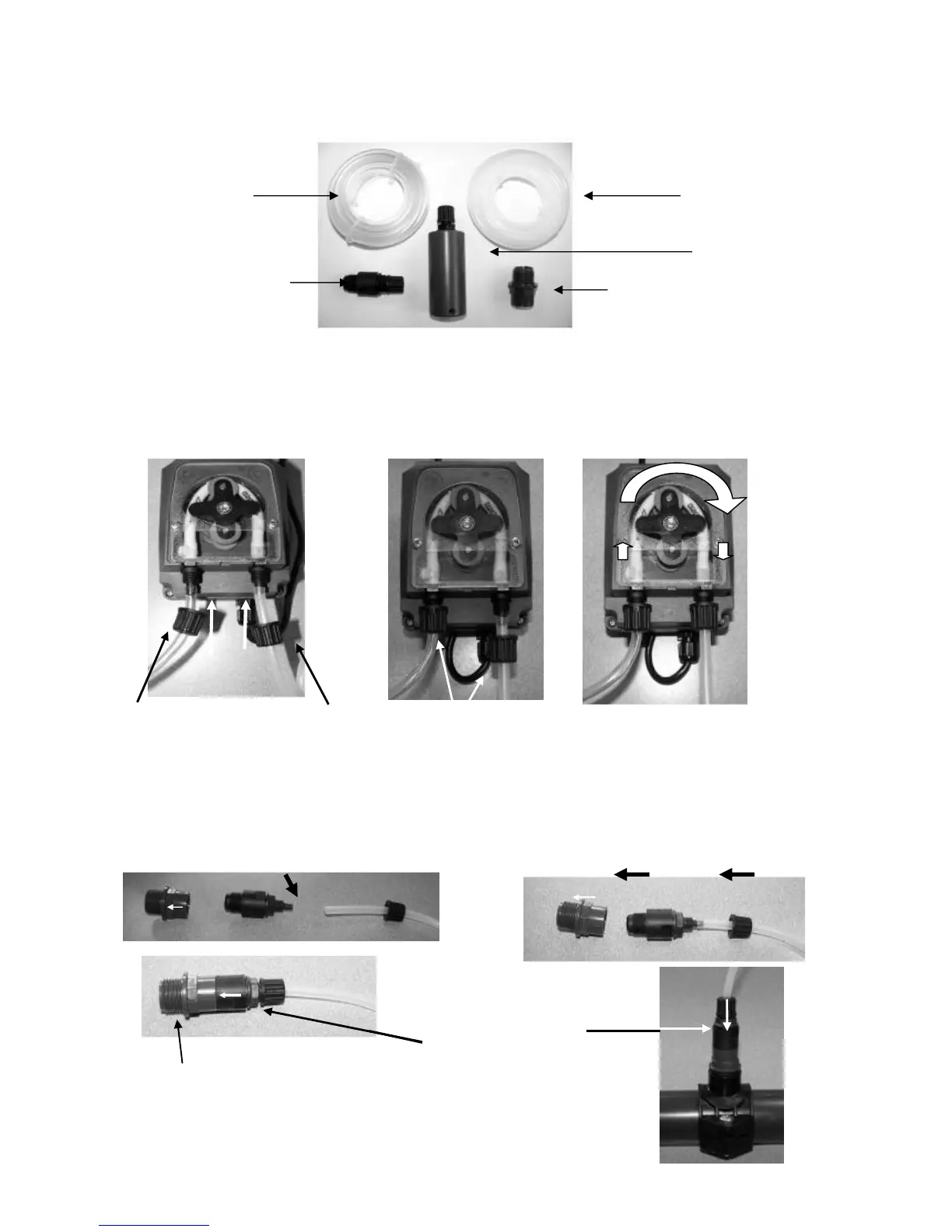

Figure 14. Metering pump kit presentation
Insert both pipes onto the metering pump (check the arrows showing the direction of input of
the water treatment products)
Figure 15. Mounting metering pumps (see manual for metering pump)
Put the rigid, semi-opaque pipe (PE) onto the injector valve, then screw it to the reducer ½ -
3/8 that will be screwed onto the holding collar (apply Teflon tape to seal).
Figure 16. Mounting injector valve
Apply Teflon tape to seal
Check direction
of the arrow
Insert the transparent
flexible pipe (PVC)
from the tank
Insert the rigid semi-
opaque pipe (PE) for
connection to the
injector valve
Tighten the
2 nuts
Arrows showing
direction of input
of the products
Transparent
flexible
pipe (PVC)
Rigide semi-
opaque pipe
(PE)
Injector valve
Drawing strainer
Reducer ½ - 3/8
