3.3 Hydraulic accessories positioning
3.3.1 Holding collars (optional)
Install the collars directly onto the existing pipe. There are 2 models: Ø 50mm or Ø 63mm.
Probes must be relatively close to each other.

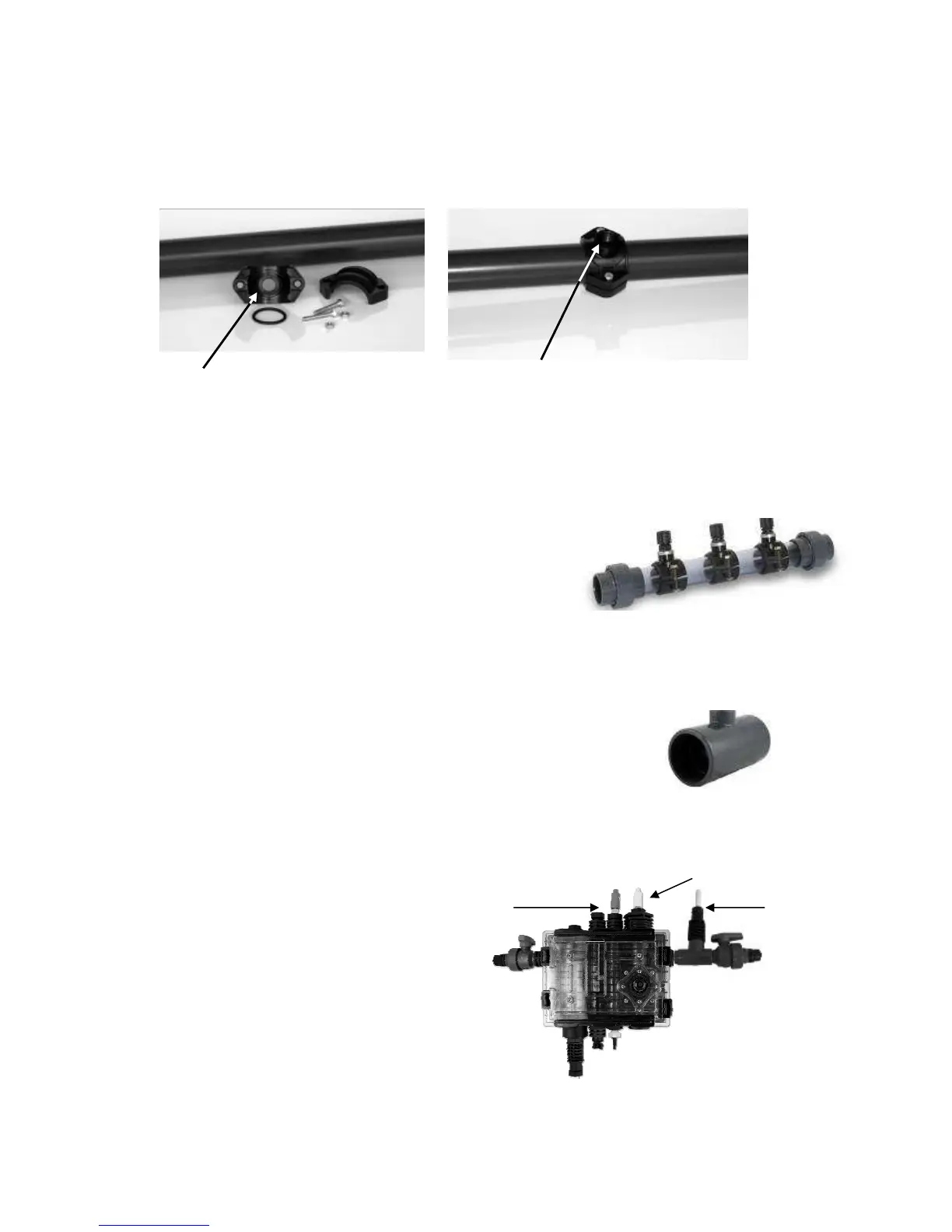

Figure 6. Fitting holding collars
3.3.2 The multi-sensor tube (optional)
Cut the pipe to a length of 440 mm for Ø 50 mm multi-
sensor tubes and 550 mm for Ø 63 mm ones.
If there is an elbow bend on the filter circuit, it must be at
least 10cm from the multi-sensor tube.
Figure 7. Multi-sensor tube
3.3.3 T shape collar (optional)
Cut the pipe to a length of 55 mm for Ø 50 mm T shape collars
and 65 mm for Ø 63 mm ones.
Figure 8. T shape collar
3.3.4 Chamber of analysis (optional)
The chamber (Ref. KL20-A1) is screwed
onto the wall. Read carefully the installation
manual to ensure correct mounting and
probe installation.
ORP probe
pH probe
Water
temperature
sensor
Drill a 13mm hole for the probes
and a 8mm one for the injections
Put the seal into place
