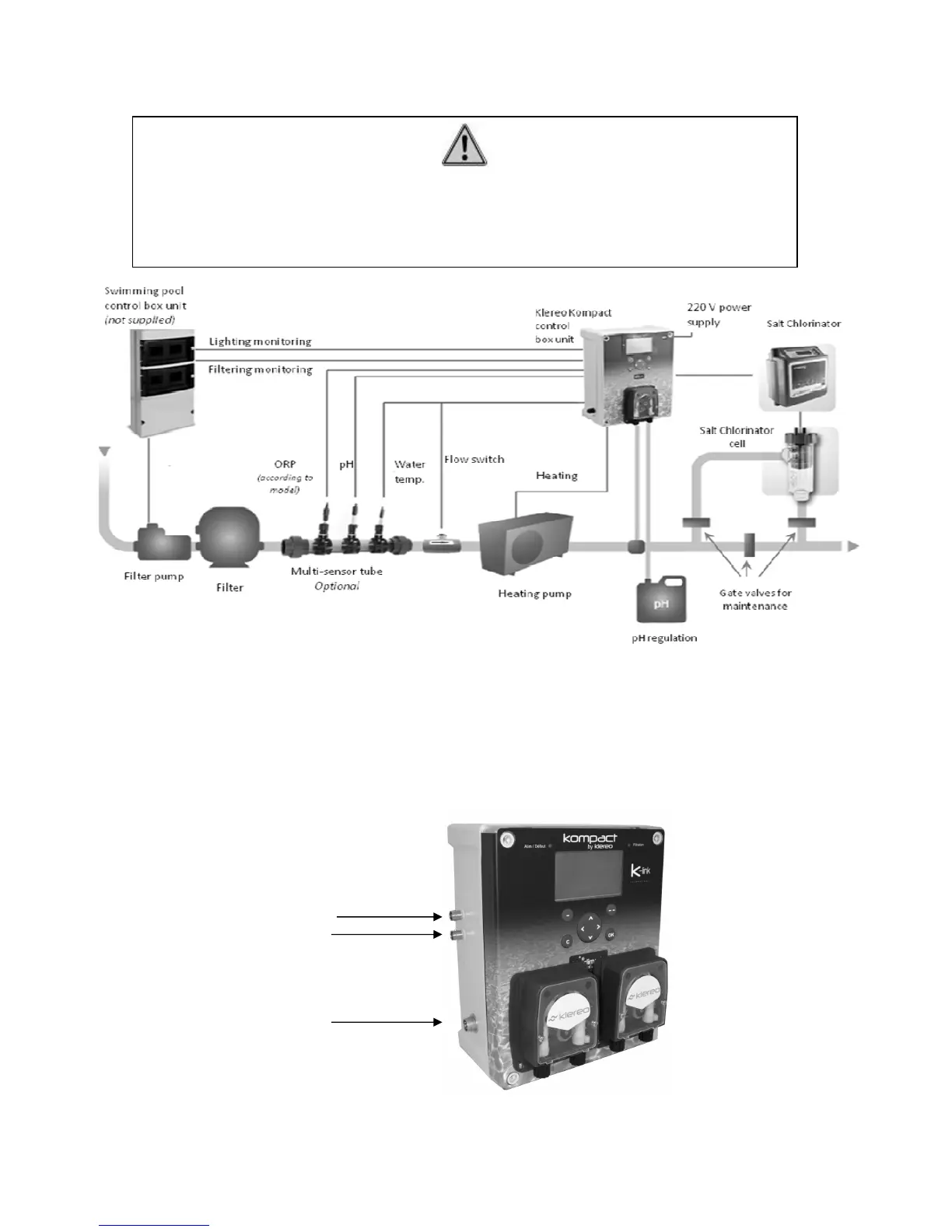

Figure 24. Installation of the Salt Chlorinator cell
4. Electrical installation
4.1 Connecting the sensors
Ph and ORP probes, water temperature and flow switch sensors must be connected to the
appropriate inputs on the Kompact control box unit as shown below:
Figure 25. Connecting the sensors to the Kompact control box unit
ORP probe
pH probe
Connector for the
flow switch and water
temperature sensors
IMPORTANT
The 3 gate valves installed on the by-pass are only used to make
maintenance easier. They must remain imperatively fully open in order to
have the maximum flow going through the cell.
