4.2 Connecting the power supply

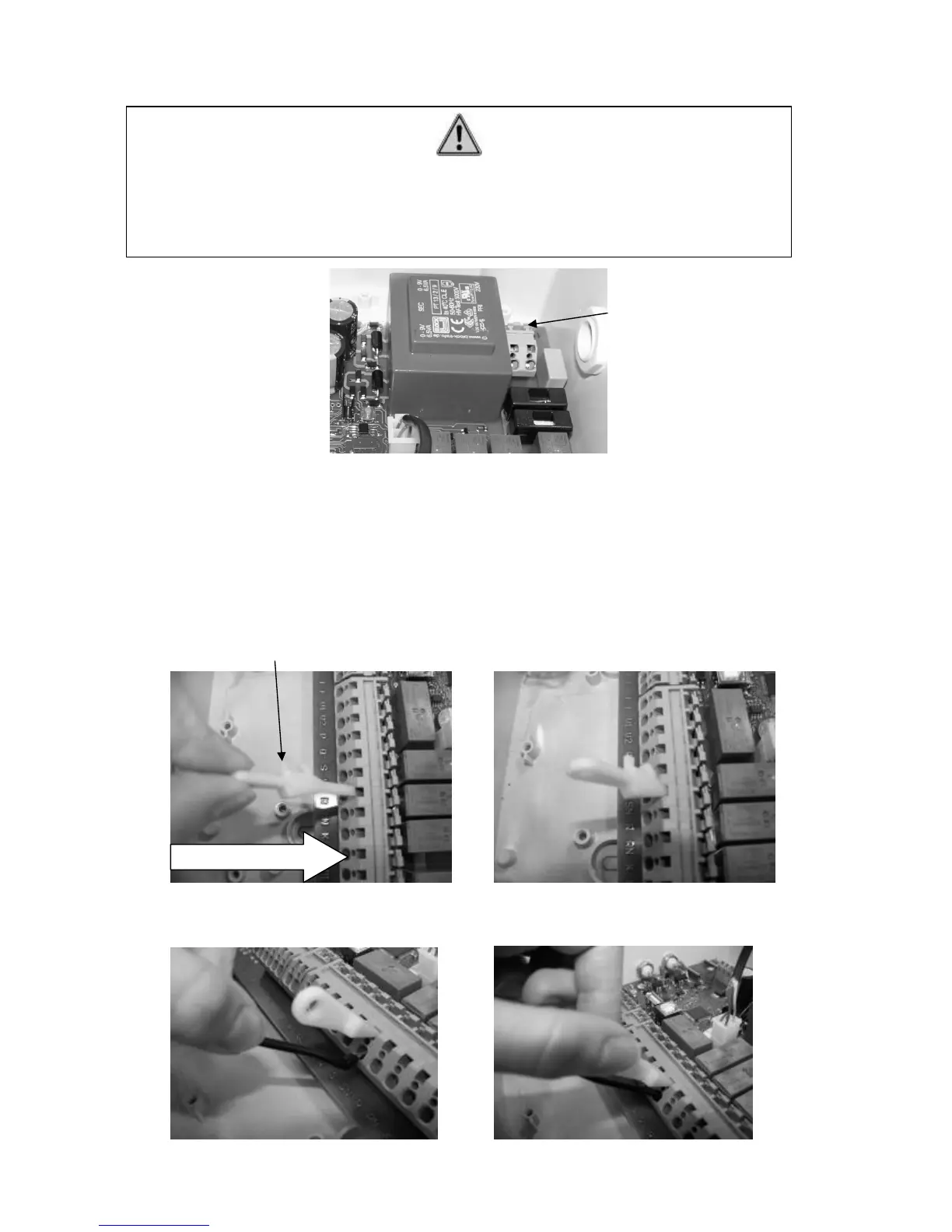

Figure 26. Connecting the power supply to the Kompact control box unit
The control box unit must be connected to the main permanently. The power supply must not
be a slave to filtering.
4.3 Connecting the inputs outputs
A specific tool is supplied within the kit to connect the wires onto the control box unit
connectors. A small screwdriver can also be used. The connection is done as shown below.
Insert the tool while respecting the direction of use. A little sound tells you that the tool is in
the right place.
IMPORTANT
The Kompact salt and active Oxygen kits do not use ORP probe. In order to
avoid measure disturbances, do not remove the 50 Ohm plug connected to
the control box unit.
