Klereo Kompact installation manual V 3
7

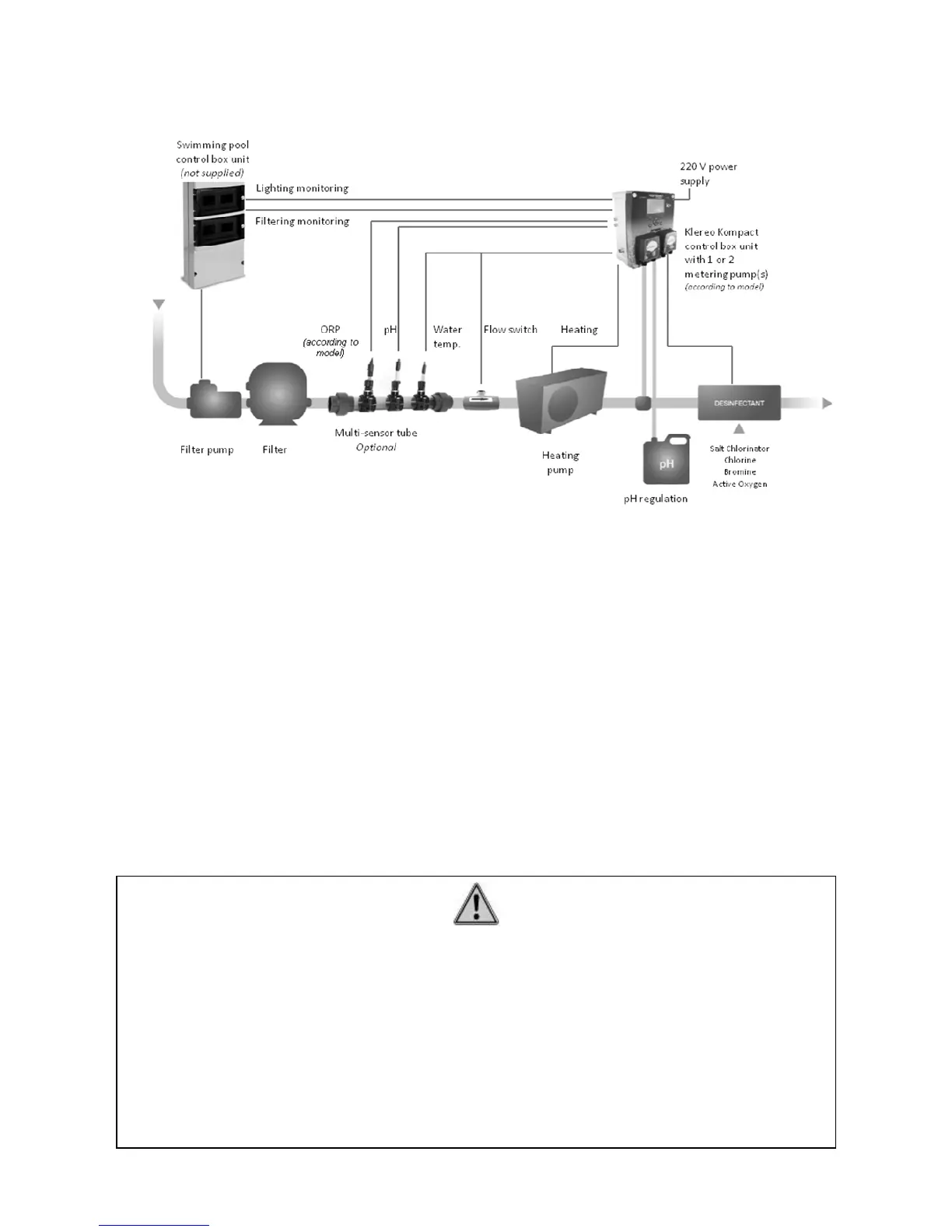

3.2 Installation diagram:
Figure 5. Kompact installation diagram
The flow switch and water temperature sensor as well as pH and ORP probes must be
installed:
o After the filter
o Before the heating system (Heating pump or heat exchanger) as well as before
the water treatment injection points or the Salt Chlorinator cell.
Water treatment injection points and the Salt Chlorinator cell must be located after all pool
control systems and equipments, in the water flow in order not to cause any damage to them.
Accessories to fix the probes and liquid water treatment (pH, liquid Chlorine and active
Oxygen) injections are optional with 4 solutions to select:
• Holding collars for probes and injections
• T shape collar for injections
• A multi-sensor tube for probes
• A chamber of analysis (refer to the specific manual)
for the probes
IMPORTANT
- Maximum distance between the pH and ORP probes must not exceed 20cm
- The probes must not be installed near the 220V cable or the filter pump, to avoid
interference from electromagnetic fields on the measurements (recommended
distance 50 cm).
- Minimum distance between the water treatment injection points must not be less
than 40cm
- We advise to use T shape collars for liquid water treatment injections: pH, liquid
Chlorine or active Oxygen.
